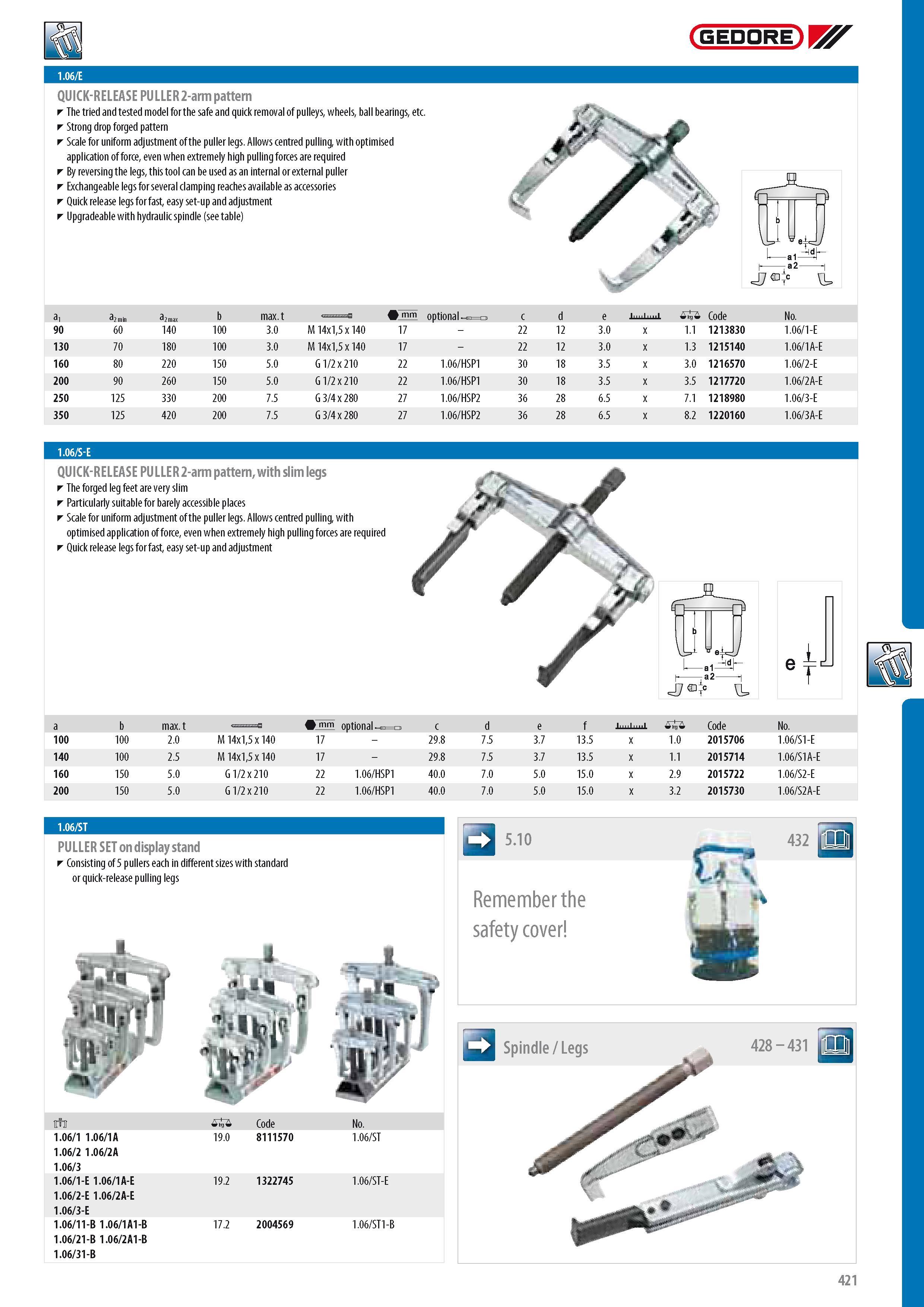

GEDORE QUICK-RELEASE PULLER 2-arm pattern The tried and tested model forthe safe and quick removal of pulleys wheels ball bearings etc. Strong drop forged pattern Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required By reversing the legs this tool can be used as an internal or external puller Exchangeable legs for several clamping reaches available as accessories Quick release legs for fast easy set-up and adjustment Upgradeable with hydraulic spindle (see table) a1 a2 min a2 urn b max. mm optional c d e -i0 Code No. 90 60 140 100 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.1 1213830 1.06 1-E 130 70 180 100 3.0 M 14x15 x 140 17 - 22 12 3.0 x 1.3 1 2 1 5 1 40 1.06 1A-E 160 80 220 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 x 3.0 1216570 1.06 2-E 200 90 260 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 18 3.5 x 3.5 1217720 1.06 2A-E 250 125 330 200 7.5 G 3 4x280 27 1.06 HSP2 36 28 6.5 x 7.1 1218980 1.06 3-E 350 125 420 200 7.5 G 3 4x280 27 1.06 HSP2 36 28 6.5 x 8.2 1220160 1.06 3A-E QUICK-RELEASE PULLER 2-arm pattern with slim legs The forged leg feet are very slim Particularly suitable for barely accessible places Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Quick release legs for fast easy set-up and adjustment 1 T a b max. a optional c d e f inniniM 0 Code No. 100 100 2.0 M 14x15 x 140 17 - 29.8 7.5 3.7 13.5 x 1.0 2015706 1.06 S1-E 140 100 2.5 M 14x15 x 140 17 - 29.8 7.5 3.7 13.5 x 1.1 2015714 1.06 S1A-E 160 150 5.0 G 1 2 x 210 22 1.06 HSP1 40.0 7.0 5.0 15.0 x 2.9 2015722 1.06 S2-E 200 150 5.0 G 1 2 x 210 22 1.06 HSP1 40.0 7.0 5.0 15.0 x 3.2 2015730 1.06 S2A-E 5.10 A -i0 Code No. 1.06 1 1.06 1 A 1 .06 2 1 .06 2A 1 .06 3 19.0 8111570 1.06 ST 1.06 1-E 1.06 1 A-E 1.06 2-E 1.06 2A-E 1 .06 3-E 19.2 1 322745 1.06 ST-E 1.06 11-B 1.06 1 A1-B 1.06 21-B 1.06 2A1-B 1.06 31-B 17.2 2004569 1.06 ST1-B Remember the safety cover 432 A Spindle Legs . 428 - 431 n 421
