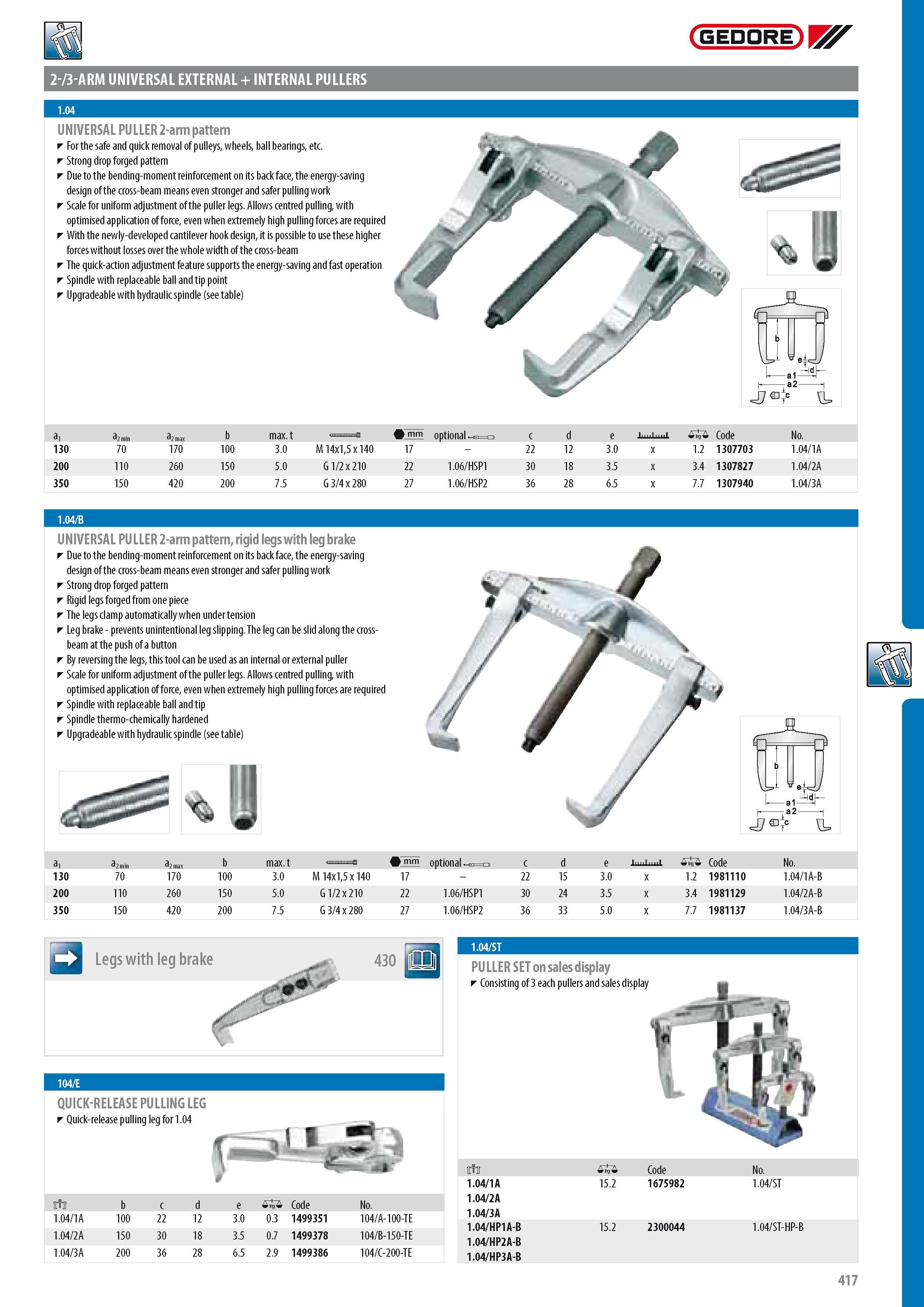

2- 3-ARM UNIVERSAL EXTERNAL + INTERNAL PULLERS GEDORE UNIVERSAL PULLER 2-arm pattern For the safe and quick removal of pulleys wheels ball bearings etc. Strong drop forged pattern Due to the bending-moment reinforcement on its back face the energy-saving design of the cross-beam means even stronger and safer pulling work Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required With the newly-developed cantilever hook design it is possible to use these higher forces without losses over the whole width of the cross-beam The quick-action adjustment feature supports the energy-saving and fast operation Spindle with replaceable ball and tip point Upgradeable with hydraulic spindle (see table) a. a2 min a2 maX b max. mm optional c d e 0 Code No. 130 70 170 100 3.0 M 14x15 x140 17 - 22 12 3.0 x 1.2 1307703 1.04 1A 200 110 260 150 5.0 G 1 2x210 22 1.06 HSP1 30 18 3.5 x 3.4 1307827 1.04 2A 350 150 420 200 7.5 G 3 4x280 27 1.06 HSP2 36 28 6.5 x 7.7 1307940 1.04 3A UNIVERSAL PULLER 2-arm pattern rigid legs with leg brake Due to the bending-moment reinforcement on its back face the energy-saving design of the cross-beam means even stronger and safer pulling work Strong drop forged pattern Rigid legs forged from one piece The legsclampautomaticallywhen undertension Leg brake - prevents unintentional leg slipping. The leg can be slid along the crossbeam at the push of a button By reversing the legs this tool can be used as an internal or external puller Scale for uniform adjustment of the puller legs. Allows centred pulling with optimised application of force even when extremely high pulling forces are required Spindle with replaceable ball and tip Spindle thermo-chemically hardened Upgradeable with hydraulic spindle (see table) a1 a2 min a2 max b max. mm optional c d e . 0 Code No. 130 70 170 100 3.0 M 14x15 x 140 17 - 22 15 3.0 x 1.2 1981110 1.04 1A-B 200 110 260 150 5.0 G 1 2 x 210 22 1.06 HSP1 30 24 3.5 x 3.4 1981129 1.04 2A-B 350 150 420 200 7.5 G 3 4x280 27 1.06 HSP2 36 33 5.0 x 7.7 1981137 1.04 3A-B 3 Legs with leg brake PULLER SET on sales display Consisting of 3 each pullers and sales display QUICK-RELEASE PULLING LEG Quick-release pulling leg for 1.04 A b c d e 0 Code No. 1.04 1A 100 22 12 3.0 0.3 1 499351 104 A-100-TE 1.04 2A 150 30 18 3.5 0.7 1 499378 104 B-150-TE 1.04 3A 200 36 28 6.5 2.9 1499386 104 C-200-TE A 0 Code No. 1 .04 1 A 15.2 1675982 1.04 ST 1 .04 2A 1 .04 3A 1.04 HP1A-B 15.2 2300044 1.04 ST-HP-B 1.04 HP2A-B 1.04 HP3A-B 1.04 1.04 B 1.04 ST 417
