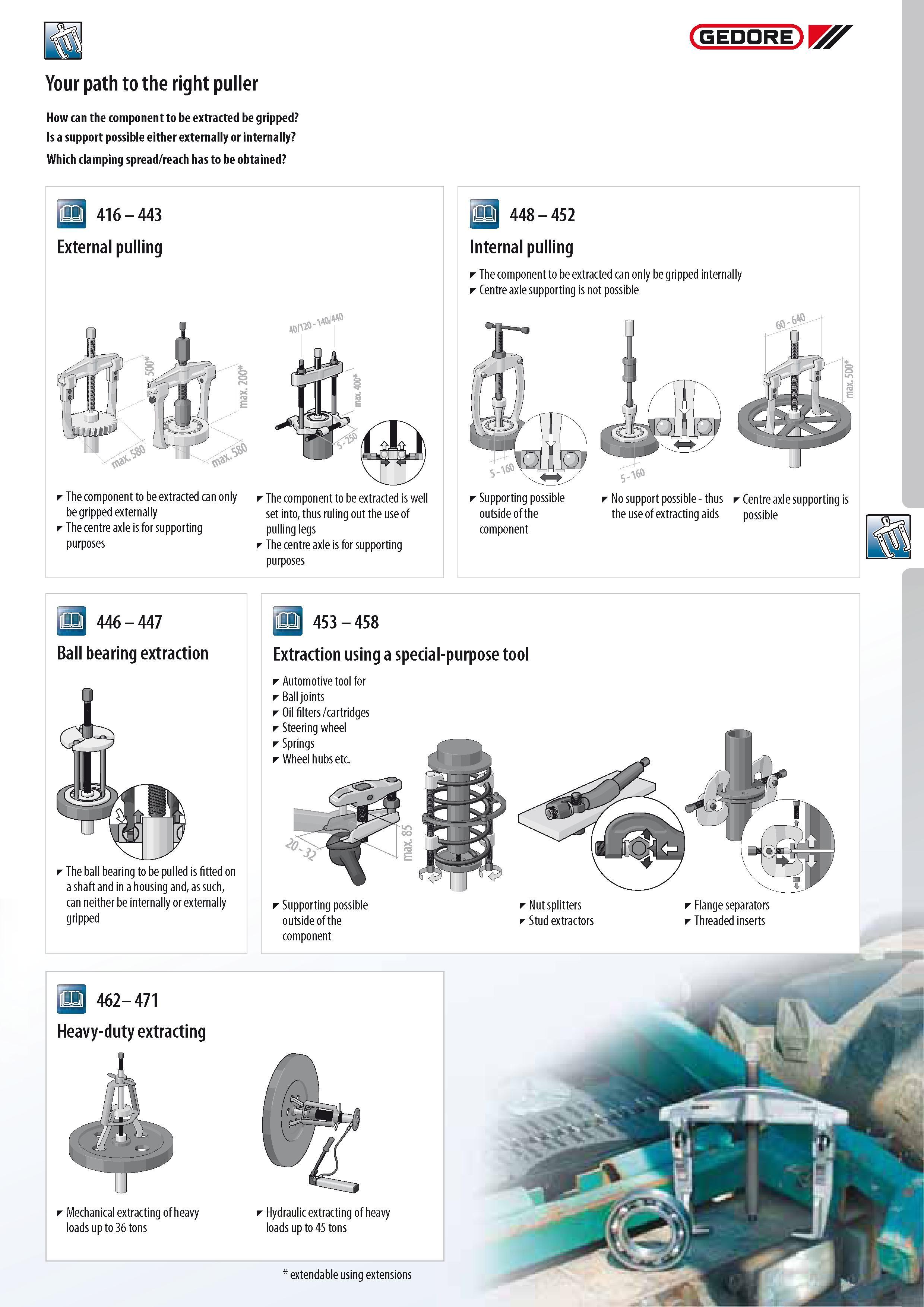

GEDORE Your path to the right puller How can the component to be extracted be gripped Is a support possible either externally or internally Which clamping spread reach has to be obtained dU 416 - 443 External pulling o-V A The component to be extracted can only The component to be extracted is well be gripped externally set into thus ruling out the use of The centre axle is for supporting pulling legs purposes The centre axle is for supporting purposes H 448 - 452 Internal pulling The component to be extracted can only be gripped internally Centre axle supporting is not possible Supporting possible outside of the component No support possible - thus Centre axle supporting is the use of extracting aids possible fH 446 - 447 Ball bearing extraction The ball bearing to be pulled is fitted on a shaft and in a housing and as such can neither be internally or externally gripped DU 453 - 458 Extraction using a special-purpose tool Automotive tool for Ball joints Oil filters cartridges Steering wheel Springs Wheel hubs etc. Supporting possible outside of the component Nut splitters Stud extractors Flange separators Threaded inserts H 462- 471 Heavy-duty extracting Mechanical extracting of heavy loads up to 36 tons Hydraulic extracting of heavy loads up to 45 tons extendable using extensions
