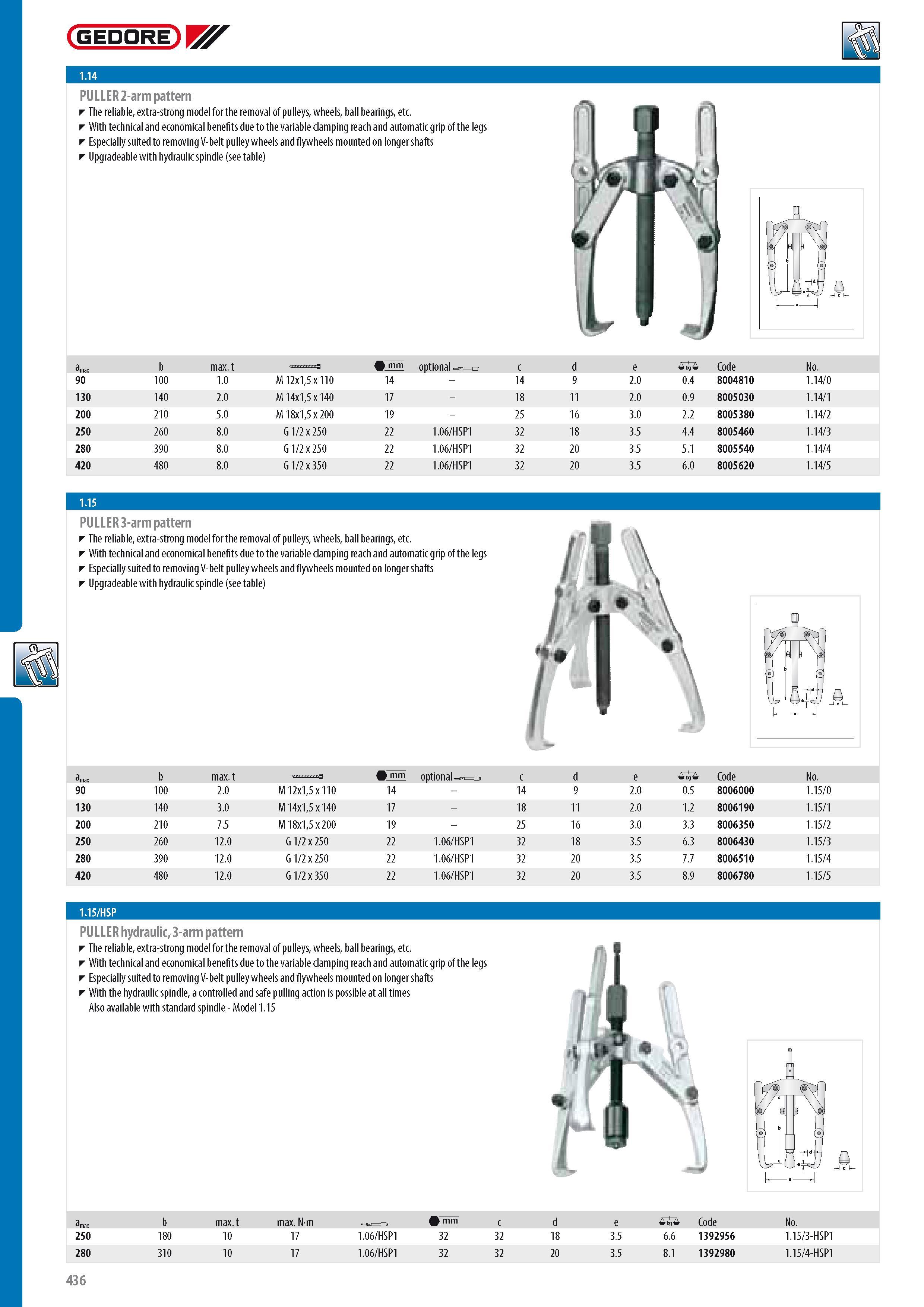

438 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.436

Каталог GEDORE 2014 Слесарный инструмент Стр. 436 0438 ENG Lab2u

GEDORE PULLER 2-arm pattern The reliable extra-strong model forthe removal of pulleys wheels ball bearings etc. With technical and economical benefits due to the variable clamping reach and automatic grip of the legs Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts Upgradeable with hydraulic spindle (see table) amax b max. mm optional c d e -0 Code No. 9m0ax 100 1.0 M 12x15 x110 14 - 14 9 2.0 0.4 8004810 1.14 0 130 140 2.0 M 14x15 x 140 17 - 18 11 2.0 0.9 8005030 1.14 1 200 210 5.0 M 18x15 x 200 19 - 25 16 3.0 2.2 8005380 1.14 2 250 260 8.0 G1 2x250 22 1.06 HSP1 32 18 3.5 4.4 8005460 1.14 3 280 390 8.0 G1 2x250 22 1.06 HSP1 32 20 3.5 5.1 8005540 1.14 4 420 480 8.0 G 1 2 x 350 22 1.06 HSP1 32 20 3.5 6.0 8005620 1.14 5 PULLER 3-arm pattern The reliable extra-strong model forthe removal of pulleys wheels ball bearings etc. With technical and economical benefits due to the variable clamping reach and automatic grip of the legs Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts Upgradeable with hydraulic spindle (see table) amax b max. mm optional c d e -0 Code No. 9m0ax 100 2.0 M 12x15 x110 14 - 14 9 2.0 0.5 8006000 1.15 0 130 140 3.0 M 14x15 x 140 17 - 18 11 2.0 1.2 8006190 1.15 1 200 210 7.5 M 18x15 x 200 19 - 25 16 3.0 3.3 8006350 1.15 2 250 260 12.0 G 1 2 x 250 22 1.06 HSP1 32 18 3.5 6.3 8006430 1.15 3 280 390 12.0 G 1 2 x 250 22 1.06 HSP1 32 20 3.5 7.7 8006510 1.15 4 420 480 12.0 G 1 2 x 350 22 1.06 HSP1 32 20 3.5 8.9 8006780 1.15 5 PULLER hydraulic 3-arm pattern The reliable extra-strong model forthe removal of pulleys wheels ball bearings etc. With technical and economical benefits due to the variable clamping reach and automatic grip of the legs Especially suited to removing V-belt pulley wheels and flywheels mounted on longer shafts With the hydraulic spindle a controlled and safe pulling action is possible at all times Also available with standard spindle - Model 1.15 amax 250 280 b 180 310 max. 10 10 max. Nm 17 17 1.06 HSP1 1.06 HSP1 mm 32 32 c 32 32 d 18 20 e 3.5 3.5 0 Code 6.6 1392956 8.1 1392980 No. 1.15 3-HSP1 1.15 4-HSP1 436
