448 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.446

Каталог GEDORE 2014 Слесарный инструмент Стр. 446 0448 ENG Lab2u

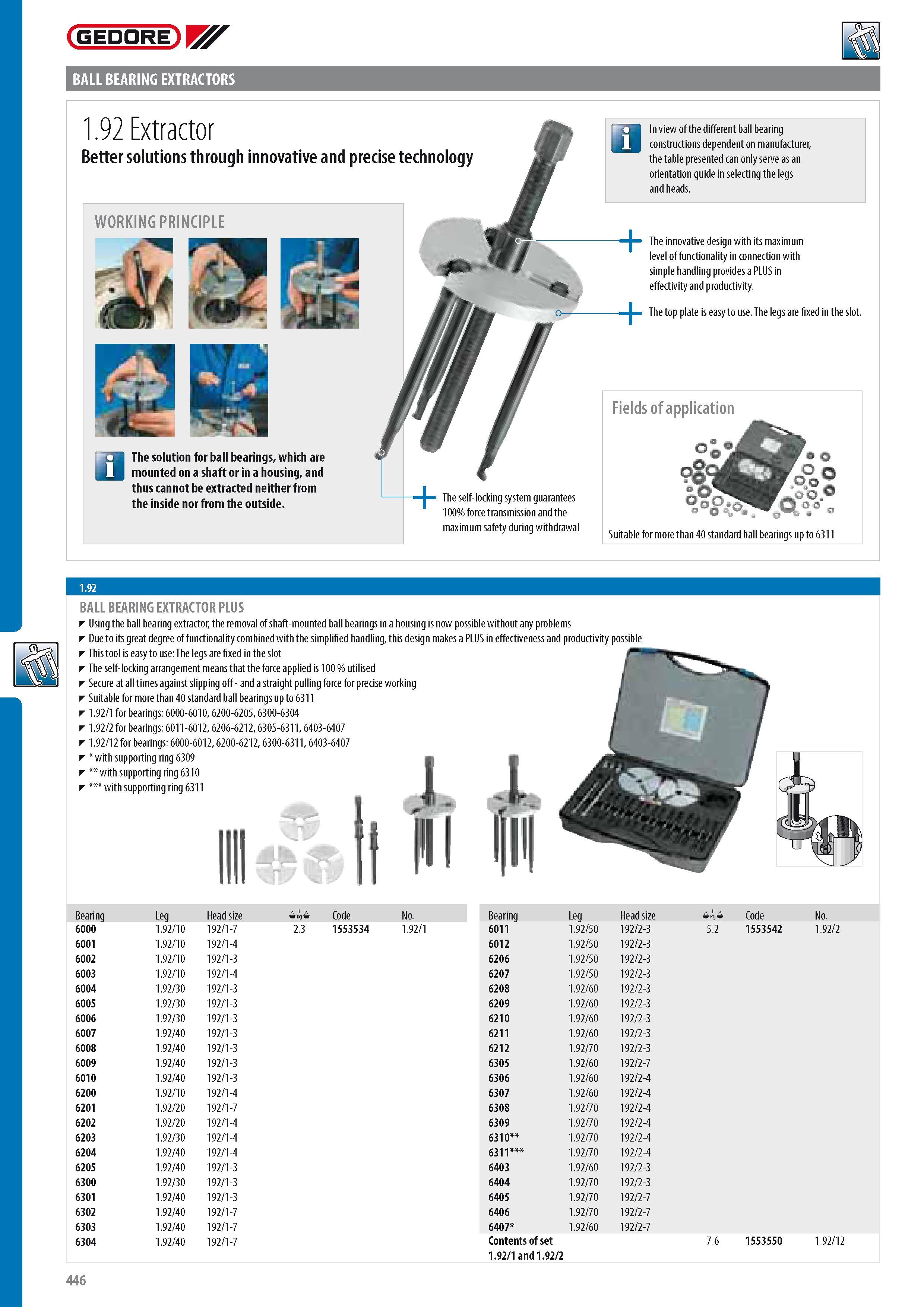

GEDORE BALL BEARING EXTRACTORS 1.92 Extractor Better solutions through innovative and precise technology WORKING PRINCIPLE In view of the different ball bearing constructions dependent on manufacturer the table presented can only serve as an orientation guide in selecting the legs and heads. The innovative design with its maximum level of functionality in connection with simple handling provides a PLUS in effectivity and productivity. The top plate is easy to use. The legs are fixed in the slot. Fields of application The solution for ball bearings which are mounted on a shaft or in a housing and thus cannot be extracted neither from the inside nor from the outside. The self-locking system guarantees 100% force transmission and the maximum safety during withdrawal a O Suitable for more than 40 standard ball bearings up to 6311 BALL BEARING EXTRACTOR PLUS Using the ball bearing extractor the removal of shaft-mounted ball bearings in a housing is now possible without any problems Due to its great degree of functionality combined with the simplified handling this design makes a PLUS in effectiveness and productivity possible This tool is easy to use The legs are fixed in the slot The self-locking arrangement means that the force applied is 100 % utilised Secure at all times against slipping off - and a straight pulling force for precise working Suitable for more than 40 standard ball bearings up to 6311 1.92 1 for bearings 6000-6010 6200-6205 6300-6304 1.92 2 for bearings 6011-6012 6206-6212 6305-6311 6403-6407 1.92 12 for bearings 6000-6012 6200-6212 6300-6311 6403-6407 with supporting ring 6309 with supporting ring 6310 with supporting ring 6311 Bearing Leg Head size 0 Code No. Bearing Leg Head size 6000 1.92 10 192 1-7 2.3 1553534 1.92 1 6011 1.92 50 192 2-3 6001 1.92 10 192 1-4 601 2 1.92 50 192 2-3 6002 1.92 10 192 1-3 6206 1.92 50 192 2-3 6003 1.92 10 192 1-4 6207 1.92 50 192 2-3 6004 1.92 30 192 1-3 6208 1.92 60 192 2-3 6005 1.92 30 192 1-3 6209 1.92 60 192 2-3 6006 1.92 30 192 1-3 6210 1.92 60 192 2-3 6007 1.92 40 192 1-3 6211 1.92 60 192 2-3 6008 1.92 40 192 1-3 6212 1.92 70 192 2-3 6009 1.92 40 192 1-3 6305 1.92 60 192 2-7 6010 1.92 40 192 1-3 6306 1.92 60 192 2-4 6200 1.92 10 192 1-4 6307 1.92 60 192 2-4 6201 1.92 20 192 1-7 6308 1.92 70 192 2-4 6202 1.92 20 192 1-4 6309 1.92 70 192 2-4 6203 1.92 30 192 1-4 6310 1.92 70 192 2-4 6204 1.92 40 192 1-4 6311 1.92 70 192 2-4 6205 1.92 40 192 1-3 6403 1.92 60 192 2-3 6300 1.92 30 192 1-3 6404 1.92 70 192 2-3 6301 1.92 40 192 1-3 6405 1.92 70 192 2-7 6302 1.92 40 192 1-7 6406 1.92 70 192 2-7 6303 1.92 40 192 1-7 6407 1.92 60 192 2-7 6304 1.92 40 192 1-7 Contents of set 1.92 1 and 1.92 2 0 Code No. 5.2 1553542 1.92 2 7.6 1553550 1.92 12 1.92 446
