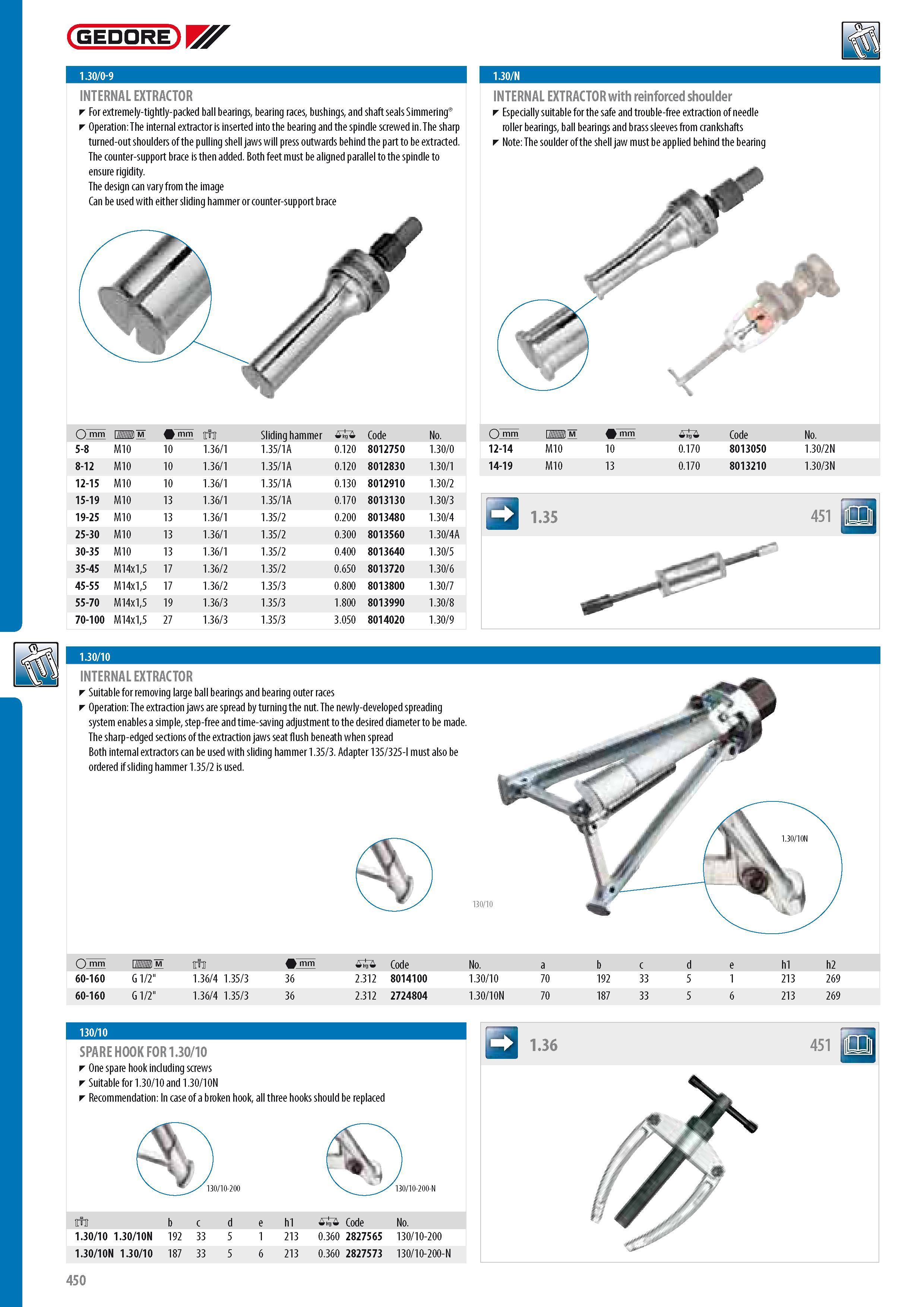

GEDORE INTERNAL EXTRACTOR For extremely-tightly-packed ball bearings bearing races bushings and shaft seals Simmering Operation The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace is then added. Both feet must be aligned parallel to the spindle to ensure rigidity. The design can vary from the image Can be used with either sliding hammer or counter-support brace INTERNAL EXTRACTOR with reinforced shoulder Especially suitable for the safe and trouble-free extraction of needle roller bearings ball bearings and brass sleeves from crankshafts Note The soulder of the shell jaw must be applied behind the bearing O mm IM I M mm A Sliding hammer 0 Code No. 5-8 M10 10 1.36 1 1.35 1A 0.120 8012750 1.30 0 8-12 M10 10 1.36 1 1.35 1A 0.120 8012830 1.30 1 12-15 M10 10 1.36 1 1.35 1A 0.130 8012910 1.30 2 15-19 M10 13 1.36 1 1.35 1A 0.170 8013130 1.30 3 19-25 M10 13 1.36 1 1.35 2 0.200 8013480 1.30 4 25-30 M10 13 1.36 1 1.35 2 0.300 8013560 1.30 4A 30-35 M10 13 1.36 1 1.35 2 0.400 8013640 1.30 5 35-45 M14x15 17 1.36 2 1.35 2 0.650 8013720 1.30 6 45-55 M14x15 17 1.36 2 1.35 3 0.800 8013800 1.30 7 55-70 M14x15 19 1.36 3 1.35 3 1.800 8013990 1.30 8 70-100 M14x15 27 1.36 3 1.35 3 3.050 8014020 1.30 9 O M mm -i0 Code No. 12-14 M10 10 0.170 8013050 1.30 2N 14-19 M10 13 0.170 8013210 1.30 3N J 1.35 INTERNAL EXTRACTOR Suitable for removing large ball bearings and bearing outer races Operation The extraction jaws are spread by turning the nut. The newly-developed spreading system enables a simple step-free and time-saving adjustment to the desired diameter to be made. The sharp-edged sections of the extraction jaws seat flush beneath when spread Both internal extractors can be used with sliding hammer 1.35 3. Adapter 135 325-I must also be ordered if sliding hammer 1.35 2 is used. O M A mm 0 Code No. a b c d e h1 h2 60-160 G 1 2" 1.36 4 1.35 3 36 2.312 8014100 1.30 10 70 192 33 5 1 213 269 60-160 G 1 2" 1.36 4 1.35 3 36 2.312 2724804 1.30 10N 70 187 33 5 6 213 269 SPARE HOOK FOR 1.30 10 One spare hook including screws Suitable for 1.30 10 and 1.30 10N Recommendation In case of a broken hook all three hooks should be replaced A 1.30 10 1.30 10N 1.30 10N 1.30 10 b c 192 33 187 33 h1 213 213 0 Code No. 0.360 2827565 130 10-200 0.360 2827573 130 10-200-N A 1.36 450 1.30 0-9 1.30 N 1.30 10 130 10
