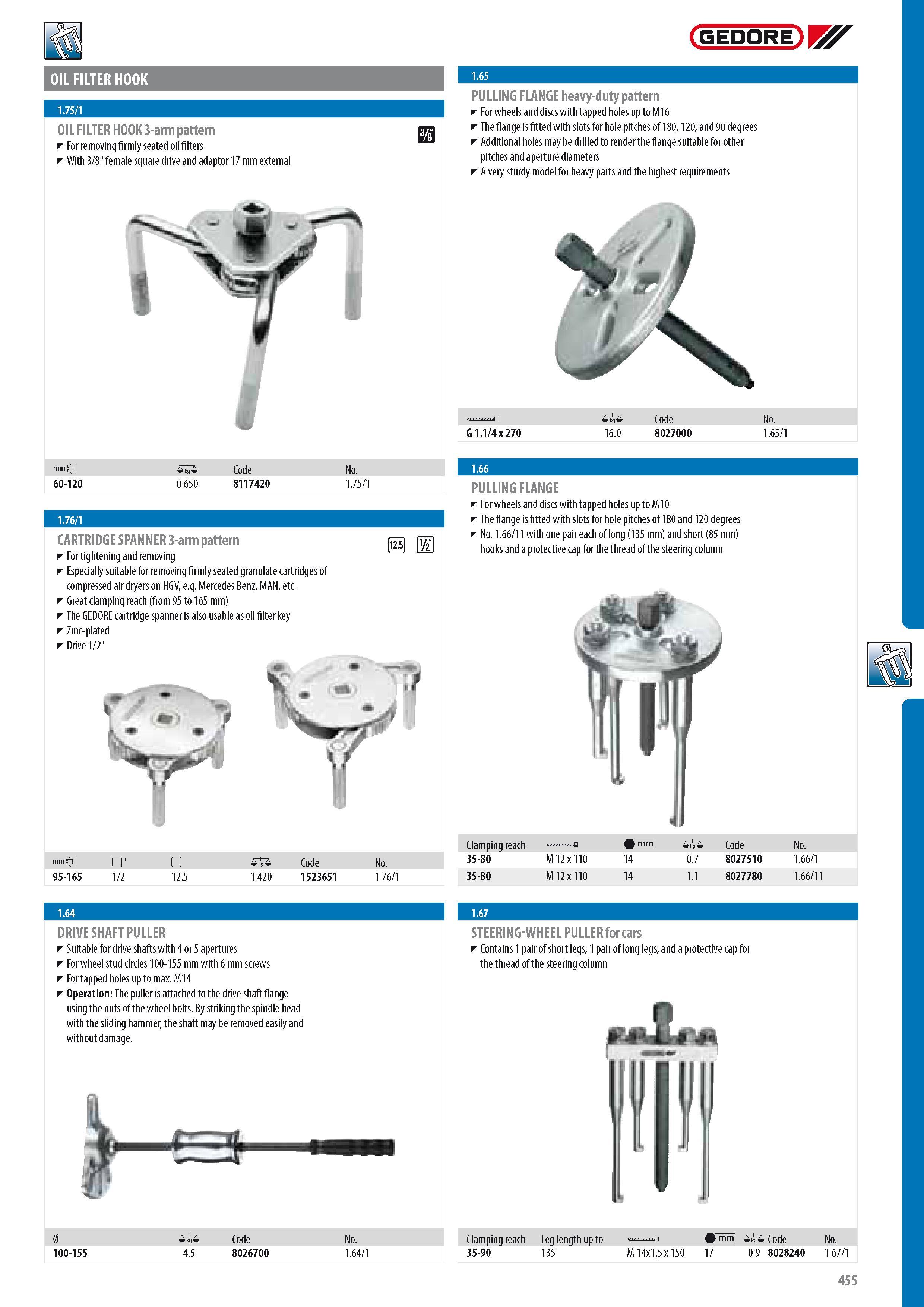

457 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.455

Каталог GEDORE 2014 Слесарный инструмент Стр. 455 0457 ENG Lab2u

OIL FILTER HOOK OIL FILTER HOOK 3-arm pattern For removing firmly seated oil filters With 3 8" female square drive and adaptor 17 mm external c GEDORE PULLING FLANGE heavy-duty pattern Forwheels and discs with tapped holes up to M16 The flange is fitted with slots for hole pitches of 180 120 and 90 degrees Additional holes may be drilled to render the flange suitable for other pitches and aperture diameters A very sturdy model for heavy parts and the highest requirements G 1.1 4 x 270 0 16.0 Code 8027000 No. 1.65 1 60-120 0 Code 0.650 8117420 No. 1.7 5 1 CARTRIDGE SPANNER 3-arm pattern Fortightening and removing Especially suitable for removing firmly seated granulate cartridges of compressed air dryers on HGV e.g. Mercedes Benz MAN etc. Great clamping reach (from 95 to 165 mm) The GEDORE cartridge spanner is also usable as oil filter key Zinc-plated Drive 1 2" O T PULLING FLANGE Forwheels and discs with tapped holes up to M10 The flange isfitted with slots for hole pitches of 180 and 120 degrees No. 1.66 11 with one pair each of long (135 mm) and short (85 mm) hooks and a protective cap for the thread of the steering column Clamping reach . mm 0 Code No. O " -i0 Code No. 35-80 M 12 x 110 14 0.7 8027510 1.66 1 95-165 1 2 12.5 1.420 1523651 1.7 6 1 35-80 M 12 x 110 14 1.1 8027780 1.66 11 1.64 1.67 1 DRIVE SHAFT PULLER Suitable for drive shafts with 4 or 5 apertures For wheel stud circles 100-155 mm with 6 mm screws Fortapped holes up to max. M14 Operation The puller is attached to the drive shaft flange using the nuts of the wheel bolts. By striking the spindle head with the sliding hammer the shaft may be removed easily and without damage. STEERING-WHEEL PULLER for cars Contains 1 pair of short legs 1 pair of long legs and a protective cap for the thread of the steering column 0 100-155 0 Code 4.5 8026700 No. 1.64 1 Clamping reach 35-90 Leg length up to 135 M 14x15 x 150 0 Code No. 1 7 0.9 8028240 1.67 1 1.65 1.75 1 1.66 1.76 1 455
