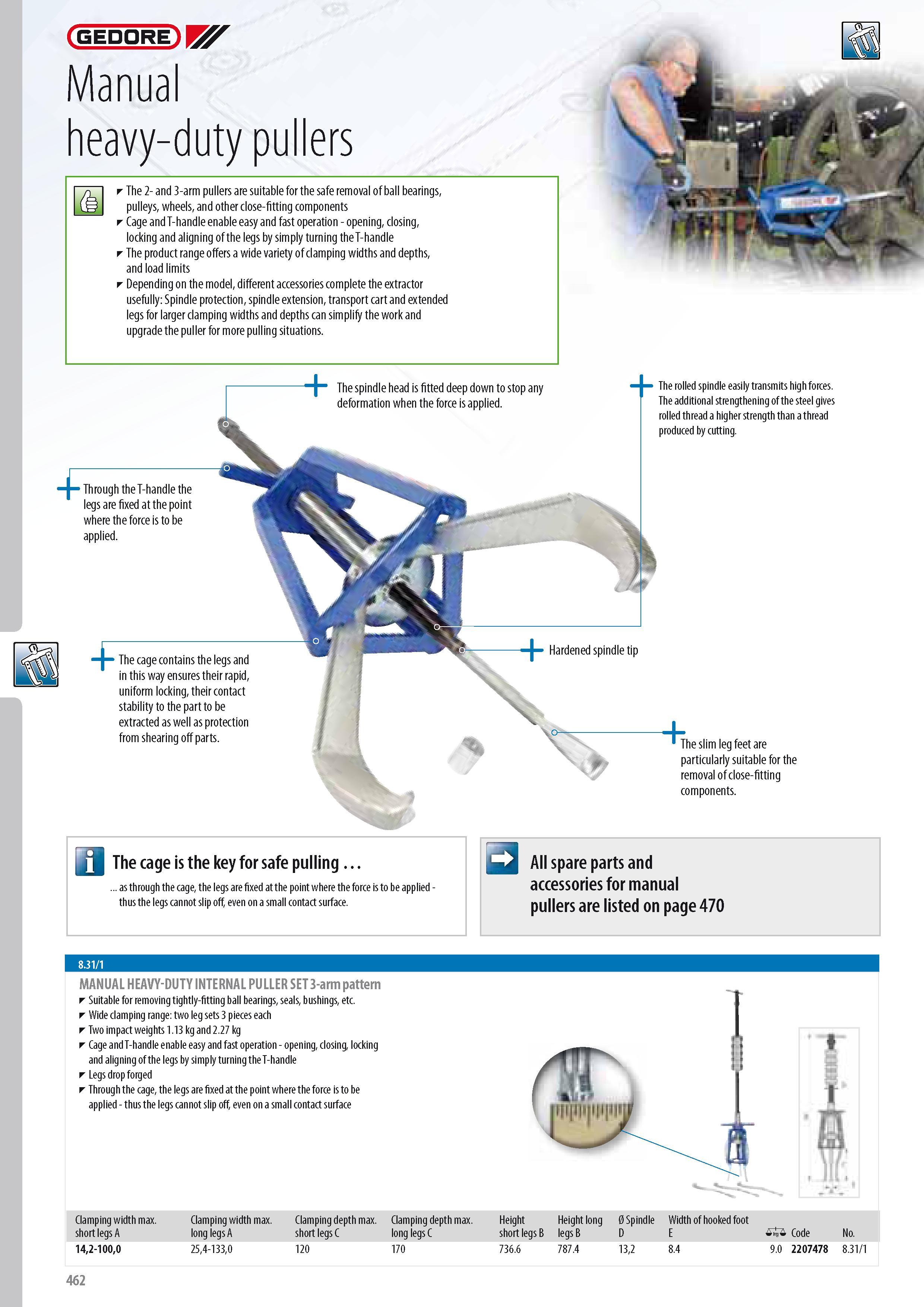

GEDORE Manual heavy-duty pullers The 2- and 3-arm pullers are suitable for the safe removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle T he product range offers a wide variety of clamping widths and depths and load limits Depending on the model different accessories complete the extractor usefully Spindle protection spindle extension transport cart and extended legs for larger clamping widths and depths can simplify the work and upgrade the puller for more pulling situations. " The spindle head is fitted deep down to stop any deformation when the force is applied. -c Through the T-handle the legs are fixed at the point where the force is to be applied. -F The cage contains the legs and in this way ensures their rapid uniform locking their contact stability to the part to be extracted as well as protection from shearing off parts. The rolled spindle easily transmits high forces. The additional strengthening of the steel gives rolled thread a higher strength than a thread produced by cutting. The slim leg feet are particularly suitable for the removal of close-fitting components. MANUAL HEAVY-DUTY INTERNAL PULLER SET 3-arm pattern Suitable for removing tightly-fitting ball bearings seals bushings etc. Wide clamping range two leg sets 3 pieces each Two impact weights 1.13 kg and 2.27 kg Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied - thus the legs cannot slip off even on a small contact surface Clamping width max. Clamping width max. Clamping depth max. Clamping depth max. Height Height long 0 Spindle Width of hooked foot short legs A long legs A short legs C long legs C short legs B legs B D E 0 Code No. 142-1000 254-1330 120 170 736.6 787.4 132 8.4 9.0 2207478 8.31 1 462
