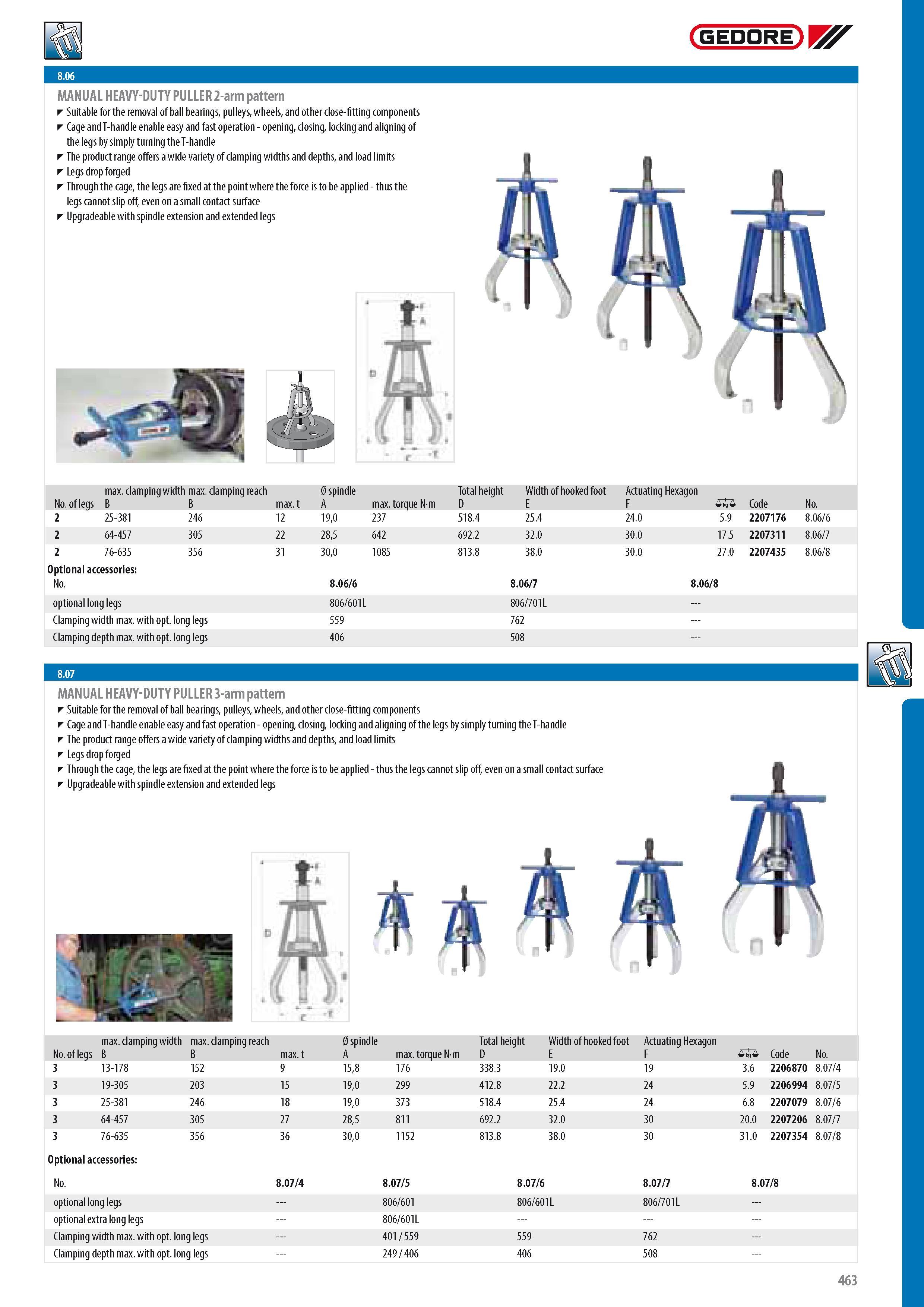

GEDORE MANUAL HEAVY-DUTY PULLER 2-arm pattern Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied - thus the legs cannot slip off even on a small contact surface Upgradeable with spindle extension and extended legs Width of hooked foot No. of legs B B max. A max. torque Nm D E F -0 Code No. 2 25-381 246 12 190 237 518.4 25.4 24.0 5.9 2207176 8.06 6 2 64-457 305 22 285 642 692.2 32.0 30.0 17.5 2207311 8.06 7 2 76-635 356 31 300 1085 813.8 38.0 30.0 27.0 2207435 8.06 8 Optional accessories No. 8.06 6 8.06 7 8.06 8 optional long legs 806 601L 806 701L - Clamping width max. with opt. long legs 559 762 - Clamping depth max. with opt. long legs 406 508 - MANUAL HEAVY-DUTY PULLER 3-arm pattern Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied - thus the legs cannot slip off even on a small contact surface Upgradeable with spindle extension and extended legs i f z 5 6 4 Hi r. max. clamping width No. of legs B max. clamping reach B max. 0 spindle A max. torque Nm Total height Width of hooked foot DE Actuating Hexagon F -0 Code No. 3 13-178 152 9 158 176 338.3 19.0 19 3.6 2206870 8.07 4 3 19-305 203 15 190 299 412.8 22.2 24 5.9 2206994 8.07 5 3 25-381 246 18 190 373 518.4 25.4 24 6.8 2207079 8.07 6 3 64-457 305 27 285 811 692.2 32.0 30 20.0 2207206 8.07 7 3 76-635 356 36 300 1152 813.8 38.0 30 31.0 2207354 8.07 8 Optional accessories No. 8.07 4 8.07 5 8.07 6 8.07 7 8.07 8 optional long legs 806 601 806 601L 806 701L optional extra long legs 806 601L - Clamping width max. with opt. long legs 401 559 559 762 Clamping depth max. with opt. long legs 249 406 406 508 8.06 8.07 463
