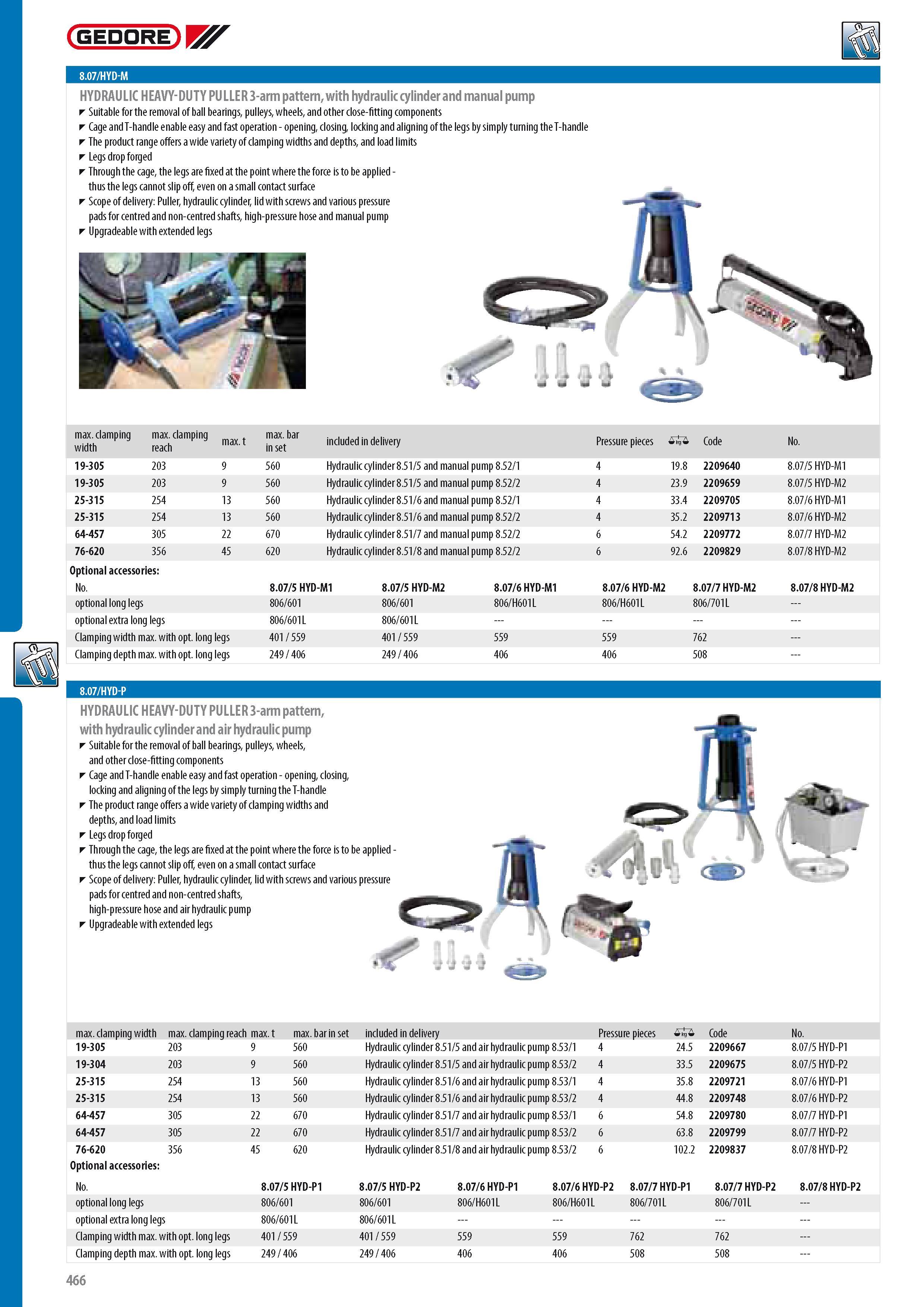

GEDORE HYDRAULIC HEAVY-DUTY PULLER 3-arm pattern with hydraulic cylinder and manual pump Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied -thus the legs cannot slip off even on a small contact surface Scope of delivery Puller hydraulic cylinder lid with screws and various pressure pads for centred and non-centred shafts high-pressure hose and manual pump Upgradeable with extended legs max. clamping width max. clamping reach max. max. bar in set included in delivery Pressure pieces 0 Code No. 19-305 203 9 560 Hydraulic cylinder 8.51 5 and manual pump 8.52 1 4 19.8 2209640 8.07 5 HYD-M1 19-305 203 9 560 Hydraulic cylinder 8.51 5 and manual pump 8.52 2 4 23.9 2209659 8.07 5 HYD-M2 25-315 254 13 560 Hydraulic cylinder 8.51 6 and manual pump 8.52 1 4 33.4 2209705 8.07 6 HYD-M1 25-315 254 13 560 Hydraulic cylinder 8.51 6 and manual pump 8.52 2 4 35.2 2209713 8.07 6 HYD-M2 64-457 305 22 670 Hydraulic cylinder 8.51 7 and manual pump 8.52 2 6 54.2 2209772 8.07 7 HYD-M2 76-620 356 45 620 Hydraulic cylinder 8.51 8 and manual pump 8.52 2 6 92.6 2209829 8.07 8 HYD-M2 Optional accessories No. 8.07 5 HYD-M1 8.07 5 HYD-M2 8.07 6 HYD-M1 8.07 6 HYD-M2 8.07 7 HYD-M2 8.07 8 HYD-M2 optional long legs 806 601 806 601 806 H601L 806 H601L 806 701L - optional extra long legs 806 601L 806 601L - Clamping width max. with opt. long legs 401 559 401 559 559 559 762 - Clamping depth max. with opt. long legs 249 406 249 406 406 406 508 - HYDRAULIC HEAVY-DUTY PULLER 3-arm pattern with hydraulic cylinder and air hydraulic pump Suitable for the removal of ball bearings pulleys wheels and other close-fitting components Cage and T-handle enable easy and fast operation - opening closing locking and aligning of the legs by simply turning the T-handle The product range offers a wide variety of clamping widths and depths and load limits Legs drop forged Through the cage the legs are fixed at the point where the force is to be applied -thus the legs cannot slip off even on a small contact surface Scope of delivery Puller hydraulic cylinder lid with screws and various pressure pads for centred and non-centred shafts high-pressure hose and air hydraulic pump Upgradeable with extended legs max. clamping width max. clamping reach max. max. bar in set included in delivery Pressure pieces -0 Code No. 1 9-305 203 9 560 Hydraulic cylinder 8.51 5 and air hydraulic pump 8.53 1 4 24.5 2209667 8.07 5 HYD-P1 1 9-304 203 9 560 Hydraulic cylinder 8.51 5 and air hydraulic pump 8.53 2 4 33.5 2209675 8.07 5 HYD-P2 25-315 254 13 560 Hydraulic cylinder 8.51 6 and air hydraulic pump 8.53 1 4 35.8 2209721 8.07 6 HYD-P1 25-315 254 13 560 Hydraulic cylinder 8.51 6 and air hydraulic pump 8.53 2 4 44.8 2209748 8.07 6 HYD-P2 64-457 305 22 670 Hydraulic cylinder 8.51 7 and air hydraulic pump 8.53 1 6 54.8 2209780 8.07 7 HYD-P1 64-457 305 22 670 Hydraulic cylinder 8.51 7 and air hydraulic pump 8.53 2 6 63.8 2209799 8.07 7 HYD-P2 76-620 356 45 620 Hydraulic cylinder 8.51 8 and air hydraulic pump 8.53 2 6 102.2 2209837 8.07 8 HYD-P2 Optional accessories No. 8.07 5 HYD-P1 8.07 5 HYD-P2 8.07 6 HYD-P1 8.07 6 HYD-P2 8.07 7 HYD-P1 8.07 7 HYD-P2 8.07 8 HYD-P2 optional long legs 806 601 806 601 806 H601L 806 H601L 806 701L 806 701L - optional extra long legs 806 601L 806 601L - Clamping width max. with opt. long legs 401 559 401 559 559 559 762 762 - Clamping depth max. with opt. long legs 249 406 249 406 406 406 508 508 - 07 HYD-M 07 HYD-P 466
