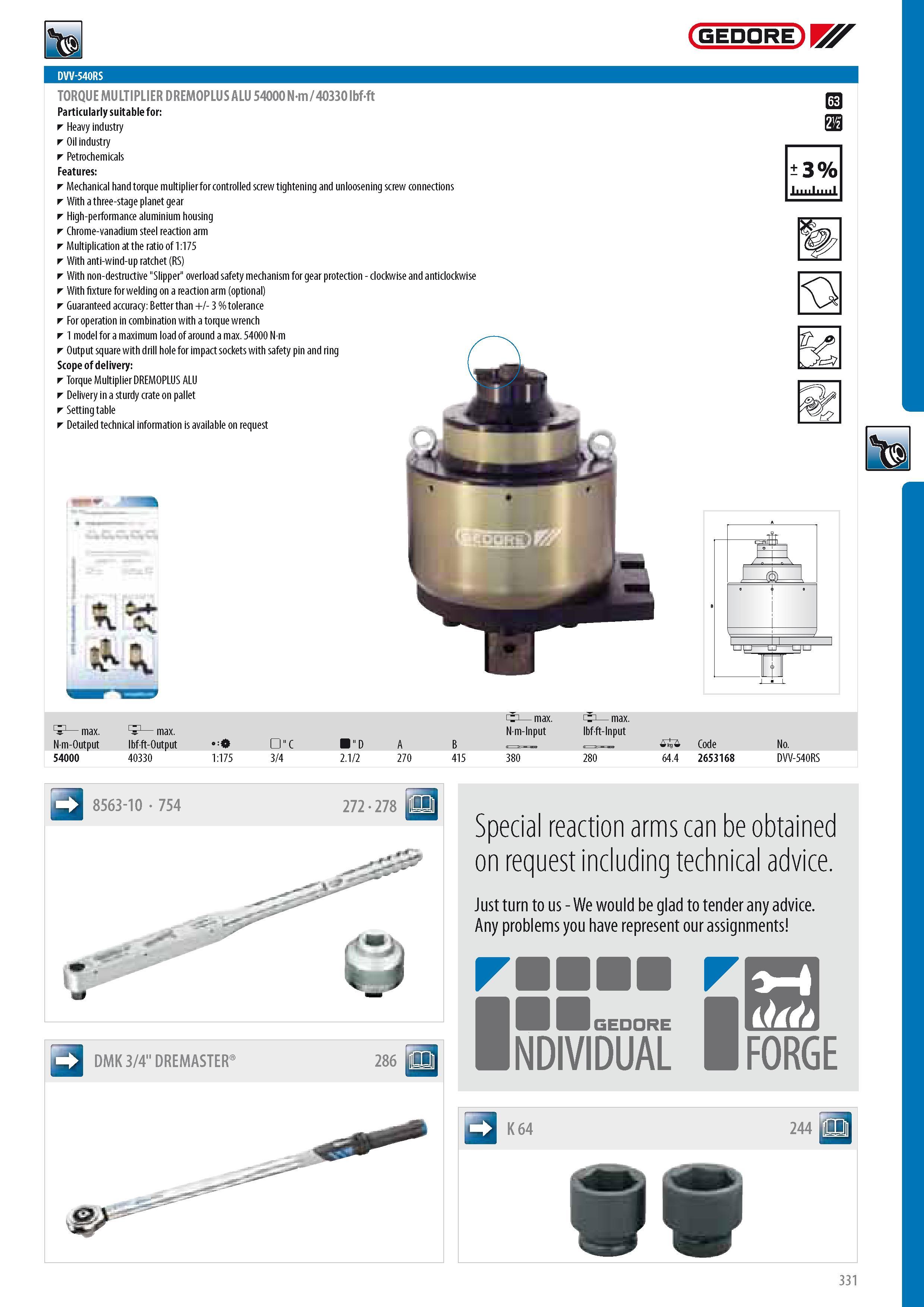

GEDORE DVV-540RS TORQUE MULTIPLIER DREMOPLUS ALU 54000 Nm 40330 lbf-ft Particularly suitable for Heavy industry Oil industry Petrochemicals Features Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a three-stage planet gear High-performance aluminium housing Chrome-vanadium steel reaction arm Multiplication at the ratio of 1:175 With anti-wind-up ratchet (RS) With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise With fixture for welding on a reaction arm (optional) Guaranteed accuracy Better than + - 3 % tolerance For operation in combination with a torque wrench 1 model for a maximum load of around a max. 54000 Nm Output square with drill hole for impact sockets with safety pin and ring Scope of delivery Torque Multiplier DREMOPLUS ALU Delivery in a sturdy crate on pallet Setting table Detailed technical information is available on request w h 3% & max. Nm-Output max. lbfft-Output g " C " D A B max. Nm-Input max. lbfft-Input -0 Code No. 54000 40330 1:175 3 4 2.1 2 270 415 380 280 64.4 2653168 DVV-540RS Special reaction arms can be obtained on request including technical advice. Just turn to us - We would be glad to tender any advice. Any problems you have represent our assignments J DMK 3 4" DREMASTER 286 n rmmmm 3-1 1GEDORE m Individual mFORGE V K64 244 lU 331
