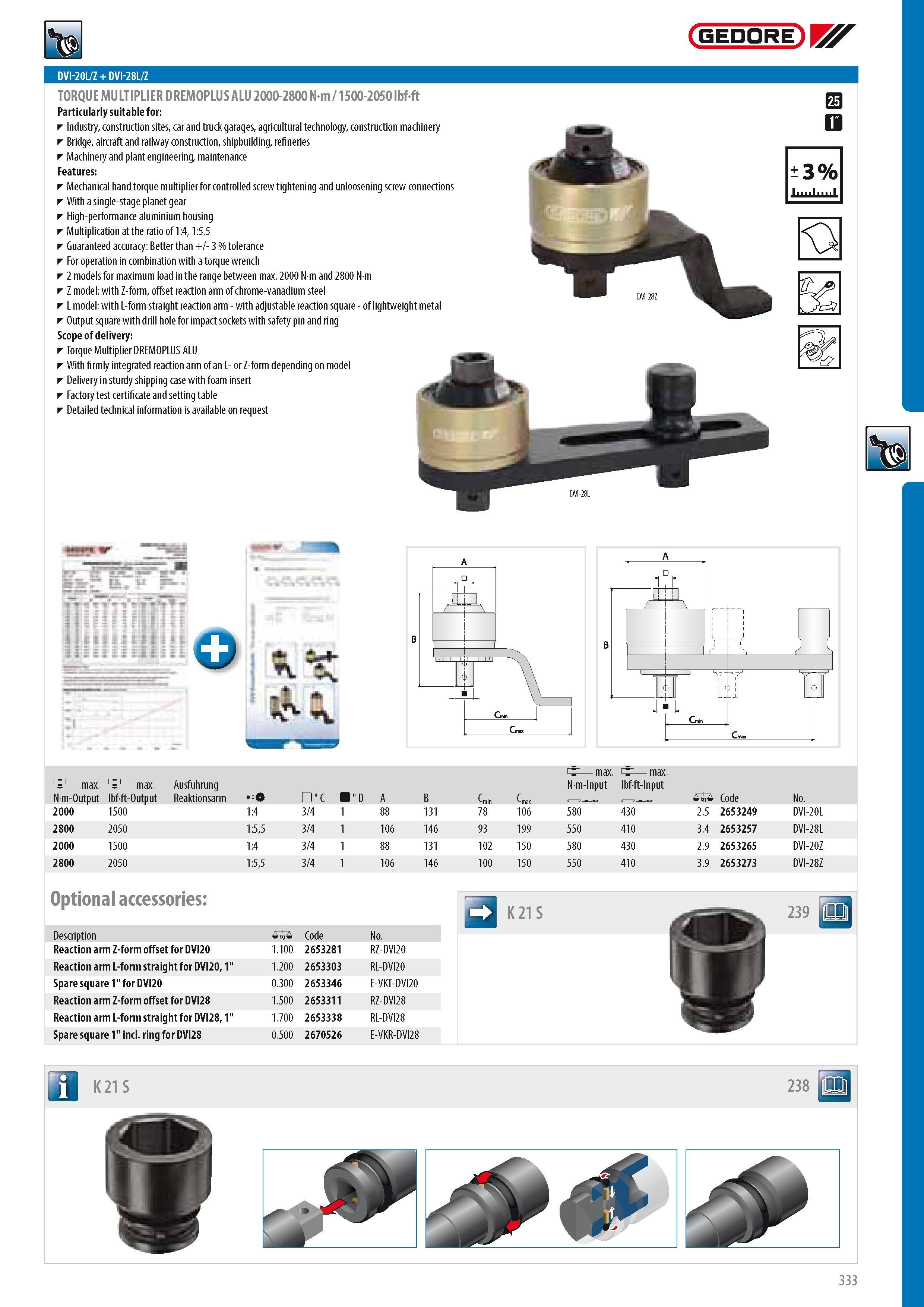

GEDORE DVI-20L Z + DVI-28L Z TORQUE MULTIPLIER DREMOPLUS ALU 2000-2800 Nm 1500-2050 lbfft Particularly suitable for Industry construction sites car and truck garages agricultural technology construction machinery Bridge aircraft and railway construction shipbuilding refineries Machinery and plant engineering maintenance Features Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a single-stage planet gear High-performance aluminium housing Multiplication at the ratio of 1:4 1:5.5 Guaranteed accuracy Better than + - 3 % tolerance For operation in combination with a torque wrench 2 models for maximum load in the range between max. 2000 Nm and 2800 Nm Z model with Z-form offset reaction arm of chrome-vanadium steel L model with L-form straight reaction arm - with adjustable reaction square - of lightweight metal Output square with drill hole for impact sockets with safety pin and ring Scope of delivery Torque Multiplier DREMOPLUS ALU With firmly integrated reaction arm of an L- or Z-form depending on model Delivery in sturdy shipping case with foam insert Factory test certificate and setting table Detailed technical information is available on request r Q 3% 11111 & ; I r-i L i r Ausfuhrung max. max. Nm-Input lbfft-Input Nm-Output lbfft-Output Reaktionsarm g " C " D A B Cmin Cmax 0 Code No. 2000 1500 1:4 3 4 1 88 131 78 106 580 430 2.5 2653249 DVI-20L 2800 2050 1:55 3 4 1 106 146 93 199 550 410 3.4 2653257 DVI-28L 2000 1500 1:4 3 4 1 88 131 102 150 580 430 2.9 2653265 DVI-20Z 2800 2050 1:55 3 4 1 106 146 100 150 550 410 3.9 2653273 DVI-28Z Optional accessories Description 0 Code No. Reaction arm Z-form offset for DVI20 1.100 2653281 RZ-DVI20 Reaction arm L-form straight for DVI20 1" 1.200 2653303 RL-DVI20 Spare square 1" for DVI20 0.300 2653346 E-VKT-DVI20 Reaction arm Z-form offset for DVI28 1.500 2653311 RZ-DVI28 Reaction arm L-form straight for DVI28 1" 1.700 2653338 RL-DVI28 Spare square 1" incl. ring for DVI28 0.500 2670526 E-VKR-DVI28 K 21 S 239 f K21S 238 333
