334 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.332

Каталог GEDORE 2014 Слесарный инструмент Стр. 332 0334 ENG Lab2u

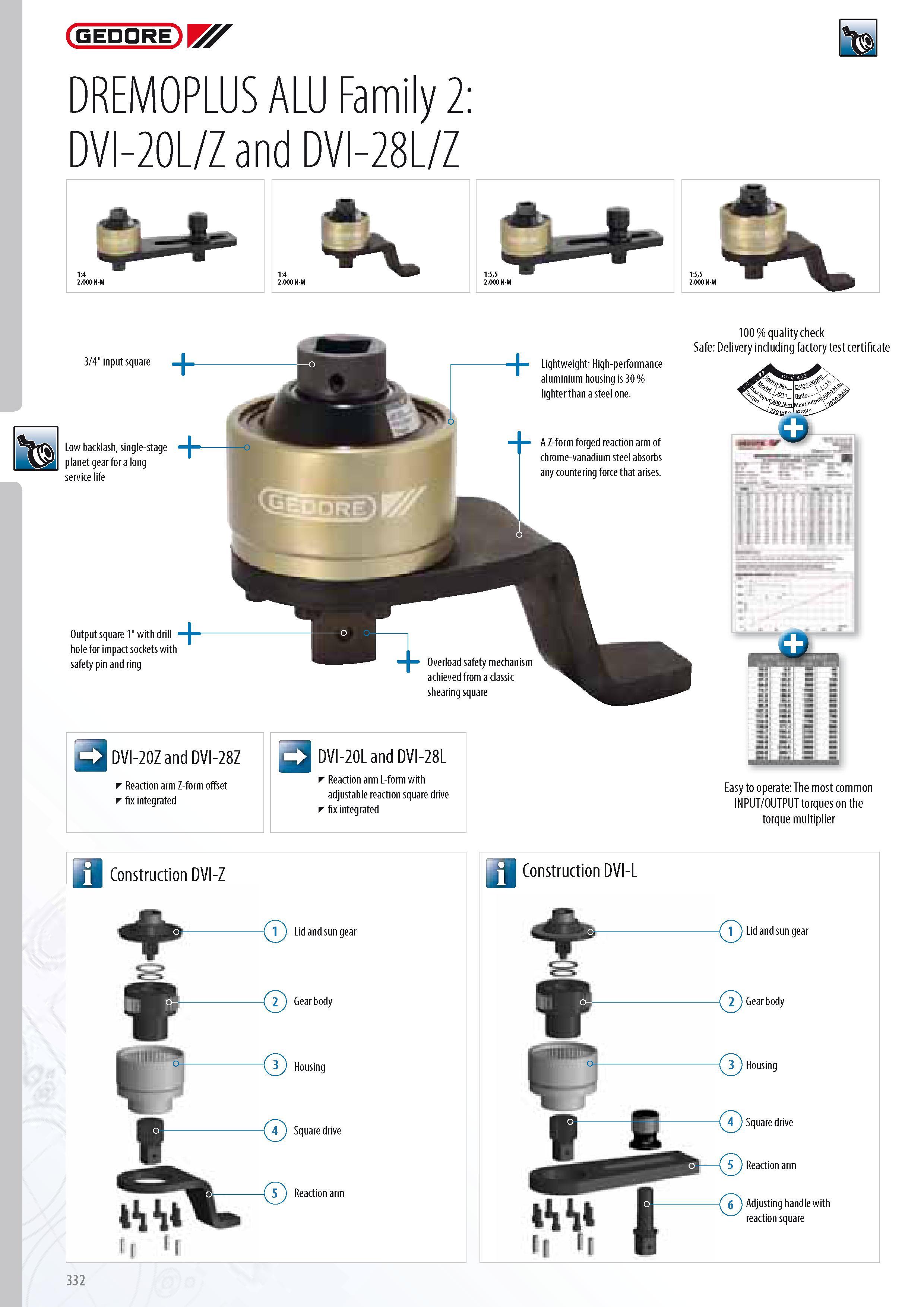

GEDORE DREMOPLUS ALU Family 2 DVI-20L Z and DVI-28L Z 3 4" input square Low backlash single-stage planet gear for a long service life Output square 1" with drill hole for impact sockets with safety pin and ring Lightweight High-performance aluminium housing is 30 % lighter than a steel one. A Z-form forged reaction arm of chrome-vanadium steel absorbs any countering force that arises. 100 % quality check Safe Delivery including factory test certificate Overload safety mechanism achieved from a classic shearing square DVI-20L and DVI-28L Reaction arm L-form with adjustable reaction square drive fix integrated Easy to operate The most common INPUT OUTPUT torques on the torque multiplier a Construction DVI-Z Lid and sun gear V - J) Gear body Housing Square drive Reaction arm Construction DVI-L Lid and sun gear 2) Gear body ( 3) Housing 7) Square drive 5 ) Reaction arm (6) Adjusting handle with reaction square 332
