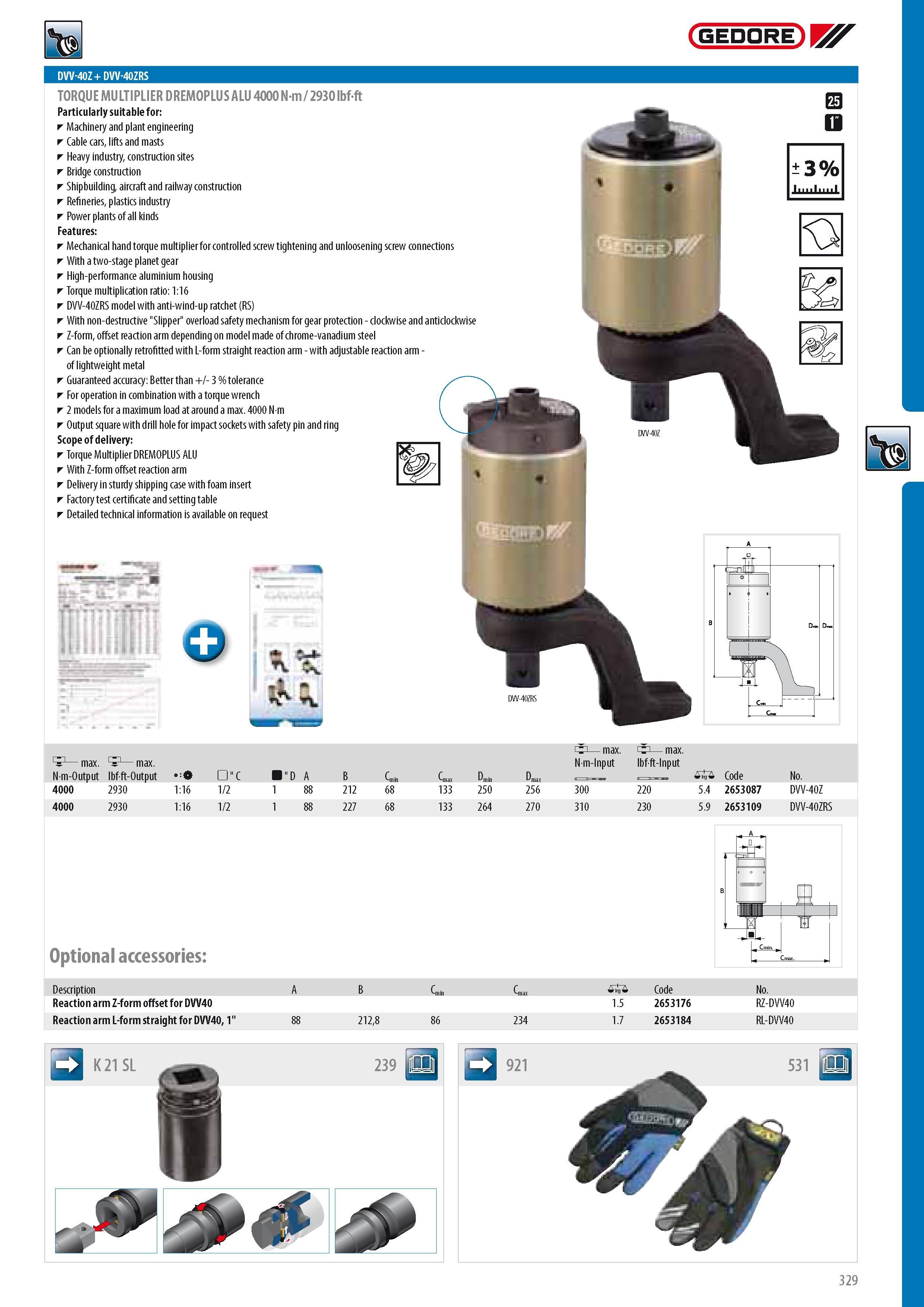

GEDORE DVV-40Z + DVV-40ZRS TORQUE MULTIPLIER DREMOPLUS ALU 4000 Nm 2930 lbfft Particularly suitable for Machinery and plant engineering Cable cars lifts and masts Heavy industry construction sites Bridge construction Shipbuilding aircraft and railway construction Refineries plastics industry Power plants of all kinds Features Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a two-stage planet gear High-performance aluminium housing Torque multiplication ratio 1:16 DVV-40ZRS model with anti-wind-up ratchet (RS) With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise Z-form offset reaction arm depending on model made of chrome-vanadium steel Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm -of lightweight metal Guaranteed accuracy Better than + - 3 % tolerance For operation in combination with a torque wrench 2 models for a maximum load at around a max. 4000 Nm Output square with drill hole for impact sockets with safety pin and ring Scope of delivery Torque Multiplier DREMOPLUS ALU With Z-form offset reaction arm Delivery in sturdy shipping case with foam insert Factory test certificate and setting table Detailed technical information is available on request m ta max. Nm-Output max. lbfft-Output " C " D A B C C D D max. Nm-Input max. lbfft-Input 0 0 Code No. 4000 2930 1:16 1 2 1 88 212 68 133 250 256 300 220 5.4 2653087 DVV-40Z 4000 2930 1:16 1 2 1 88 227 68 133 264 270 310 230 5.9 2653109 DVV-40ZRS Optional accessories K 21 SL n B J-L L Cmin 1 Cmax. Description A B Cmin Cmax -l'n. Code No. Reaction arm Z-form offset for DVV40 1.5 2653176 RZ-DVV40 Reaction arm L-form straight for DVV40 1" 88 2128 86 234 1.7 2653184 RL-DVV40 239 M 921 531 (' 329
