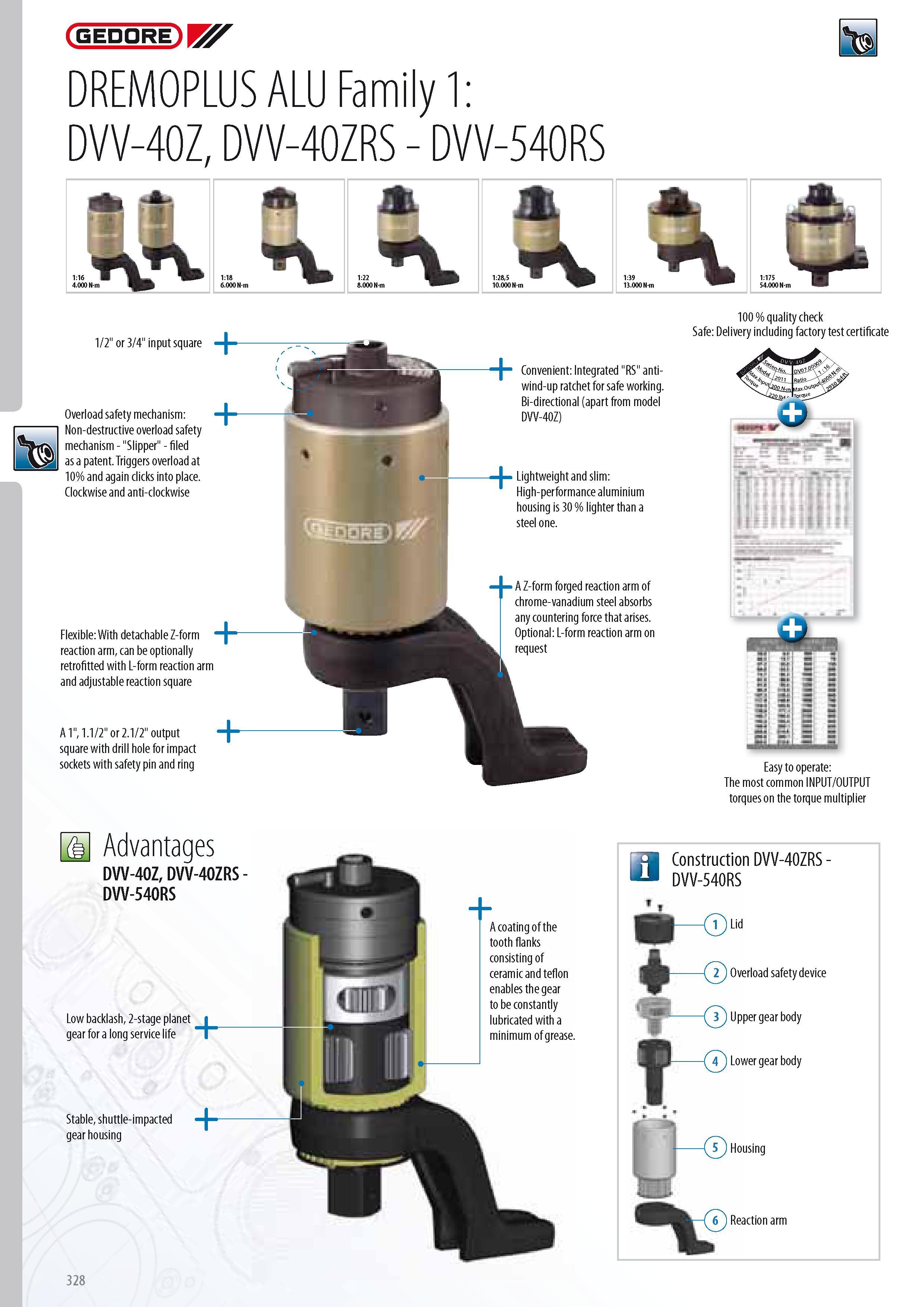

GEDORE DREMOPLUS ALU Family 1 DVV-40Z DVV-40ZRS - DVV-540RS 1 2" or 3 4" input square Overload safety mechanism Non-destructive overload safety mechanism - "Slipper" - filed as a patent. Triggers overload at 10% and again clicks into place. Clockwise and anti-clockwise 100 % quality check Safe Delivery including factory test certificate Flexible With detachable Z-form reaction arm can be optionally retrofitted with L-form reaction arm and adjustable reaction square A 1" 1.1 2" or 2.1 2" output square with drill hole for impact sockets with safety pin and ring Convenient Integrated "RS" antiwind-up ratchet for safe working. Bi-directional (apart from model DVV-40Z) 1 Lightweight and slim High-performance aluminium housing is 30 % lighter than a steel one. A Z-form forged reaction arm of chrome-vanadium steel absorbs any countering force that arises. Optional L-form reaction arm on request Easy to operate The most common INPUT OUTPUT torques on the torque multiplier Advantages DVV-40Z DVV-40ZRS DVV-540RS Low backlash 2-stage planet i gear for a long service life T Stable shuttle-impacted - gear housing A coating of the tooth flanks consisting of ceramic and teflon enables the gear to be constantly lubricated with a minimum of grease. 1 9 Construction DVV-40ZRS -u DVV-540RS L (J) Overload safety device -( ) Upper gear body (J) Lower gear body - -(7) Housing Reaction arm 328
