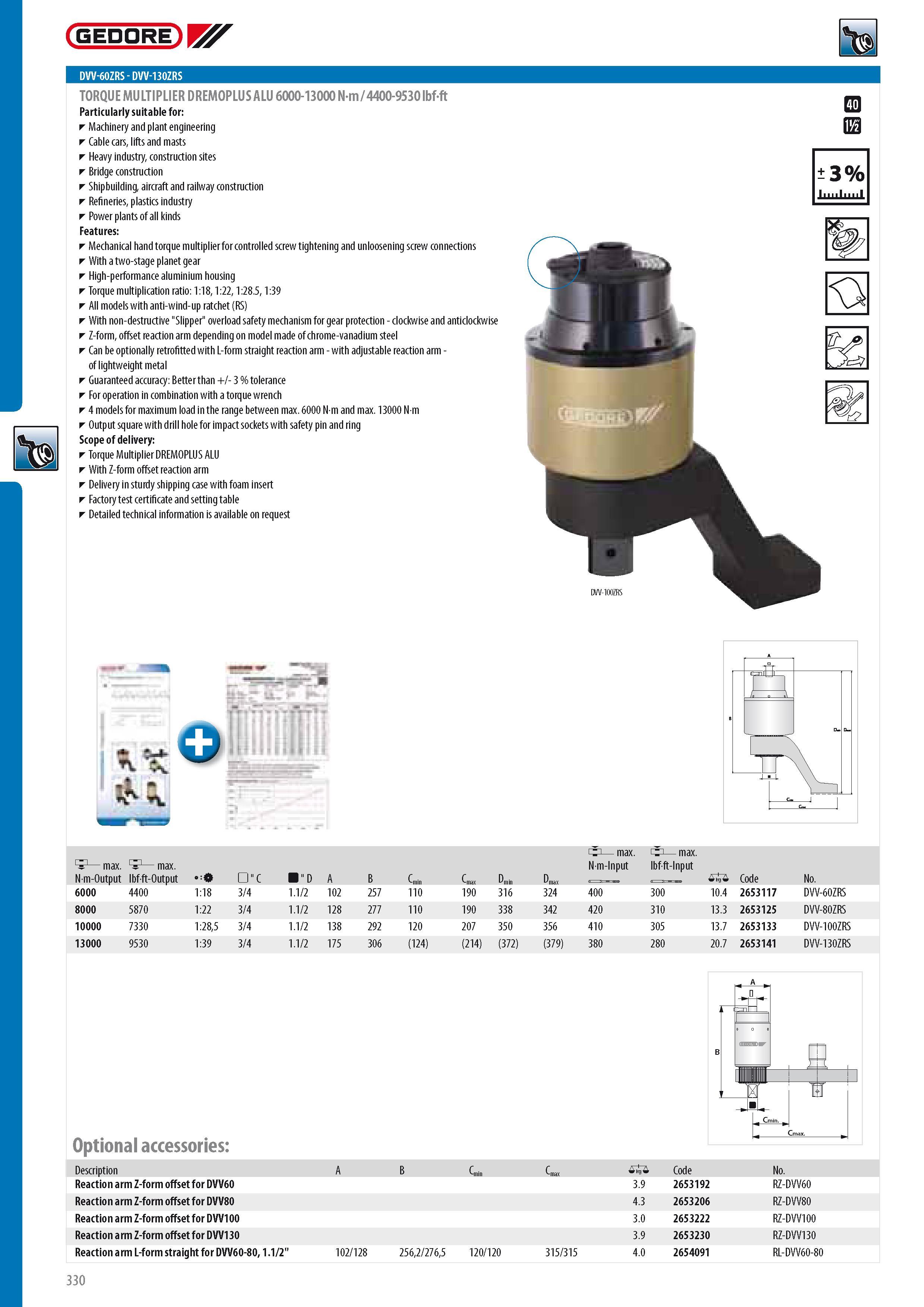

GEDORE DVV-60ZRS - DVV-130ZRS TORQUE MULTIPLIER DREMOPLUS ALU 6000-13000 Nm 4400-9530 lbf-ft Particularly suitable for Machinery and plant engineering Cable cars lifts and masts Heavy industry construction sites Bridge construction Shipbuilding aircraft and railway construction Refineries plastics industry Power plants of all kinds Features Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a two-stage planet gear High-performance aluminium housing Torque multiplication ratio 1:18 1:22 1:28.5 1:39 All models with anti-wind-up ratchet (RS) With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise Z-form offset reaction arm depending on model made of chrome-vanadium steel Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm -of lightweight metal Guaranteed accuracy Better than + - 3 % tolerance For operation in combination with a torque wrench 4 models for maximum load in the range between max. 6000 Nm and max. 13000 Nm Output square with drill hole for impact sockets with safety pin and ring Scope of delivery Torque Multiplier DREMOPLUS ALU With Z-form offset reaction arm Delivery in sturdy shipping case with foam insert Factory test certificate and setting table Detailed technical information is available on request v g 3% max. Nm-Output max. lbfft-Output g " C " D A B Cmin C D D max. Nm-Input max. lbfft-Input -0 Code No. 6000 4400 1:18 3 4 1.1 2 102 257 110 190 31(5 324 400 300 10.4 2653117 DVV-60ZRS 8000 5870 1:22 3 4 1.1 2 128 277 110 190 338 342 420 310 13.3 2653125 DVV-80ZRS 10000 7330 1:285 3 4 1.1 2 138 292 120 207 350 356 410 305 13.7 2653133 DVV-100ZRS 13000 9530 1:39 3 4 1.1 2 175 6 0 3 (124) (214) (372) (379) 380 280 20.7 2653141 DVV-130ZRS Optional accessories Description A B Cmin Cmax 0 Code No. Reaction arm Z-form offset for DVV60 3.9 2653192 RZ-DVV60 Reaction arm Z-form offset for DVV80 4.3 2653206 RZ-DVV80 Reaction arm Z-form offset for DVV100 3.0 2653222 RZ-DVV100 Reaction arm Z-form offset for DVV130 3.9 2653230 RZ-DVV130 Reaction arm L-form straight for DVV60-80 1.1 2" 102 128 2562 2765 120 120 315 315 4.0 2654091 RL-DVV60-80 330
