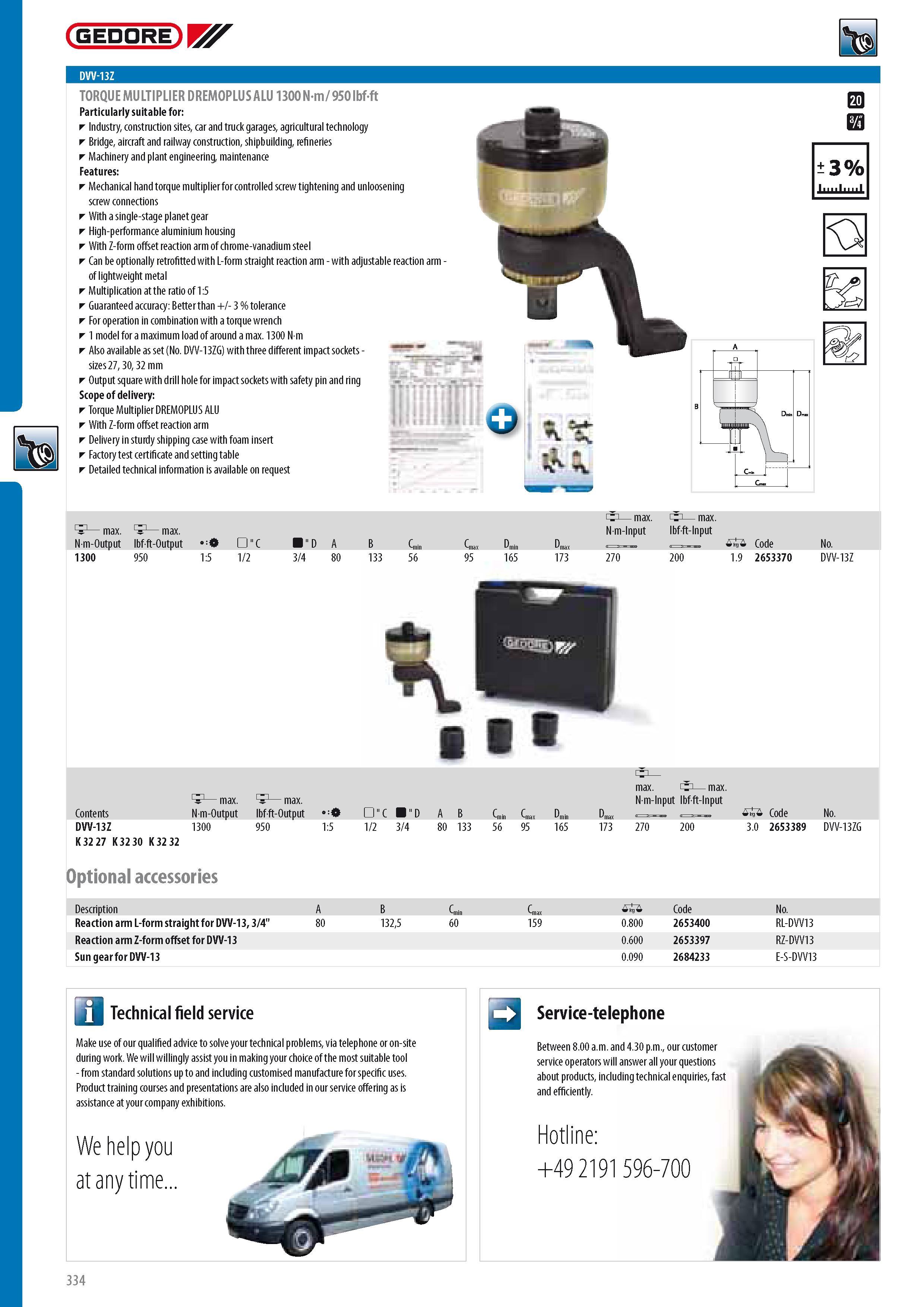

GEDORE TORQUE MULTIPLIER DREMOPLUS ALU 1300 Nm 950 lbf-ft Particularly suitable for Industry construction sites car and truck garages agricultural technology Bridge aircraft and railway construction shipbuilding refineries Machinery and plant engineering maintenance Features Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a single-stage planet gear High-performance aluminium housing With Z-form offset reaction arm of chrome-vanadium steel Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm of lightweight metal Multiplication at the ratio of 1:5 Guaranteed accuracy Better than + - 3 % tolerance For operation in combination with a torque wrench 1 model for a maximum load of around a max. 1300 Nm Also available as set (No. DVV-13ZG) with three different impact sockets -sizes 27 30 32 mm Output square with drill hole for impact sockets with safety pin and ring Scope of delivery Torque Multiplier DREMOPLUS ALU With Z-form offset reaction arm Delivery in sturdy shipping case with foam insert Factory test certificate and setting table Detailed technical information is available on request max. Nm-Output max. lbfft-Output g " C " D A B Cmin C Dmin D max. Nm-Input max. lbfft-Input 0 Code No. 1300 950 1:5 1 2 3 4 80 133 56 95 1 165 173 270 200 1.9 2653370 DVV-13Z a max. max. max. max. N m-Input lbfft-Input Contents Nm-Output lbfft-Output g " C " D A B E D i C E C Dmax a Code No. DVV-13Z K 32 27 K 32 30 K 32 32 1300 950 1:5 1 2 3 4 80 133 56 95 165 173 270 200 3.0 2653389 DVV-13ZG Optional accessories Description A B Cmin Cmax 0 Code No. Reaction arm L-form straight for DVV-13 3 4" 80 1325 60 159 0.800 2653400 RL-DVV13 Reaction arm Z-form offset for DVV-13 0.600 2653397 RZ-DVV13 Sun gear for DVV-13 0.090 2684233 E-S-DVV13 a Technical field service Make use of our qualified advice to solve your technical problems via telephone or on-site during work. We will willingly assist you in making your choice of the most suitable tool - from standard solutions up to and including customised manufacture for specific uses. Product training courses and presentations are also included in our service offering as is assistance at your company exhibitions. We help you at any time... Service-telephone Between 8.00 a.m. and 4.30 p.m. our customer service operators will answer all your questions about products including technical enquiries fast and efficiently. Hotline +49 2191 596-700 334
