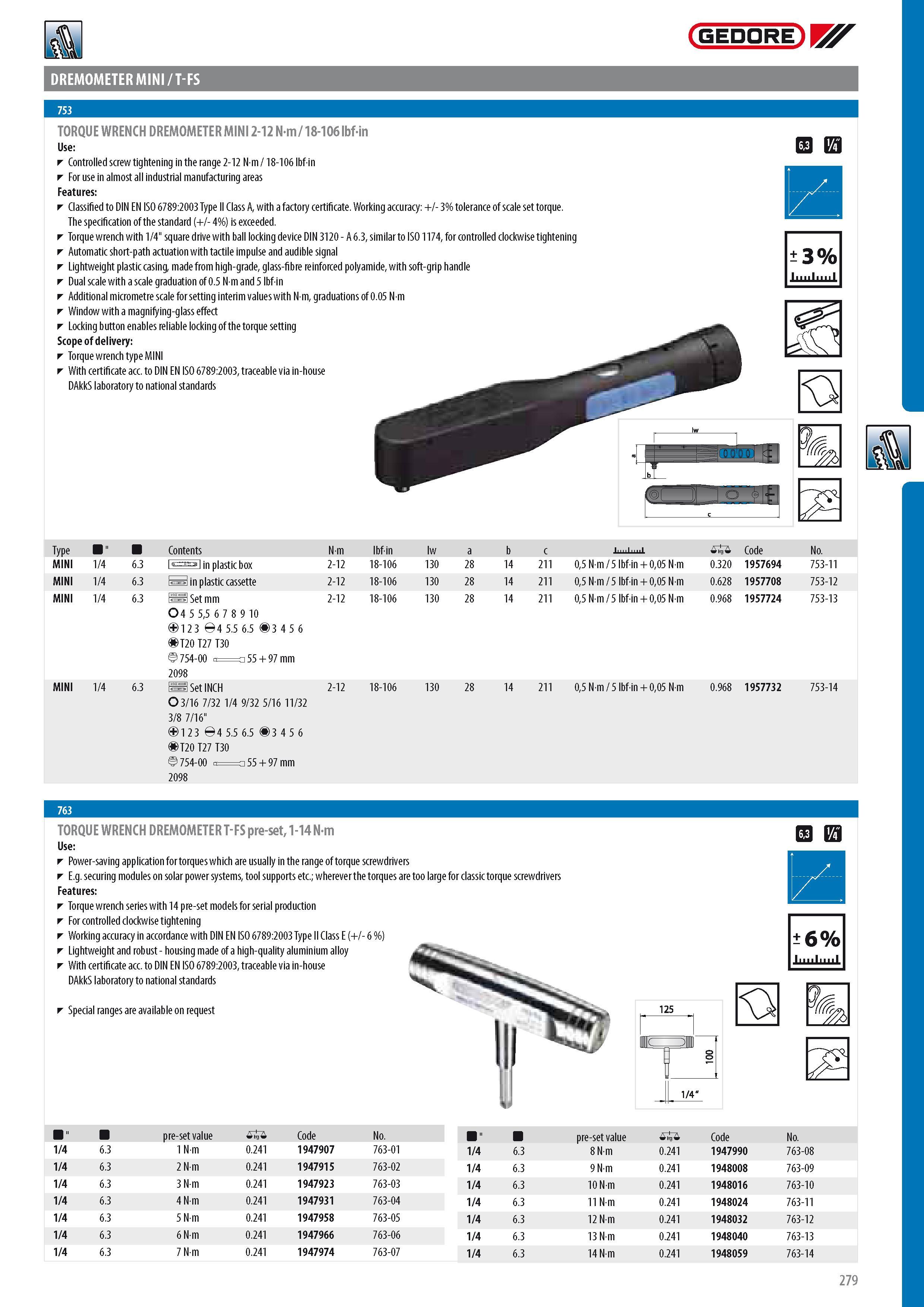

GEDORE DREMOMETER MINI T-FS TORQUE WRENCH DREMOMETER MINI 2-12 N-m 18-106 lbf-in Controlled screw tightening in the range 2-12 N m 18-106 lbf in For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3% tolerance of scale set torque. The specification of the standard (+ - 4%) is exceeded. Torque wrench with 1 4" square drive with ball locking device DIN 3120 - A 6.3 similar to ISO 1174 for controlled clockwise tightening Automatic short-path actuation with tactile impulse and audible signal Lightweight plastic casing made from high-grade glass-fibre reinforced polyamide with soft-grip handle Dual scale with a scale graduation of 0.5 N m and 5 lbf in Additional micrometre scale for setting interim values with N m graduations of 0.05 N m Window with a magnifying-glass effect Locking button enables reliable locking of the torque setting Scope of delivery Torque wrench type MINI With certificate acc. to DIN EN ISO 6789:2003 traceable via in-house DAkkS laboratory to national standards m b Type " Contents Nm lbfin lw a b c 0 Code No. MINI 1 4 6.3 in plastic box 2-12 18-106 130 28 14 211 05 Nm 5 lbfin + 005 Nm 0.320 1957694 753-11 MINI 1 4 6.3 3 in plastic cassette 2-12 18-106 130 28 14 211 05 Nm 5 lbfin + 005 Nm 0.628 1957708 753-12 MINI 1 4 6.3 Id Set mm 2-12 18-106 130 28 14 211 05 Nm 5 lbfin + 005 Nm 0.968 1957724 753-13 O 4 5 55 6 7 8 9 10 ; 1 2 3 4 5.5 6.5 5 3 4 5 6 T20 T27 T30 754-00 55 + 97 mm 2098 MINI 1 4 6.3 ( Set INCH O 3 16 7 32 1 4 9 32 5 16 11 32 3 8 7 16" ; 1 2 3 4 5.5 6.5 5 3 4 5 6 T20 T27 T30 754-00 55 + 97 mm 2098 14 211 05 Nm 5 lbfin + 005 Nm 0.968 1957732 753-14 TORQUE WRENCH DREMOMETER T-FS pre-set 1-14 Nm Use Power-saving application for torques which are usually in the range of torque screwdrivers E.g. securing modules on solar power systems tool supports etc.; wherever the torques are too large for classic torque screwdrivers Features Torque wrench series with 14 pre-set models for serial production For controlled clockwise tightening Working accuracy in accordance with DIN EN ISO 6789:2003 Type II Class E (+ - 6 %) Lightweight and robust - housing made of a high-quality aluminium alloy With certificate acc. to DIN EN ISO 6789:2003 traceable via in-house DAkkS laboratory to national standards Special ranges are available on request 125 & 1 4 m b 6% " pre-set value 0 Code No. " pre-set value 0 Code No. 1 4 6.3 1 Nm 0.241 1947907 763-01 1 4 6.3 8 Nm 0.241 1947990 763-08 1 4 6.3 2 Nm 0.241 1947915 763-02 1 4 6.3 9 Nm 0.241 1948008 763-09 1 4 6.3 3 Nm 0.241 1947923 763-03 1 4 6.3 10 Nm 0.241 1948016 763-10 1 4 6.3 4 Nm 0.241 1947931 763-04 1 4 6.3 11 Nm 0.241 1948024 763-11 1 4 6.3 5 Nm 0.241 1947958 763-05 1 4 6.3 12 Nm 0.241 1948032 763-12 1 4 6.3 6 Nm 0.241 1947966 763-06 1 4 6.3 13 Nm 0.241 1948040 763-13 1 4 6.3 7 Nm 0.241 1947974 763-07 1 4 6.3 14 Nm 0.241 1948059 763-14 753 763 279
