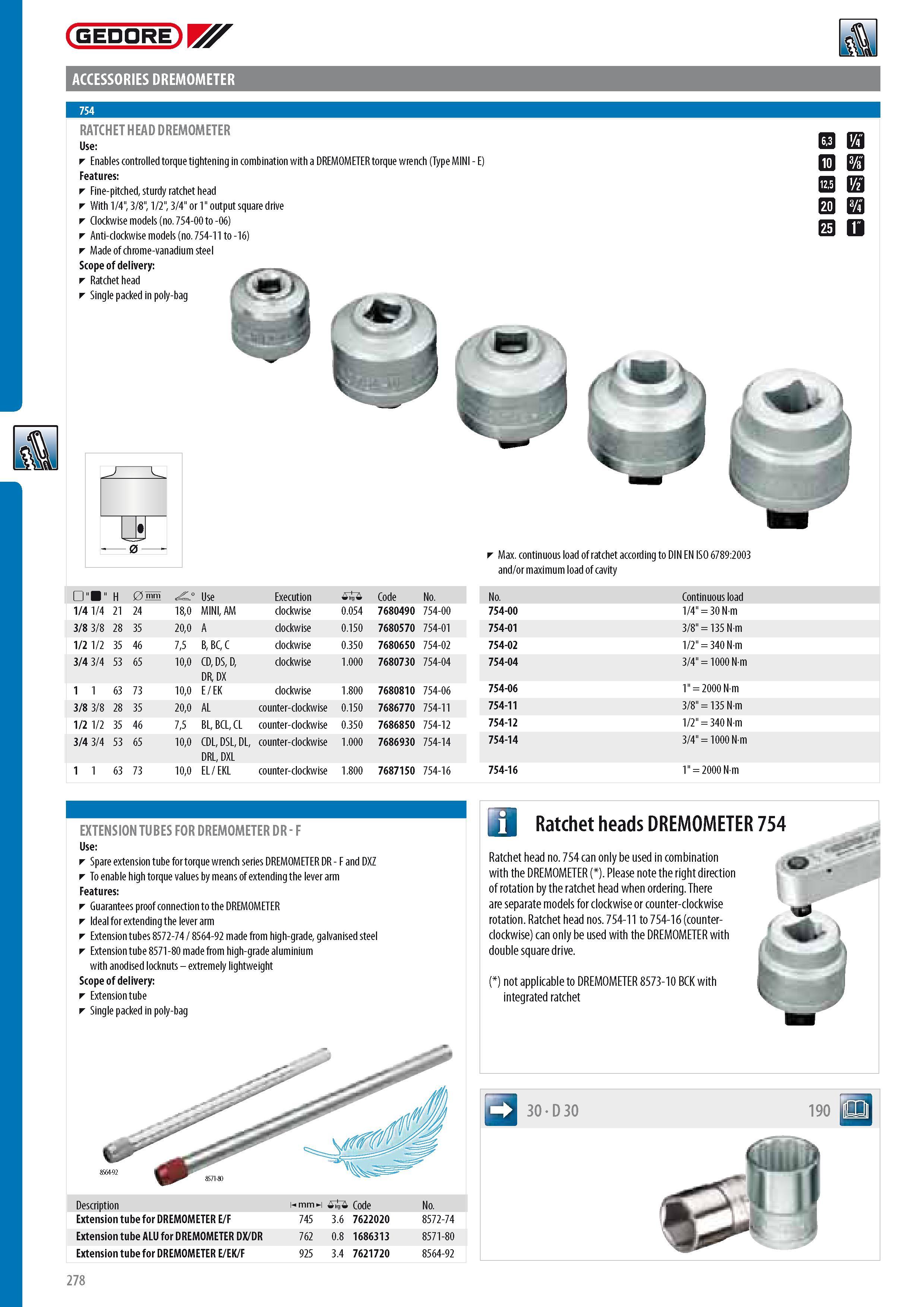

GEDORE ACCESSORIES DREMOMETER RATCHET HEAD DREMOMETER Use Enables controlled torque tightening in combination with a DREMOMETER torque wrench (Type MINI - E) Features Fine-pitched sturdy ratchet head With 1 4" 3 8" 1 2" 3 4" or 1" output square drive Clockwise models (no. 754-00 to -06) Anti-clockwise models (no. 754-11 to -16) Made of chrome-vanadium steel Scope of delivery Ratchet head Single packed in poly-bag m b n c o d p e r a Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load ot cavity " " H 0 mm A Use Execution 0 Code No. No. Continuous load 1 4 1 4 21 24 180 MINI AM clockwise 0.054 7680490 754-00 754-00 1 4" 30 Nm 3 8 3 8 28 35 200 A clockwise 0.150 7680570 754-01 754-01 3 8" 135 Nm 1 2 1 2 35 46 75 B BC C clockwise 0.350 7680650 754-02 754-02 1 2" 340 Nm 3 4 3 4 53 65 100 CD DS D DR DX clockwise 1.000 7680730 754-04 754-04 3 4" 1000 Nm 11 63 73 100 E EK clockwise 1.800 7680810 754-06 754-06 1" 2000 Nm 3 8 3 8 28 35 200 AL counter-clockwise 0.150 7686770 754-11 754-11 3 8" 135 Nm 1 2 1 2 35 46 75 BL BCL CL counter-clockwise 0.350 7686850 754-12 754-12 1 2" 340 Nm 3 4 3 4 53 65 100 CDL DSL DL DRL DXL counter-clockwise 1.000 7686930 754-14 754-14 3 4" 1000 Nm 11 63 73 100 EL EKL counter-clockwise 1.800 7687150 754-16 754-16 1" 2000 Nm 754 EXTENSION TUBES FOR DREMOMETER DR - F Use Spare extension tube for torque wrench series DREMOMETER DR - F and DXZ To enable high torque values by means of extending the lever arm Features Guarantees proof connection to the DREMOMETER Ideal for extending the lever arm Extension tubes 8572-74 8564-92 made from high-grade galvanised steel Extension tube 8571-80 made from high-grade aluminium with anodised locknuts - extremely lightweight Scope of delivery Extension tube Single packed in poly-bag 3 Ratchet heads DREMOMETER 754 Ratchet head no. 754 can only be used in combination with the DREMOMETER ( ). Please note the right direction of rotation by the ratchet head when ordering. There are separate models for clockwise or counter-clockwise rotation. Ratchet head nos. 754-11 to 754-16 (counterclockwise) can only be used with the DREMOMETER with double square drive. ( ) not applicable to DREMOMETER 8573-10 BCK with integrated ratchet Description mmH 0 Code No. Extension tube for DREMOMETER E F 745 3.6 7622020 8572-74 Extension tube ALU for DREMOMETER DX DR 762 0.8 1686313 8571-80 Extension tube for DREMOMETER E EK F 925 3.4 7621720 8564-92 A 30 D 30 278
