279 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.277

Каталог GEDORE 2014 Слесарный инструмент Стр. 277 0279 ENG Lab2u

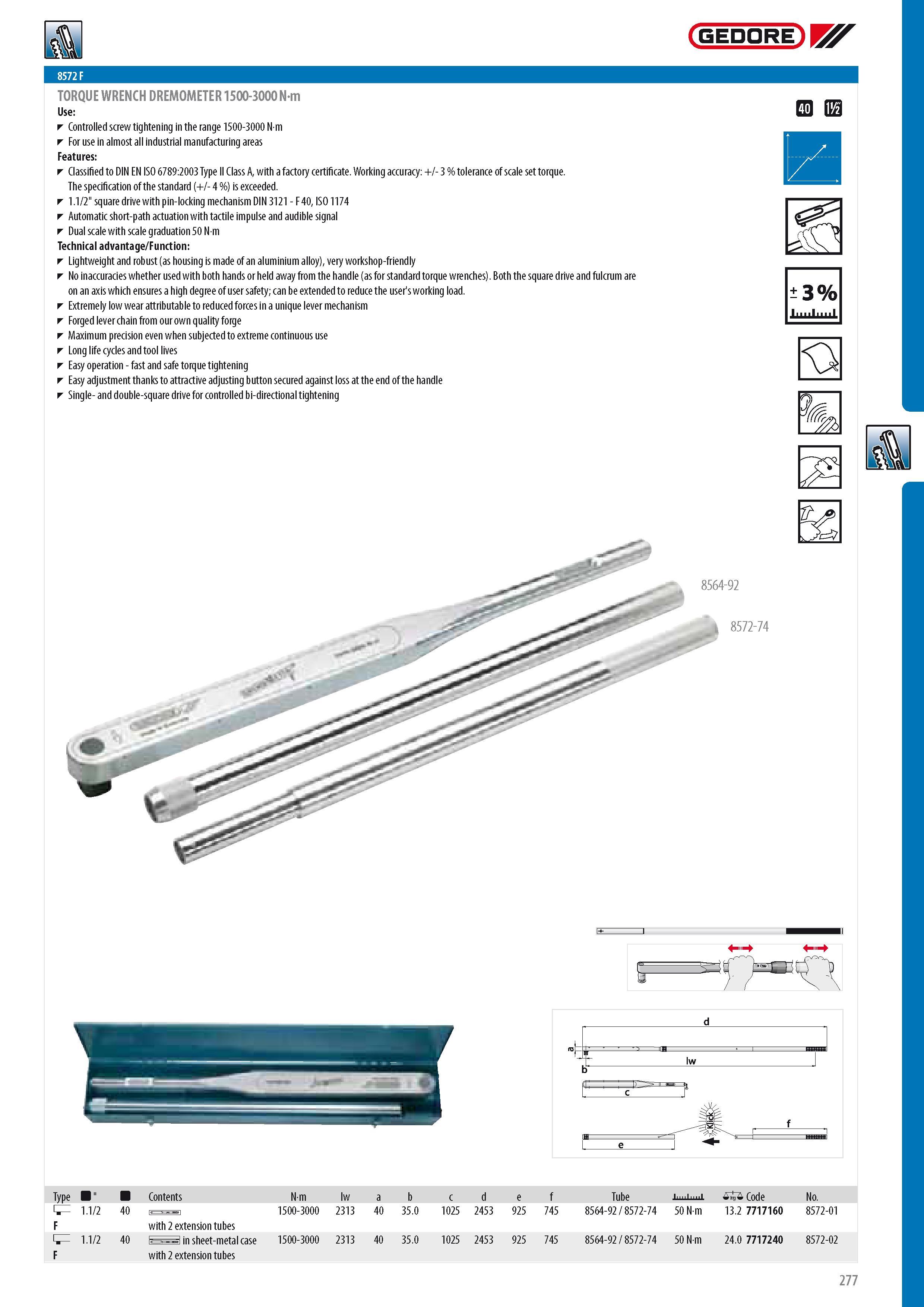

TORQUE WRENCH DREMOMETER 1500-3000 Nm Controlled screw tightening in the range 1500-3000 N m For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1.1 2" square drive with pin-locking mechanism DIN 3121 - F 40 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with scale graduation 50 N m Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening GEDORE v g 15 3% & 8564-92 Ja 8572-74 Iw e with 2 extension tubes Type " Contents Nm lw a b c d e f Tube . 0 Code No. s 1.1 2 40 1500-3000 2313 40 35.0 1025 2453 925 745 8564-92 8572-74 50 Nm 13.2 7717160 8572-01 F with 2 extension tubes s 1.1 2 40 i in sheet-metal case 1500-3000 2313 40 35.0 1025 2453 925 745 8564-92 8572-74 50 Nm 24.0 7717240 8572-02 8572 F F 277
