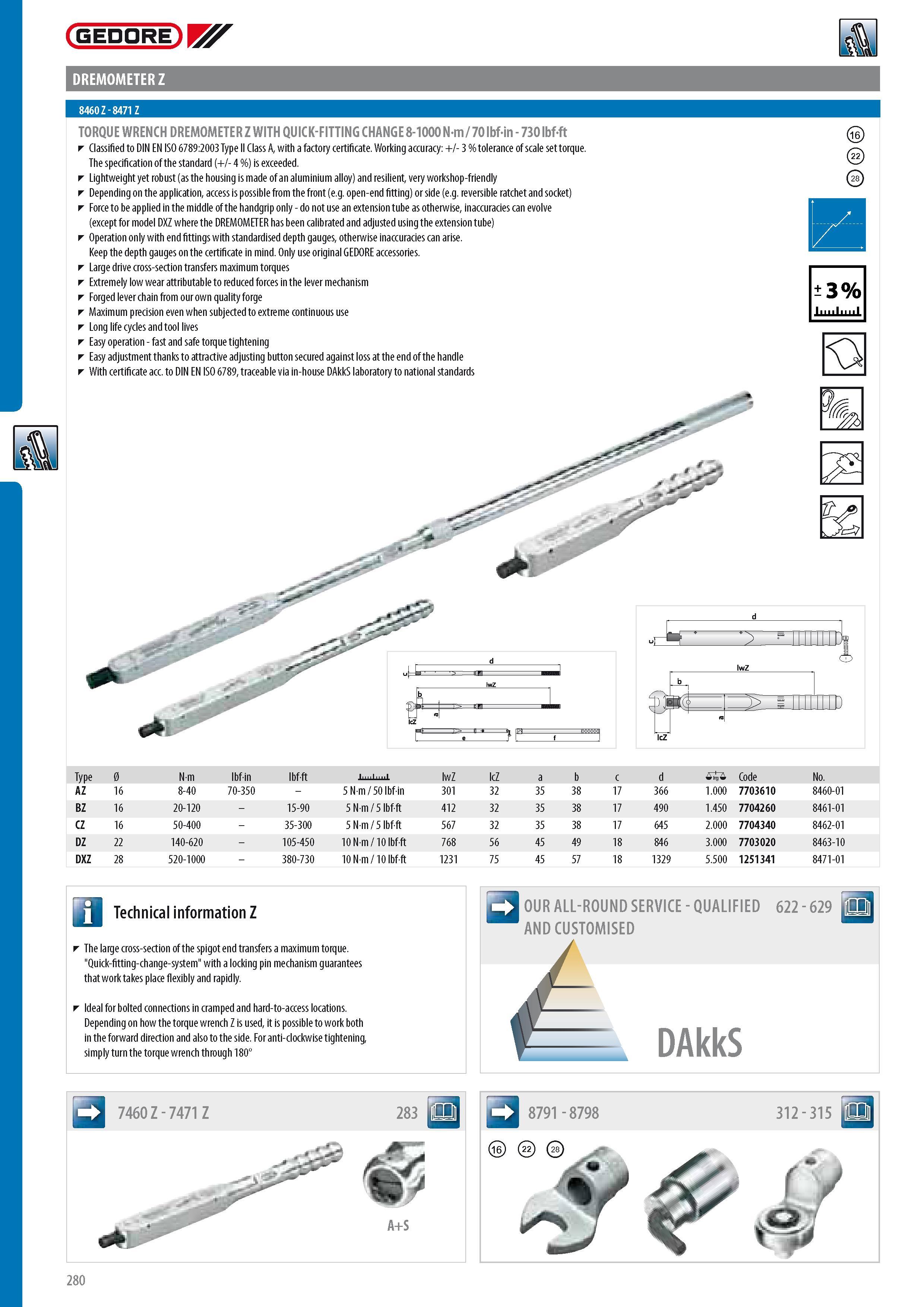

GEDORE DREMOMETER Z 8460Z- 8471Z TORQUE WRENCH DREMOMETER Z WITH QUICK-FITTING CHANGE 8-1000 Nm 70 lbfin - 730 lbf-ft Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient very workshop-friendly Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket) Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube) Operation only with end fittings with standardised depth gauges otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories. Large drive cross-section transfers maximum torques Extremely low wear attributable to reduced forces in the lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle With certificate acc. to DIN EN ISO 6789 traceable via in-house DAkkS laboratory to national standards 3% & Wry TTTTTTTt) Type 0 Nm lbfin lbf-ft lwZ lcZ a b c d 0 Code No. AZ 16 8-40 70-350 - 5 Nm 50 lbfin 301 32 35 38 17 366 1.000 7703610 8460-01 BZ 16 20-120 - 15-90 5 Nm 5 lbf-ft 412 32 35 38 17 490 1.450 7704260 8461-01 Z U 16 50-400 - 35-300 5 Nm 5 lbf-ft 567 32 35 38 17 645 2.000 7704340 8462-01 DZ 22 140-620 - 105-450 10 Nm 10 lbf-ft 768 56 45 49 18 846 3.000 7703020 8463-10 DXZ 28 520-1000 - 380-730 10 Nm 10 lbf-ft 1231 75 45 57 18 1329 5.500 1251341 8471-01 A Technical information Z The large cross-section of the spigot end transfers a maximum torque. "Quick-fitting-change-system" with a locking pin mechanism guarantees that work takes place flexibly and rapidly. Ideal for bolted connections in cramped and hard-to-access locations. Depending on how the torque wrench Z is used it is possible to work both in the forward direction and also to the side. For anti-clockwise tightening simply turn the torque wrench through 180 J OUR ALL-ROUND SERVICE - QUALIFIED 622 - 629 0M AND CUSTOMISED J 7460Z - 7471 Z A+S 3 8791 - 8798 ad 312 - 315 280
