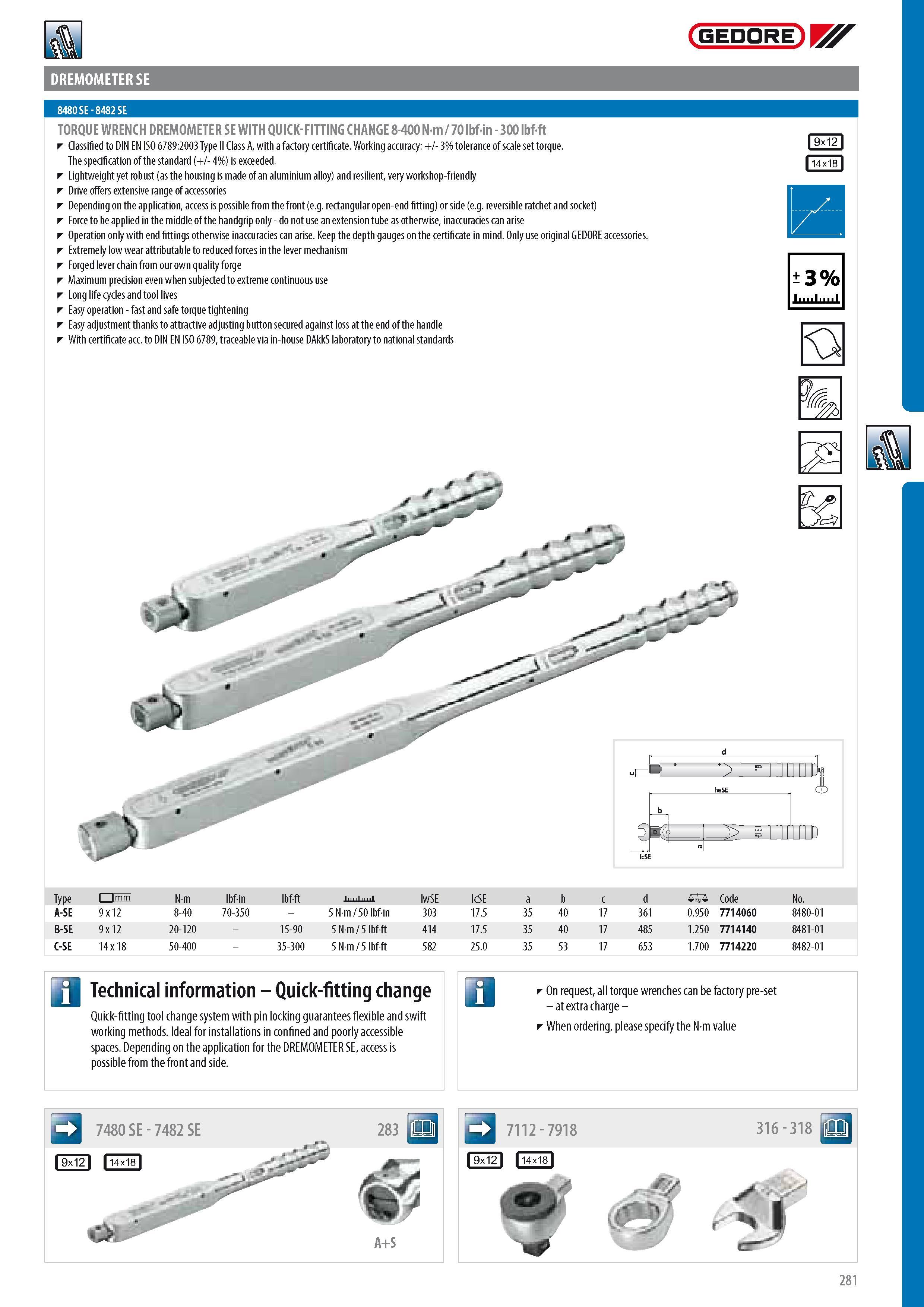

GEDORE DREMOMETER SE 8480 SE - 8482 SE TORQUE WRENCH DREMOMETER SE WITH QUICK-FITTING CHANGE 8-400 Nm 70 lbfin - 300 lbf-ft Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3% tolerance of scale set torque. The specification of the standard (+ - 4%) is exceeded. Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient very workshop-friendly Drive offers extensive range of accessories Depending on the application access is possible from the front (e.g. rectangular open-end fitting) or side (e.g. reversible ratchet and socket) Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise inaccuracies can arise Operation only with end fittings otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories. Extremely low wear attributable to reduced forces in the lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle With certificate acc. to DIN EN ISO 6789 traceable via in-house DAkkS laboratory to national standards I 9x12 114x18 3% & Wry Type 1 Imm Nm lbfin lbf-ft lwSE lcSE a b c d 0 Code No. A-SE 9 x 12 8-40 70-350 - 5 Nm 50 lbfin 303 17.5 35 40 17 361 0.950 7714060 8480-01 B-SE 9 x 12 20-120 - 15-90 5 Nm 5 lbf-ft 414 17.5 35 40 17 485 1.250 7714140 8481-01 C-SE 14 x 18 50-400 - 35-300 5 Nm 5 lbf-ft 582 25.0 35 53 17 653 1.700 7714220 8482-01 a Technical information - Quick-fitting change Quick-fitting tool change system with pin locking guarantees flexible and swift working methods. Ideal for installations in confined and poorly accessible spaces. Depending on the application for the DREMOMETER SE access is possible from the front and side. a On request all torque wrenches can be factory pre-set - at extra charge - When ordering please specify the N-m value 7480 SE-7482 SE I 9x12 114x181 I (' ' A+S 7112 - 7918 I 9x12 114x181 316 - 318 i' 281
