286 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.284

Каталог GEDORE 2014 Слесарный инструмент Стр. 284 0286 ENG Lab2u

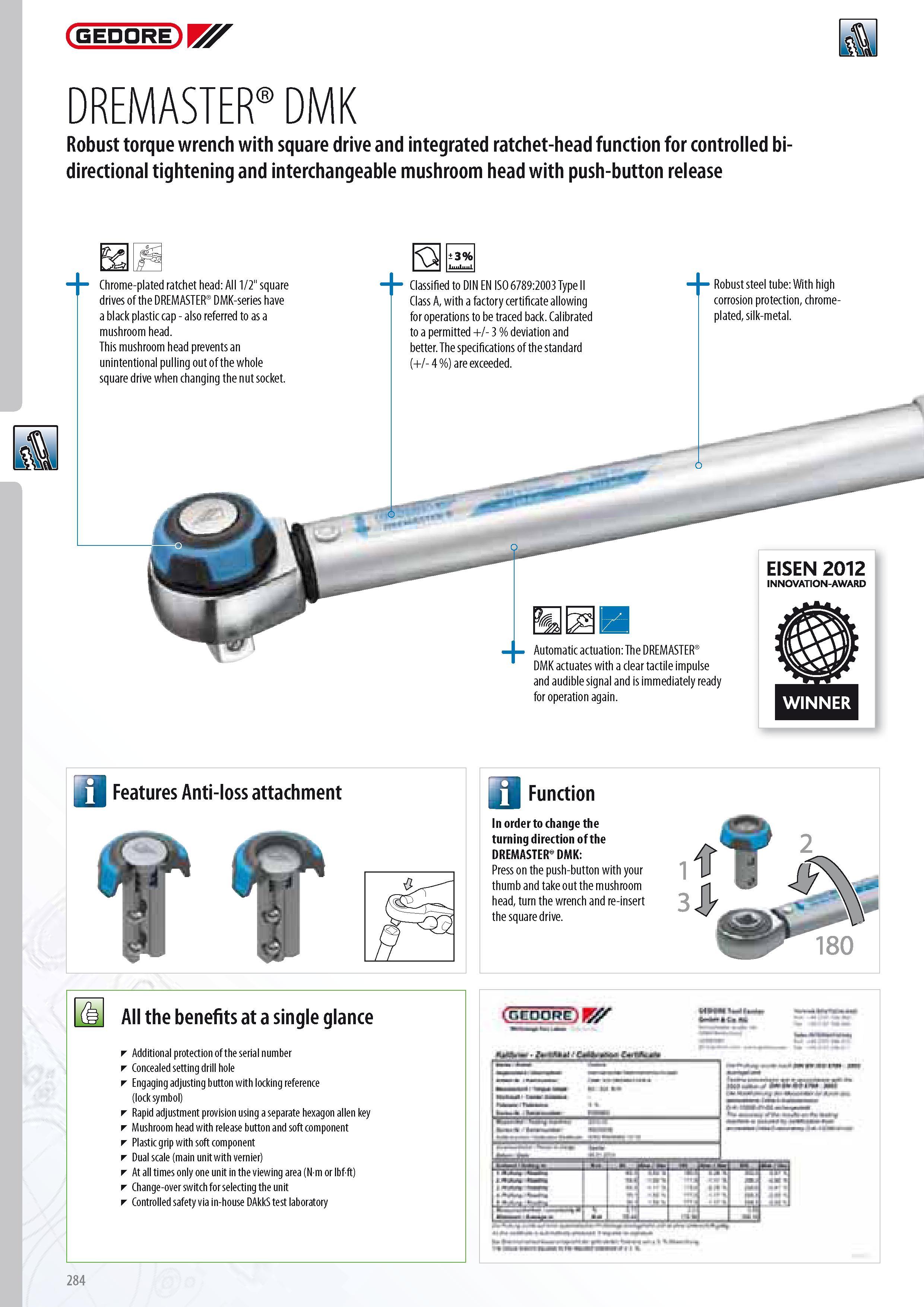

GEDORE DREMASTER DMK Robust torque wrench with square drive and integrated ratchet-head function for controlled bidirectional tightening and interchangeable mushroom head with push-button release m Fol 3% Chrome-plated ratchet head All 1 2" square drives of the DREMASTER DMK-series have a black plastic cap - also referred to as a mushroom head. This mushroom head prevents an unintentional pulling out of the whole square drive when changing the nut socket. Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate allowing for operations to be traced back. Calibrated to a permitted + - 3 % deviation and better. The specifications of the standard (+ - 4 %) are exceeded. Robust steel tube With high corrosion protection chrome-plated silk-metal. Automatic actuation The DREMASTER DMK actuates with a clear tactile impulse and audible signal and is immediately ready for operation again. EISEN 2012 IN NOVATION-AWARD WINNER Features Anti-loss attachment a Function In order to change the turning direction of the DREMASTER DMK Press on the push-button with your thumb and take out the mushroom head turn the wrench and re-insert the square drive. All the benefits at a single glance Additional protection of the serial number Concealed setting drill hole Engaging adjusting button with locking reference (lock symbol) Rapid adjustment provision using a separate hexagon allen key Mushroom head with release button and soft component Plastic grip with soft component Dual scale (main unit with vernier) At all times only one unit in the viewing area (N m or lbf-ft) Change-over switch for selecting the unit Controlled safety via in-house DAkkS test laboratory 284
