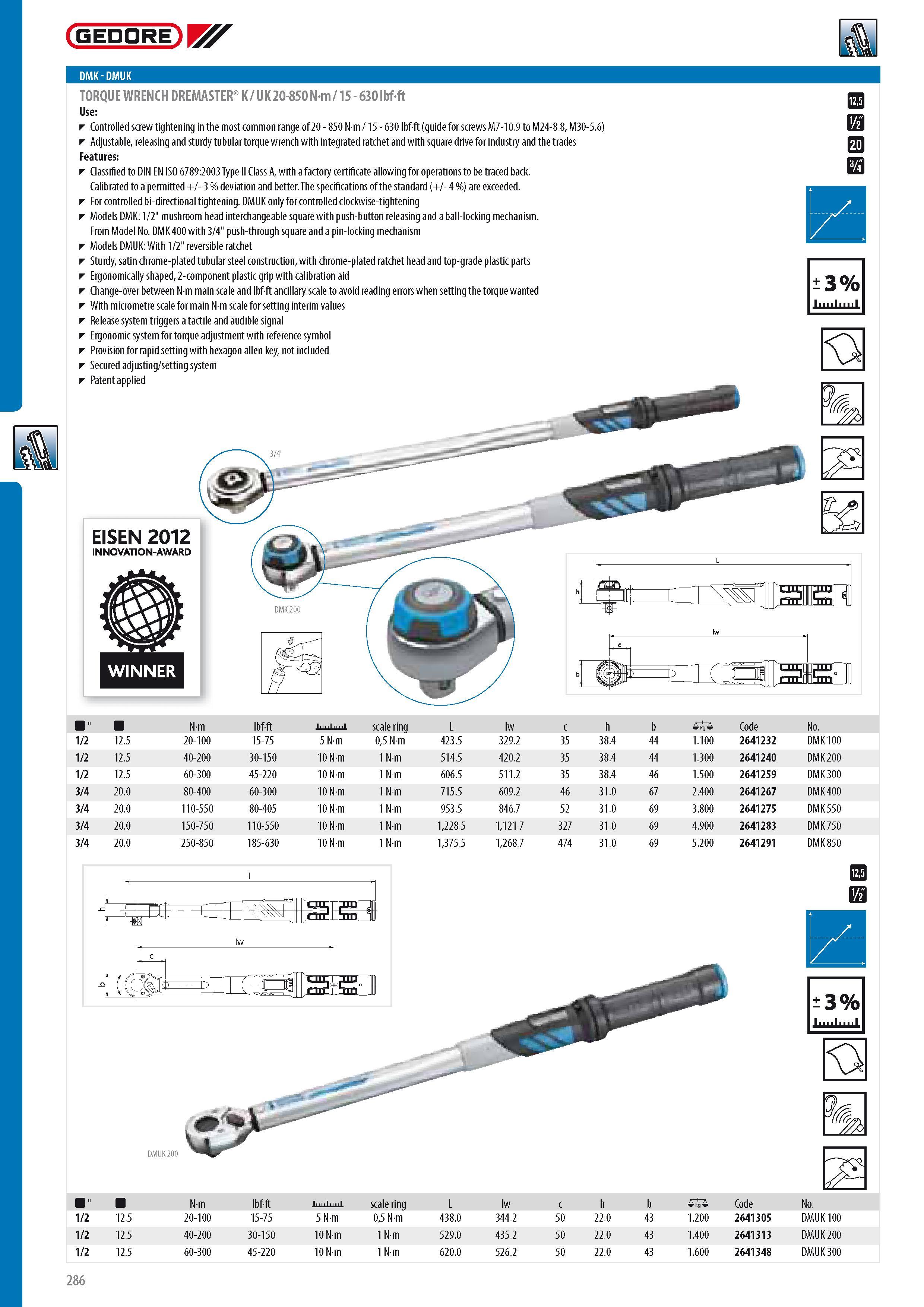

GEDORE DMK-DMUK TORQUE WRENCH DREMASTER K UK 20-850 N-m 15 - 630 lbf-ft Controlled screw tightening in the most common range of 20 - 850 N m 15 - 630 lbf-ft (guide for screws M7-10.9 to M24-8.8 M30-5.6) Adjustable releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate allowing for operations to be traced back. Calibrated to a permitted + - 3 % deviation and better. The specifications of the standard (+ - 4 %) are exceeded. For controlled bi-directional tightening. DMUK only for controlled clockwise-tightening Models DMK 1 2" mushroom head interchangeable square with push-button releasing and a ball-locking mechanism. From Model No. DMK 400 with 3 4" push-through square and a pin-locking mechanism Models DMUK With 1 2" reversible ratchet Sturdy satin chrome-plated tubular steel construction with chrome-plated ratchet head and top-grade plastic parts Ergonomically shaped 2-component plastic grip with calibration aid Change-over between N m main scale and lbf-ft ancillary scale to avoid reading errors when setting the torque wanted With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment with reference symbol Provision for rapid setting with hexagon allen key not included Secured adjusting setting system Patent applied o d p e & " Nm lbf-ft scale ring L lw c h b -0 Code No. 1 2 12.5 20-100 15-75 5 Nm 05 Nm 423.5 329.2 35 38.4 44 1.100 2641232 DMK 100 1 2 12.5 40-200 30-150 10 Nm 1 Nm 514.5 420.2 35 38.4 44 1.300 2641240 DMK 200 1 2 12.5 60-300 45-220 10 Nm 1 Nm 606.5 511.2 35 38.4 46 1.500 2641259 DMK 300 3 4 20.0 80-400 60-300 10 Nm 1 Nm 715.5 609.2 46 31.0 67 2.400 2641267 DMK 400 3 4 20.0 110-550 80-405 10 Nm 1 Nm 953.5 846.7 52 31.0 69 3.800 2641275 DMK 550 3 4 20.0 150-750 110-550 10 Nm 1 Nm 1228.5 1121.7 327 31.0 69 4.900 2641283 DMK 750 3 4 20.0 250-850 185-630 10 Nm 1 Nm 1375.5 1268.7 474 31.0 69 5.200 2641291 DMK 850 o d 3% & " Nm lbf-ft . scale ring L lw c h b 0 Code No. 1 2 12.5 20-100 15-75 5 Nm 05 Nm 438.0 344.2 50 22.0 43 1.200 2641305 DMUK 100 1 2 12.5 40-200 30-150 10 Nm 1 Nm 529.0 435.2 50 22.0 43 1.400 2641313 DMUK 200 1 2 12.5 60-300 45-220 10 Nm 1 Nm 620.0 526.2 50 22.0 43 1.600 2641348 DMUK 300 286
