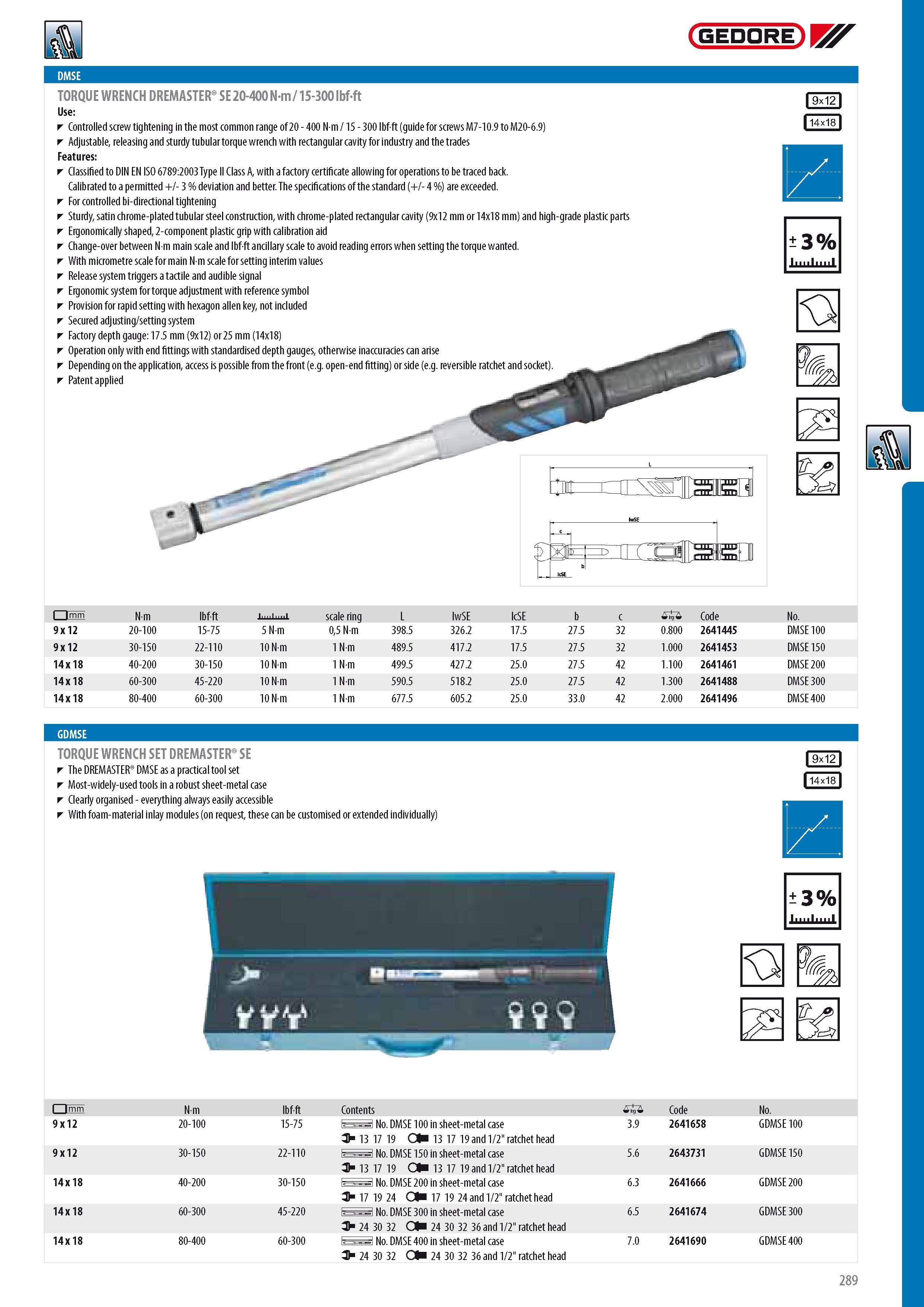

GEDORE TORQUE WRENCH DREMASTER SE 20-400 Nm 15-300 lbfft Controlled screw tightening in the most common range of 20 - 400 N m 15 - 300 lbf ft (guide for screws M7-10.9 to M20-6.9) Adjustable releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate allowing for operations to be traced back. Calibrated to a permitted + - 3 % deviation and better. The specifications of the standard (+ - 4 %) are exceeded. For controlled bi-directional tightening Sturdy satin chrome-plated tubular steel construction with chrome-plated rectangular cavity (9x12 mm or 14x18 mm) and high-grade plastic parts Ergonomically shaped 2-component plastic grip with calibration aid Change-over between N m main scale and lbf ft ancillary scale to avoid reading errors when setting the torque wanted. With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment with reference symbol Provision for rapid setting with hexagon allen key not included Secured adjusting setting system Factory depth gauge 17.5 mm (9x12) or 25 mm (14x18) Operation only with end fittings with standardised depth gauges otherwise inaccuracies can arise Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket). Patent applied I 9x12 114x181 3% & JT ViH IwSE I Imm 9 x 12 9 x 12 14 x 18 14 x 18 14 x 18 Nm lbfft scale ring L lwSE lcSE b c 0 Code No. 20-100 15-75 5 Nm 05 Nm 398.5 326.2 17.5 27.5 32 0.800 2641445 DMSE100 30-150 22-110 10 Nm 1 Nm 489.5 417.2 17.5 27.5 32 1.000 2641453 DMSE150 40-200 30-150 10 Nm 1 Nm 499.5 427.2 25.0 27.5 42 1.100 2641461 DMSE 200 60-300 45-220 10 Nm 1 Nm 590.5 518.2 25.0 27.5 42 1.300 2641488 DMSE 300 80-400 60-300 10 Nm 1 Nm 677.5 605.2 25.0 33.0 42 2.000 2641496 DMSE 400 TORQUE WRENCH SET DREMASTER SE The DREMASTER DMSE as a practical tool set Most-widely-used tools in a robust sheet-metal case Clearly organised - everything always easily accessible With foam-material inlay modules (on request these can be customised or extended individually) I 4 3% Wry I Nm lbfft Contents 0 Code No. 9 x 12 20-100 15-75 i No. DMSE 100 in sheet-metal case 1 13 17 19 4 13 17 19 and 1 2" ratchet head 3.9 2641658 GDMSE100 9 x 12 30-150 22-110 i No. DMSE 150 in sheet-metal case 1 13 17 19 4 13 17 19 and 1 2" ratchet head 5.6 2643731 GDMSE 150 14 x 18 40-200 30-150 i No. DMSE 200 in sheet-metal case 1 17 19 24 4 17 19 24 and 1 2" ratchet head 6.3 2641666 GDMSE 200 14 x 18 60-300 45-220 i No. DMSE 300 in sheet-metal case 1 24 30 32 4 24 30 32 36 and 1 2" ratchet head 6.5 2641674 GDMSE 300 14 x 18 80-400 60-300 i No. DMSE 400 in sheet-metal case 1 24 30 32 4 24 30 32 36 and 1 2" ratchet head 7.0 2641690 GDMSE 400 DMSE GDMSE 289
