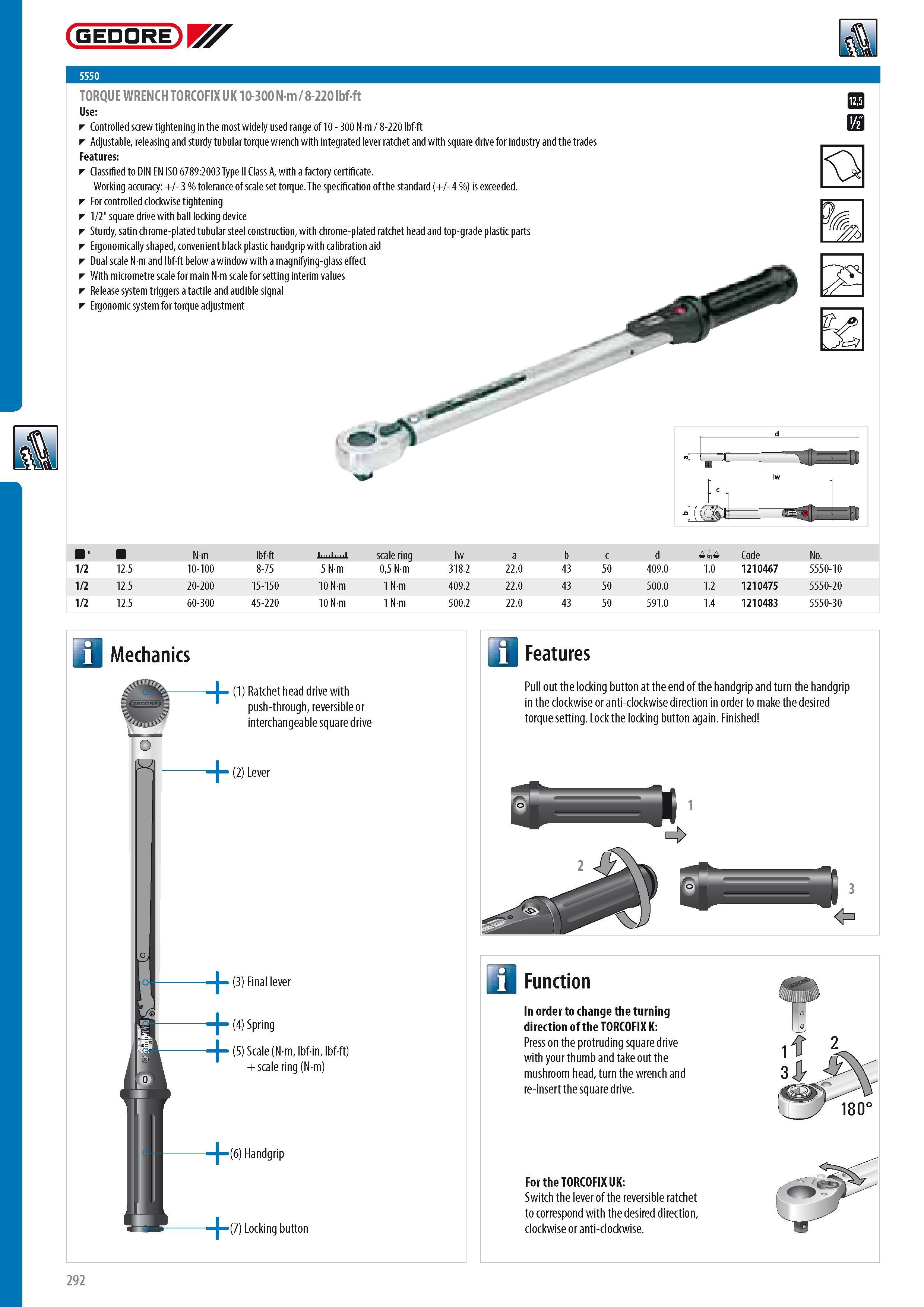

GEDORE TORQUE WRENCH TORCOFIX UK 10-300 Nm 8-220 lbf-ft Controlled screw tightening in the most widely used range of 10 - 300 N m 8-220 lbf-ft Adjustable releasing and sturdy tubular torque wrench with integrated lever ratchet and with square drive for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled clockwise tightening 1 2" square drive with ball locking device Sturdy satin chrome-plated tubular steel construction with chrome-plated ratchet head and top-grade plastic parts Ergonomically shaped convenient black plastic handgrip with calibration aid Dual scale N m and lbf-ft below a window with a magnifying-glass effect With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment o d & Wry 0 " Nm lbf-ft . scale ring lw a b c d 0 Code No. 1 2 12.5 10-100 8-75 5 Nm 05 Nm 318.2 22.0 43 50 409.0 1.0 1210467 5550-10 1 2 12.5 20-200 15-150 10 Nm 1 Nm 409.2 22.0 43 50 500.0 1.2 1210475 5550-20 1 2 12.5 60-300 45-220 10 Nm 1 Nm 500.2 22.0 43 50 591.0 1.4 1210483 5550-30 Mechanics + (1) Ratchet head drive with push-through reversible or interchangeable square drive H-(2) Lever f(3) Final lever (4) Spring - -(5) Scale (N-m lbfin lbf-ft) + scale ring (N-m) a Features Pull out the locking button at the end of the handgrip and turn the handgrip in the clockwise or anti-clockwise direction in order to make the desired torque setting. Lock the locking button again. Finished - (6) Handgrip - (7) Locking button a Function In order to change the turning direction of the TORCOFIX K Press on the protruding square drive with your thumb and take out the mushroom head turn the wrench and re-insert the square drive. For the TORCOFIX UK Switch the lever of the reversible ratchet to correspond with the desired direction clockwise or anti-clockwise. 3 iff 2 5550 292
