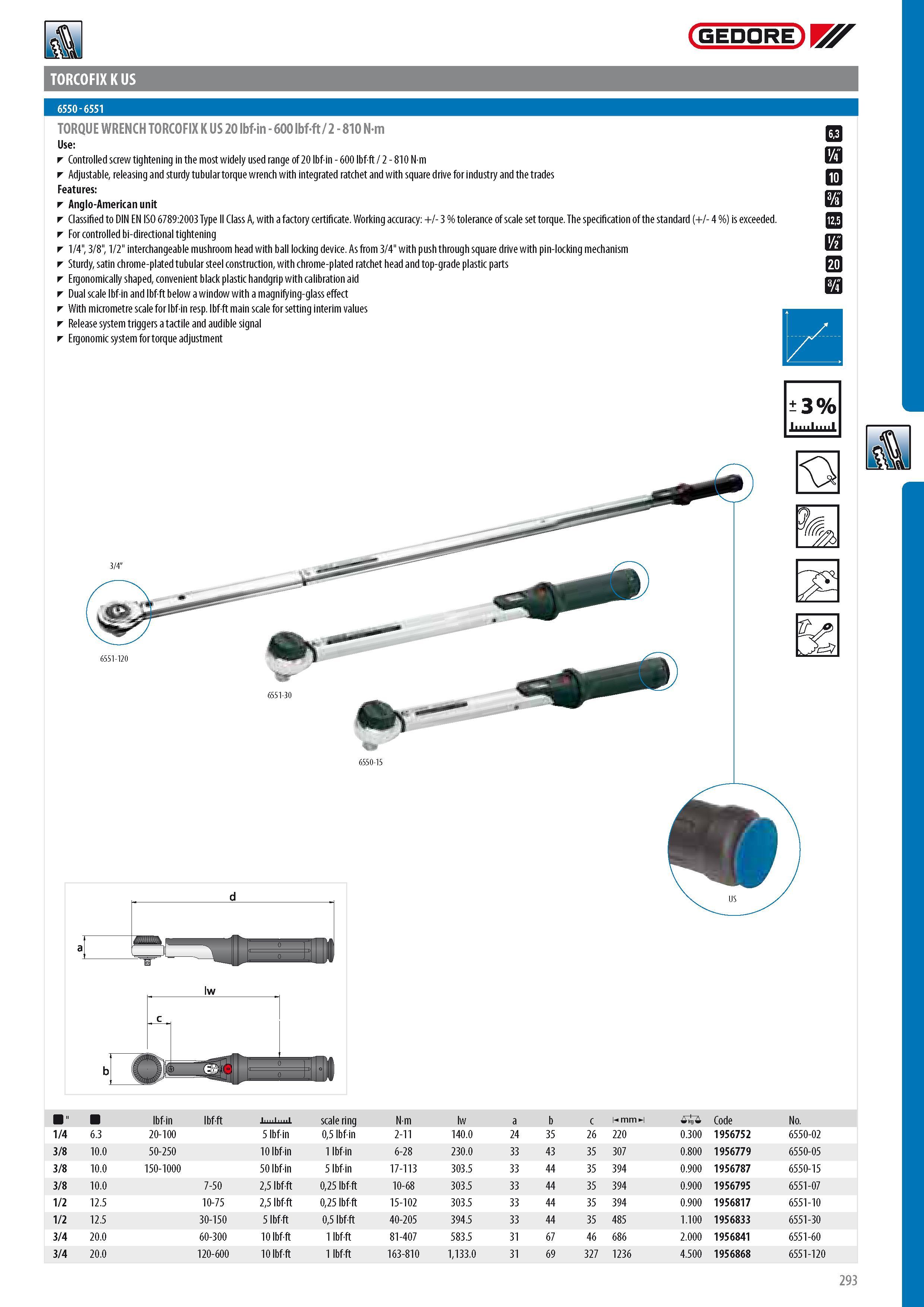

GEDORE TORCOFIX K US TORQUE WRENCH TORCOFIX K US 20 lbfin - 600 lbfft 2 - 810 Nm Controlled screw tightening in the most widely used range of 20 lbf in - 600 lbf ft 2 - 810 N m Adjustable releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features Anglo-American unit Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled bi-directional tightening 1 4" 3 8" 1 2" interchangeable mushroom head with ball locking device. As from 3 4" with push through square drive with pin-locking mechanism Sturdy satin chrome-plated tubular steel construction with chrome-plated ratchet head and top-grade plastic parts Ergonomically shaped convenient black plastic handgrip with calibration aid Dual scale lbf in and lbf ft below a window with a magnifying-glass effect With micrometre scale for lbf in resp. lbf ft main scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment m b n c o d p e 3% Iw " 1 4 3 8 3 8 3 8 1 2 1 2 3 4 3 4 6.3 10.0 10.0 10.0 12.5 12.5 20.0 20.0 lbfin 20-100 50-250 150-1000 lbfft 7-50 10-75 30-150 60-300 120-600 scale ring Nm lw a b c m mm ml -0 Code No. 5 lbfin 05 lbfin 2-11 140.0 24 35 26 220 0.300 1956752 6550-02 10 lbfin 1 lbfin 6-28 230.0 33 43 35 307 0.800 1956779 6550-05 50 lbfin 5 lbfin 17-113 303.5 33 44 35 394 0.900 1956787 6550-15 25 lbfft 025 lbfft 10-68 303.5 33 44 35 394 0.900 1956795 6551-07 25 lbfft 025 lbfft 15-102 303.5 33 44 35 394 0.900 1956817 6551-10 5 lbfft 05 lbfft 40-205 394.5 33 44 35 485 1.100 1956833 6551-30 10 lbfft 1 lbfft 81-407 583.5 31 67 46 686 2.000 1956841 6551-60 10 lbfft 1 lbfft 163-810 1133.0 31 69 327 1236 4.500 1956868 6551-120 6550 - 6551 293
