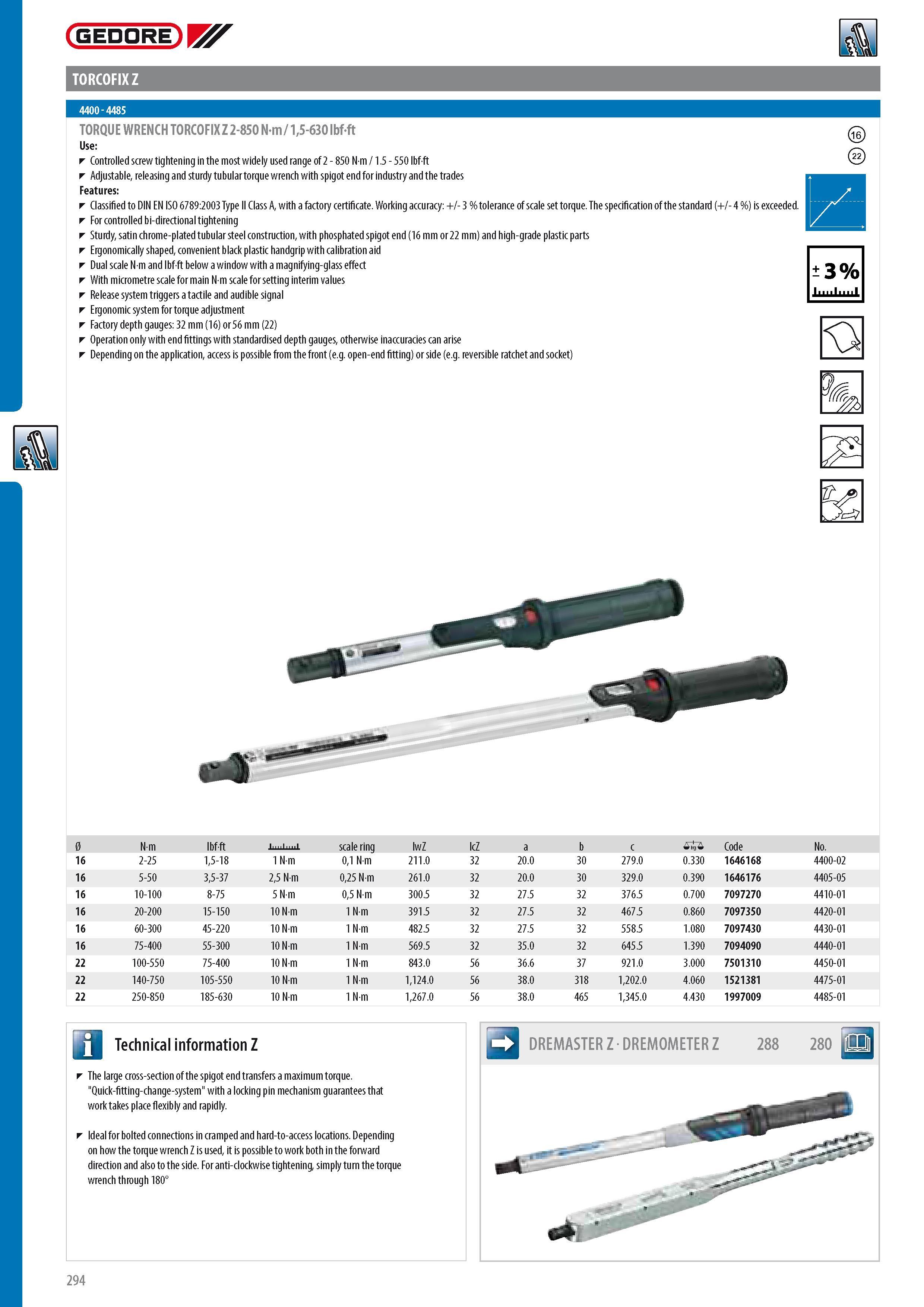

GEDORE TORCOFIX Z TORQUE WRENCH TORCOFIX Z 2-850 Nm 15-630 lbf-ft Controlled screw tightening in the most widely used range of 2 - 850 N m 1.5 - 550 lbf-ft Adjustable releasing and sturdy tubular torque wrench with spigot end for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled bi-directional tightening Sturdy satin chrome-plated tubular steel construction with phosphated spigot end (16 mm or 22 mm) and high-grade plastic parts Ergonomically shaped convenient black plastic handgrip with calibration aid Dual scale N m and lbf-ft below a window with a magnifying-glass effect With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment Factory depth gauges 32 mm (16) or 56 mm (22) Operation only with end fittings with standardised depth gauges otherwise inaccuracies can arise Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket) 0 3% & Wry 0 Nm lbf-ft scale ring lwZ lcZ a b c 0 Code No. 16 2-25 15-18 1 Nm 01 Nm 211.0 32 20.0 30 279.0 0.330 1646168 4400-02 16 5-50 35-37 25 Nm 025 Nm 261.0 32 20.0 30 329.0 0.390 1646176 4405-05 16 10-100 8-75 5 Nm 05 Nm 300.5 32 27.5 32 376.5 0.700 7097270 4410-01 16 20-200 15-150 10 Nm 1 Nm 391.5 32 27.5 32 467.5 0.860 7097350 4420-01 16 60-300 45-220 10 Nm 1 Nm 482.5 32 27.5 32 558.5 1.080 7097430 4430-01 16 75-400 55-300 10 Nm 1 Nm 569.5 32 35.0 32 645.5 1.390 7094090 4440-01 22 100-550 75-400 10 Nm 1 Nm 843.0 56 36.6 37 921.0 3.000 7501310 4450-01 22 140-750 105-550 10 Nm 1 Nm 1124.0 56 38.0 318 1202.0 4.060 1521381 4475-01 22 250-850 185-630 10 Nm 1 Nm 1267.0 56 38.0 465 1345.0 4.430 1997009 4485-01 a Technical information Z The large cross-section of the spigot end transfers a maximum torque. "Quick-fitting-change-system" with a locking pin mechanism guarantees that work takes place flexibly and rapidly. Ideal for bolted connections in cramped and hard-to-access locations. Depending on how the torque wrench Z is used it is possible to work both in the forward direction and also to the side. For anti-clockwise tightening simply turn the torque wrench through 180 294
