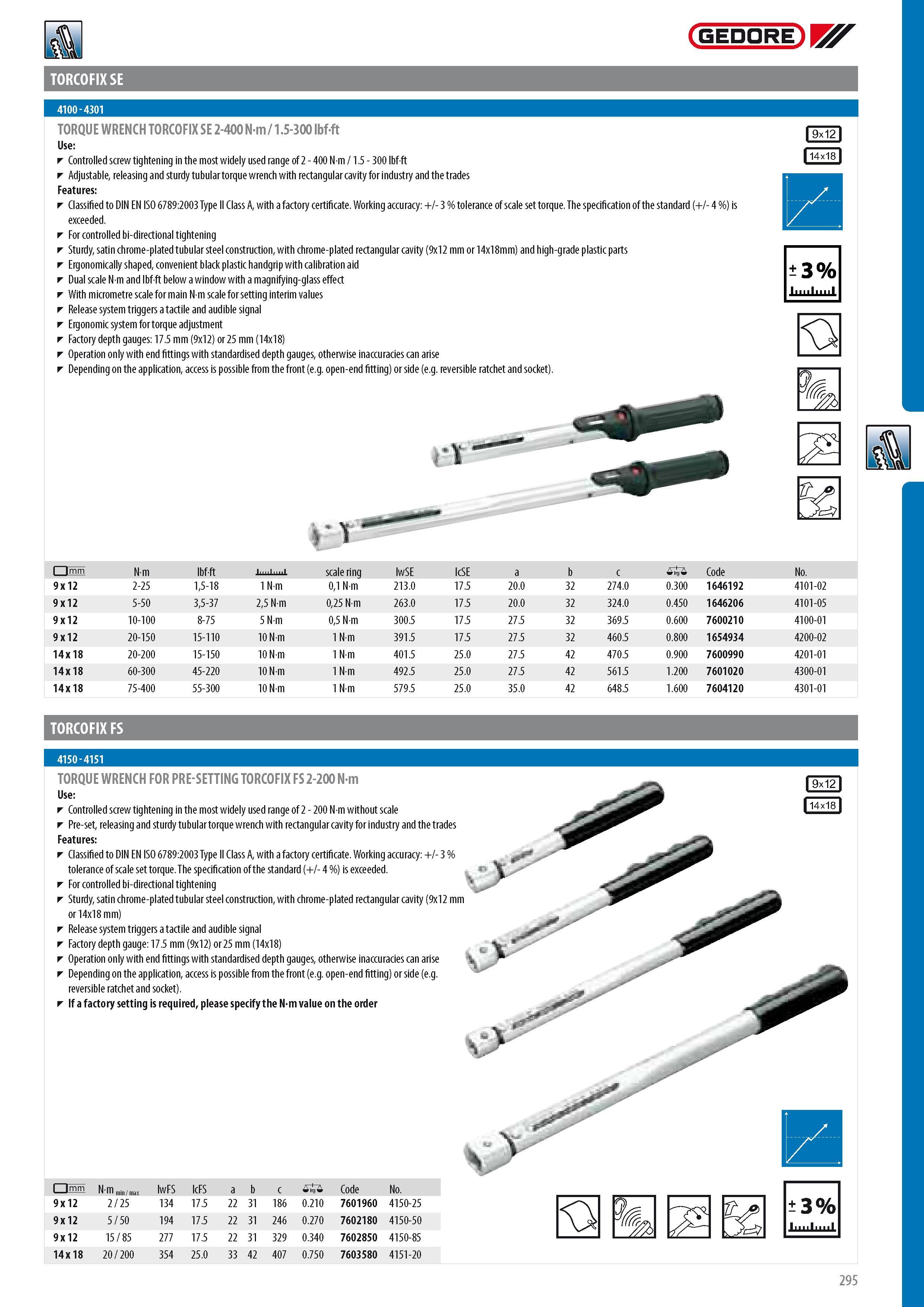

GEDORE TORCOFIX SE TORQUE WRENCH TORCOFIX SE 2-400 Nm 1.5-300 lbf-ft Controlled screw tightening in the most widely used range of 2 - 400 N m 1.5 - 300 lbf-ft Adjustable releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled bi-directional tightening Sturdy satin chrome-plated tubular steel construction with chrome-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts Ergonomically shaped convenient black plastic handgrip with calibration aid Dual scale N m and lbf-ft below a window with a magnifying-glass effect With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment Factory depth gauges 17.5 mm (9x12) or 25 mm (14x18) Operation only with end fittings with standardised depth gauges otherwise inaccuracies can arise Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket). I 9x12 114x18 3% & Wry 1 Imm Nm lbf-ft scale ring lwSE lcSE a b c -0 Code No. 9 x 12 2-25 15-18 1 Nm 01 Nm 213.0 17.5 20.0 32 274.0 0.300 1646192 4101-02 9 x 12 5-50 35-37 25 Nm 025 Nm 263.0 17.5 20.0 32 324.0 0.450 1646206 4101-05 9 x 12 10-100 8-75 5 Nm 05 Nm 300.5 17.5 27.5 32 369.5 0.600 7600210 4100-01 9 x 12 20-150 15-110 10 Nm 1 Nm 391.5 17.5 27.5 32 460.5 0.800 1654934 4200-02 14 x 18 20-200 15-150 10 Nm 1 Nm 401.5 25.0 27.5 42 470.5 0.900 7600990 4201-01 14 x 18 60-300 45-220 10 Nm 1 Nm 492.5 25.0 27.5 42 561.5 1.200 7601020 4300-01 14 x 18 75-400 55-300 10 Nm 1 Nm 579.5 25.0 35.0 42 648.5 1.600 7604120 4301-01 TORCOFIX FS TORQUE WRENCH FOR PRE-SETTING TORCOFIX FS 2-200 Nm Use Controlled screw tightening in the most widely used range of 2 - 200 N m without scale Pre-set releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled bi-directional tightening Sturdy satin chrome-plated tubular steel construction with chrome-plated rectangular cavity (9x12 mm or 14x18 mm) Release system triggers a tactile and audible signal Factory depth gauge 17.5 mm (9x12) or 25 mm (14x18) Operation only with end fittings with standardised depth gauges otherwise inaccuracies can arise ' Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket). If a factory setting Is required please specify the N-m value on the order v I 4 m N'm min max lwFS lcFS a b c 0 Code No. 9 x 12 2 25 134 17.5 22 31 186 0.210 7601960 4150-25 9 x 12 5 50 194 17.5 22 31 246 0.270 7602180 4150-50 9 x 12 15 85 277 17.5 22 31 329 0.340 7602850 4150-85 14 x 18 20 200 354 25.0 33 42 407 0.750 7603580 4151-20 3% 11111 4100 - 4301 4150 - 4151 295
