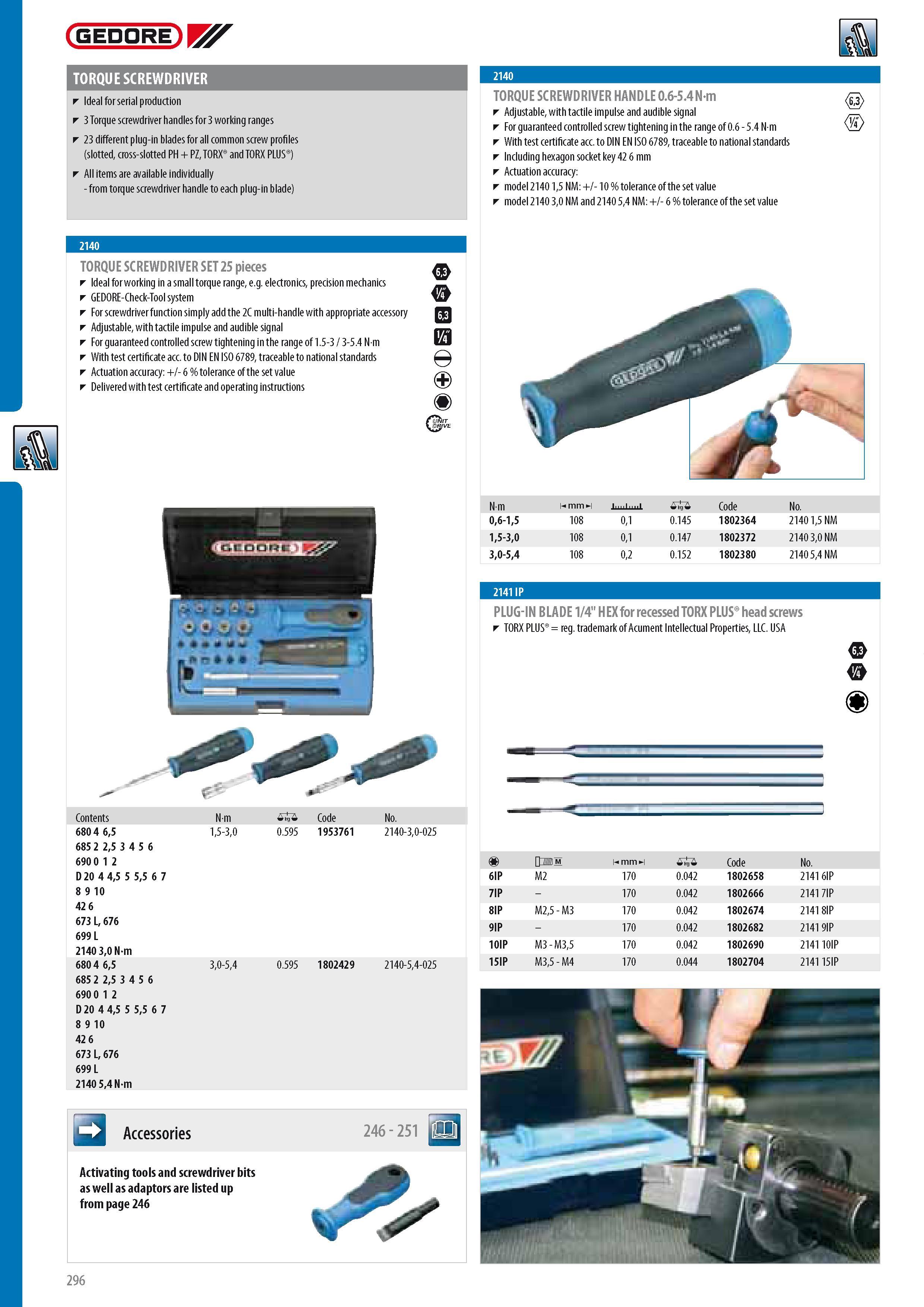

GEDORE TORQUE SCREWDRIVER Ideal for serial production 3 Torque screwdriver handles for 3 working ranges 23 different plug-in blades for all common screw profiles (slotted cross-slotted PH + PZ TORX and TORX PLUS ) All items are available individually - from torque screwdriver handle to each plug-in blade) TORQUE SCREWDRIVER HANDLE 0.6-5.4 Nm Adjustable with tactile impulse and audible signal For guaranteed controlled screw tightening in the range of 0.6 - 5.4 N m With test certificate acc. to DIN EN ISO 6789 traceable to national standards Including hexagon socket key 42 6 mm Actuation accuracy model 2140 15 NM + - 10 % tolerance of the set value model 2140 30 NM and 2140 54 NM + - 6 % tolerance of the set value E Y 2140 TORQUE SCREWDRIVER SET 25 pieces Ideal for working in a small torque range e.g. electronics precision mechanics GEDORE-Check-Tool system For screwdriver function simply add the 2C multi-handle with appropriate accessory Adjustable with tactile impulse and audible signal For guaranteed controlled screw tightening in the range of 1.5-3 3-5.4 N m With test certificate acc. to DIN EN ISO 6789 traceable to national standards Actuation accuracy + - 6 % tolerance of the set value Delivered with test certificate and operating instructions e i m b 5 fmiiT 3' Contents Nm 0 Code No. 680 4 65 685 2 25 3 4 5 6 690 0 1 2 D 20 4 45 5 55 6 7 8 9 10 42 6 673 L 676 699 L 2140 30 Nm 15-30 0.595 1953761 2140-30-025 680 4 65 685 2 25 3 4 5 6 690 0 1 2 D 20 4 45 5 55 6 7 8 9 10 42 6 673 L 676 699 L 2140 54 Nm 30-54 0.595 1802429 2140-54-025 3 Accessories 246 - 251 Activating tools and screwdriver bits as well as adaptors are listed up from page 246 Nm m mm ml 0 Code No. 06-15 108 01 0.145 1802364 2140 15 NM 15-30 108 01 0.147 1802372 2140 30 NM 30-54 108 02 0.152 1802380 2140 54 NM 2141 IP PLUG-IN BLADE 1 4" HEX for recessed TORX PLUS head screws TORX PLUS reg. trademark of Acument Intellectual Properties LLC. USA m 0 Code No. 6IP M2 170 0.042 1802658 2141 6IP 7IP - 170 0.042 1802666 2141 7IP 8IP M25 - M3 170 0.042 1802674 2141 8IP 9IP - 170 0.042 1802682 2141 9IP 10IP M3 - M35 170 0.042 1802690 2141 10IP 15IP M35 - M4 170 0.044 1802704 2141 15IP 296 2140
