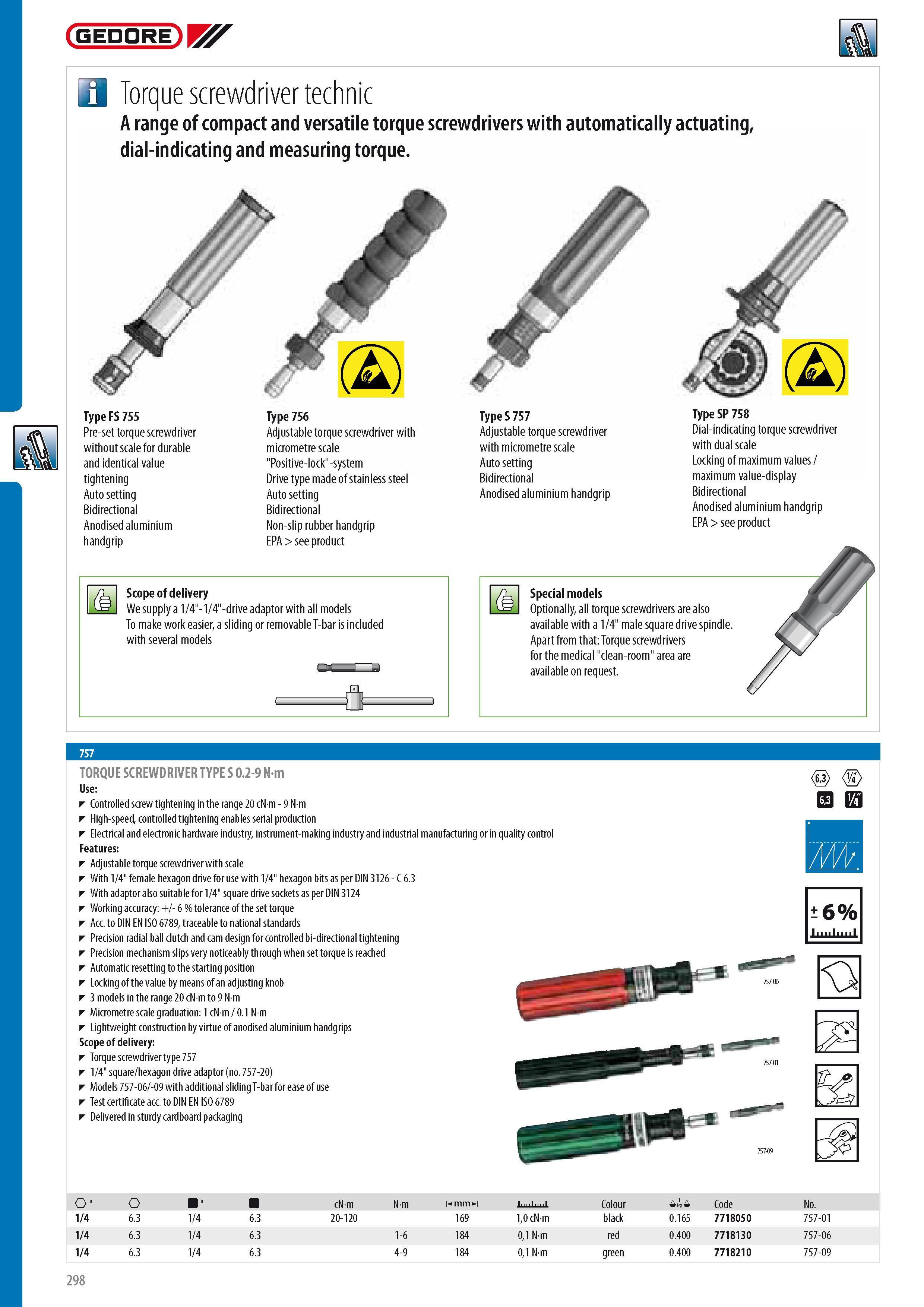

GEDORE Torque screwdriver technic A range of compact and versatile torque screwdrivers with automatically actuating dial-indicating and measuring torque. Type FS 755 Pre-set torque screwdriver without scale for durable and identical value tightening Auto setting Bidirectional Anodised aluminium handgrip Type 756 Adjustable torque screwdriver with micrometre scale "Positive-lock"-system Drive type made of stainless steel Auto setting Bidirectional Non-slip rubber handgrip EPA see product TypeS757 Adjustable torque screwdriver with micrometre scale Auto setting Bidirectional Anodised aluminium handgrip Type SP 758 Dial-indicating torque screwdriver with dual scale Locking of maximum values maximum value-display Bidirectional Anodised aluminium handgrip EPA see product Scope of delivery We supply a 1 4"-1 4"-drive adaptor with all models To make work easier a sliding or removable T-bar is included with several models Special models Optionally all torque screwdrivers are also available with a 1 4" male square drive spindle. Apart from that Torque screwdrivers for the medical "clean-room" area are available on request. TORQUE SCREWDRIVER TYPE S 0.2-9 Nm Controlled screw tightening in the range 20 cNm - 9 N m High-speed controlled tightening enables serial production Electrical and electronic hardware industry instrument-making industry and industrial manufacturing or in quality control Features Adjustable torque screwdriver with scale With 1 4" female hexagon drive for use with 1 4" hexagon bits as per DIN 3126 - C 6.3 With adaptor also suitable for 1 4" square drive sockets as per DIN 3124 Working accuracy + - 6 % tolerance of the set torque Acc. to DIN EN ISO 6789 traceable to national standards Precision radial ball clutch and cam design for controlled bi-directional tightening Precision mechanism slips very noticeably through when set torque is reached Automatic resetting to the starting position Locking of the value by means of an adjusting knob 3 models in the range 20 cN m to 9 N m Micrometre scale graduation 1 cN m 0.1 N m Lightweight construction by virtue of anodised aluminium handgrips Scope of delivery Torque screwdriver type 757 1 4" square hexagon drive adaptor (no. 757-20) Models 757-06 -09 with additional sliding T-bar for ease of use Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging E Y m b 6% 11111 & 5 O" O " cNm Nm m mm ml Colour 0 Code No. 1 4 6.3 1 4 6.3 20-120 169 10 cNm black 0.165 7718050 757-01 1 4 .3 6. 1 4 6.3 1-6 184 01 Nm red 0.400 7718130 757-06 1 4 6.3 1 4 .3 6. 4-9 184 01 Nm green 0.400 7718210 757-09 298 757 757-09
