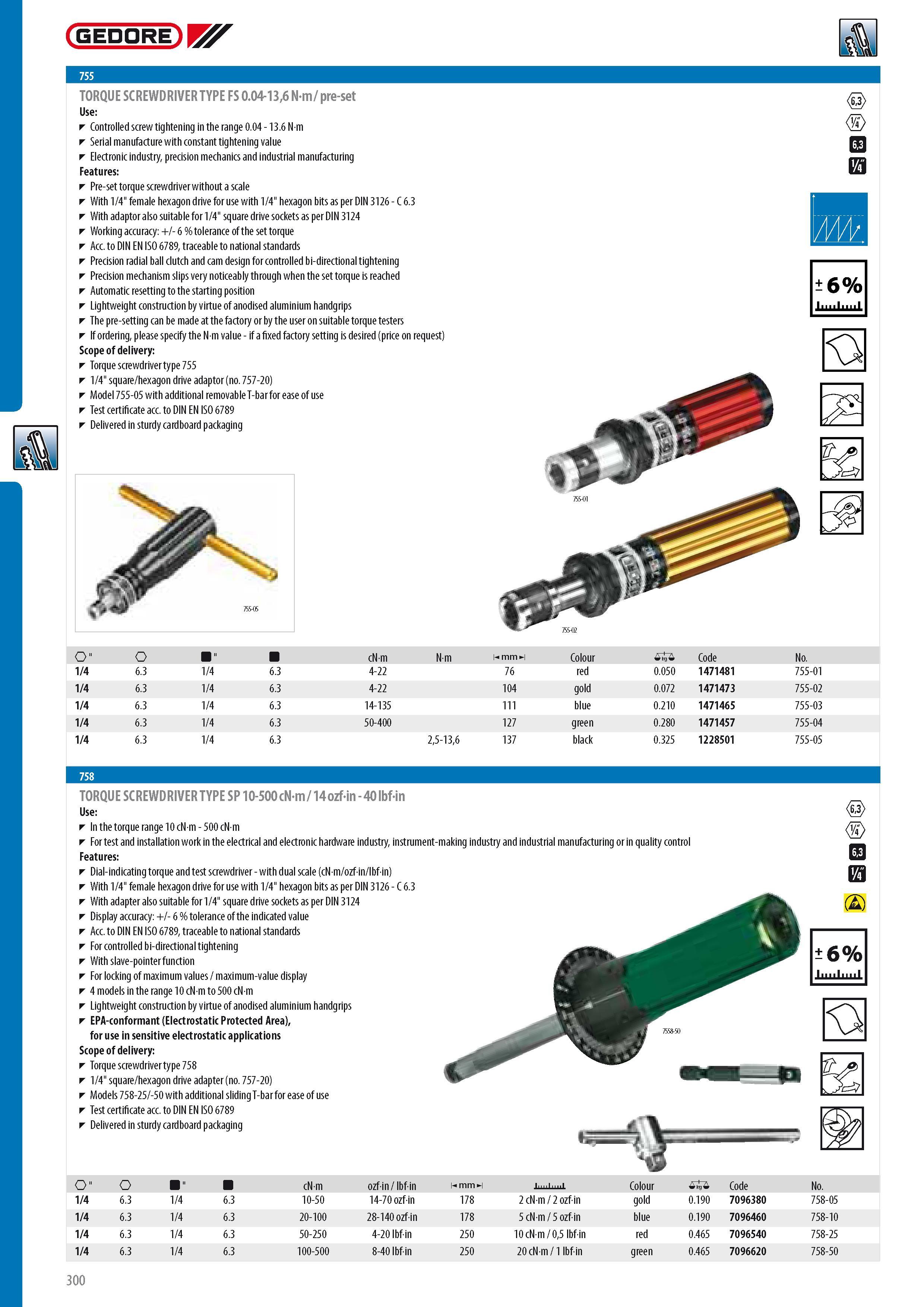

GEDORE TORQUE SCREWDRIVER TYPE FS 0.04-136 Nm pre-set Use Controlled screw tightening in the range 0.04 - 13.6 N m Serial manufacture with constant tightening value Electronic industry precision mechanics and industrial manufacturing Features Pre-set torque screwdriver without a scale With 1 4" female hexagon drive for use with 1 4" hexagon bits as per DIN 3126 - C 6.3 With adaptor also suitable for 1 4" square drive sockets as per DIN 3124 Working accuracy + - 6 % tolerance of the set torque Acc. to DIN EN ISO 6789 traceable to national standards Precision radial ball clutch and cam design for controlled bi-directional tightening Precision mechanism slips very noticeably through when the set torque is reached Automatic resetting to the starting position Lightweight construction by virtue of anodised aluminium handgrips The pre-setting can be made at the factory or by the user on suitable torque testers If ordering please specify the N m value - if a fixed factory setting is desired (price on request) Scope of delivery Torque screwdriver type 755 1 4" square hexagon drive adaptor (no. 757-20) Model 755-05 with additional removable T-bar for ease of use Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging E Y m b m 6% & O" O " cNm Nm m mm ml Colour 0 Code No. 1 4 6.3 1 4 6.3 4-22 76 red 0.050 1471481 755-01 1 4 6.3 1 4 6.3 4-22 104 gold 0.072 1471473 755-02 1 4 6.3 1 4 6.3 14-135 111 blue 0.210 1471465 755-03 1 4 6.3 1 4 6.3 50-400 127 green 0.280 1471457 755-04 1 4 6.3 1 4 6.3 25-136 137 black 0.325 1228501 755-05 758 TORQUE SCREWDRIVER TYPE SP 10-500 cNm 14 ozfin - 40 lbfin Use E In the torque range 10 cNm - 500 cNm For test and installation work in the electrical and electronic hardware industry instrument-making industry and industrial manufacturing or in quality control Features Dial-indicating torque and test screwdriver - with dual scale (cN m ozf in lbf in) With 1 4" female hexagon drive for use with 1 4" hexagon bits as per DIN 3126 - C 6.3 With adapter also suitable for 1 4" square drive sockets as per DIN 3124 Display accuracy + - 6 % tolerance of the indicated value Acc. to DIN EN ISO 6789 traceable to national standards For controlled bi-directional tightening With slave-pointer function For locking of maximum values maximum-value display 4 models in the range 10 cN m to 500 cN m Lightweight construction by virtue of anodised aluminium handgrips EPA-conformant (Electrostatic Protected Area) for use in sensitive electrostatic applications Scope of delivery Torque screwdriver type 758 1 4" square hexagon drive adapter (no. 757-20) Models 758-25 -50 with additional sliding T-bar for ease of use Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging Y m b (2) O " O " cNm ozfin lbfin m mm ml . Colour 0 Code No. 1 4 6.3 1 4 6.3 10-50 14-70 ozfin 178 2 cNm 2 ozfin gold 0.190 7096380 758-05 1 4 6.3 1 4 6.3 20-100 28-140 ozfin 178 5 cNm 5 ozfin blue 0.190 7096460 758-10 1 4 6.3 1 4 6.3 50-250 4-20 lbfin 250 10 cNm 05 lbfin red 0.465 7096540 758-25 1 4 6.3 1 4 6.3 100-500 8-40 lbfin 250 20 cNm 1 lbfin green 0.465 7096620 758-50 755 300
