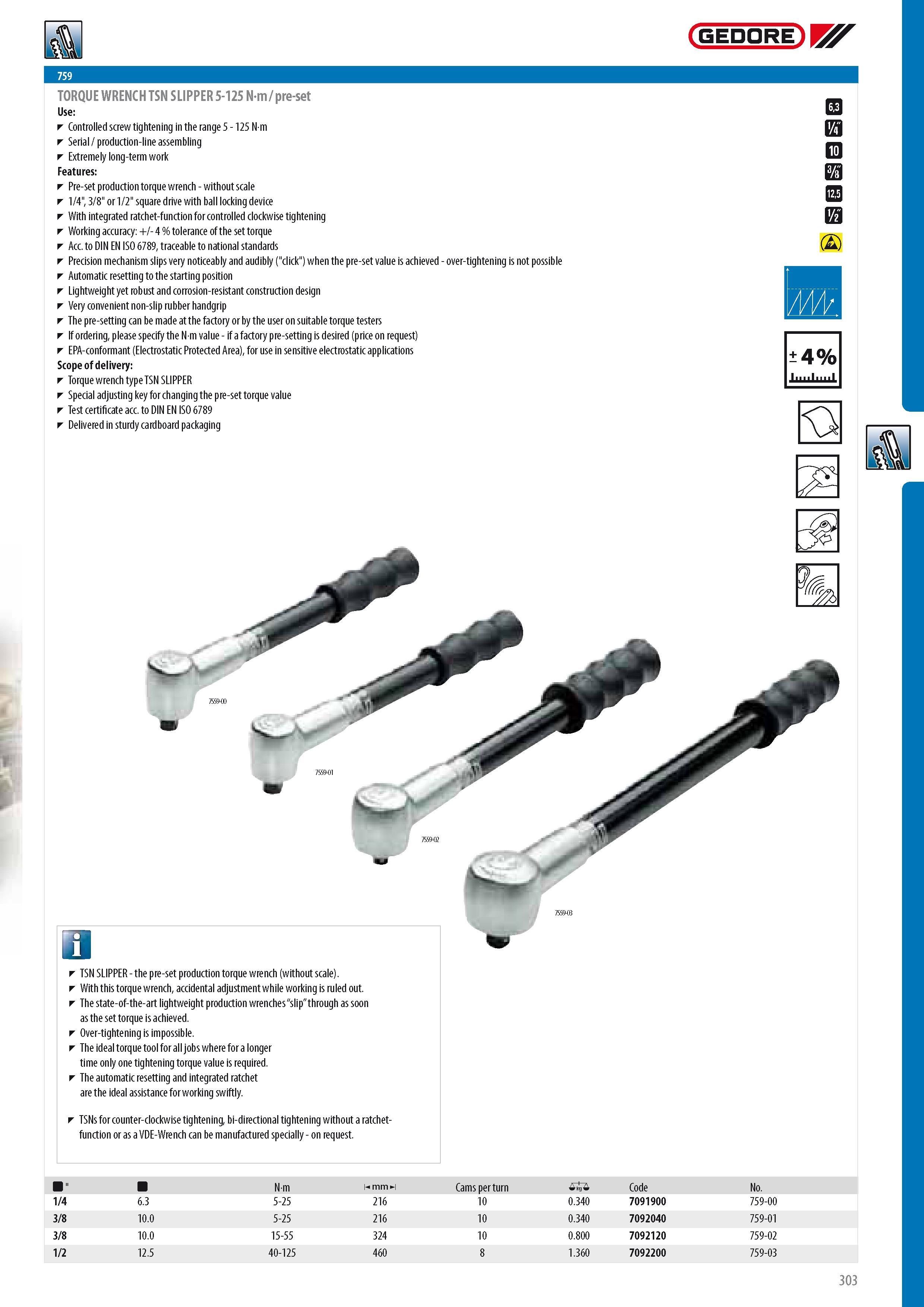

GEDORE TORQUE WRENCH TSN SLIPPER 5-125 Nm pre-set Use Controlled screw tightening in the range 5 - 125 N m Serial production-line assembling Extremely long-term work Features Pre-set production torque wrench - without scale 1 4" 3 8" or 1 2" square drive with ball locking device With integrated ratchet-function for controlled clockwise tightening Working accuracy + - 4 % tolerance of the set torque Acc. to DIN EN ISO 6789 traceable to national standards Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible Automatic resetting to the starting position Lightweight yet robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip The pre-setting can be made at the factory or by the user on suitable torque testers If ordering please specify the N m value - if a factory pre-setting is desired (price on request) EPA-conformant (Electrostatic Protected Area) for use in sensitive electrostatic applications Scope of delivery Torque wrench type TSN SLIPPER Special adjusting key for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging m E3 O E3 (2) Ej (2) 4% & a TSN SLIPPER - the pre-set production torque wrench (without scale). With this torque wrench accidental adjustment while working is ruled out. The state-of-the-art lightweight production wrenches "slip" through as soon as the set torque is achieved. Over-tightening is impossible. The ideal torque tool for all jobs where for a longer time only one tightening torque value is required. The automatic resetting and integrated ratchet are the ideal assistance for working swiftly. TSNs for counter-clockwise tightening bi-directional tightening without a ratchet-function or as a VDE-Wrench can be manufactured specially - on request. 759 7559-0U 7559-03 " Nm m mm ml Cams per turn -0 Code No. 1 4 6.3 5-25 216 10 0.340 7091900 759-00 3 8 10.0 5-25 216 10 0.340 7092040 759-01 3 8 10.0 15-55 324 10 0.800 7092120 759-02 1 2 12.5 40-125 460 8 1.360 7092200 759-03 303
