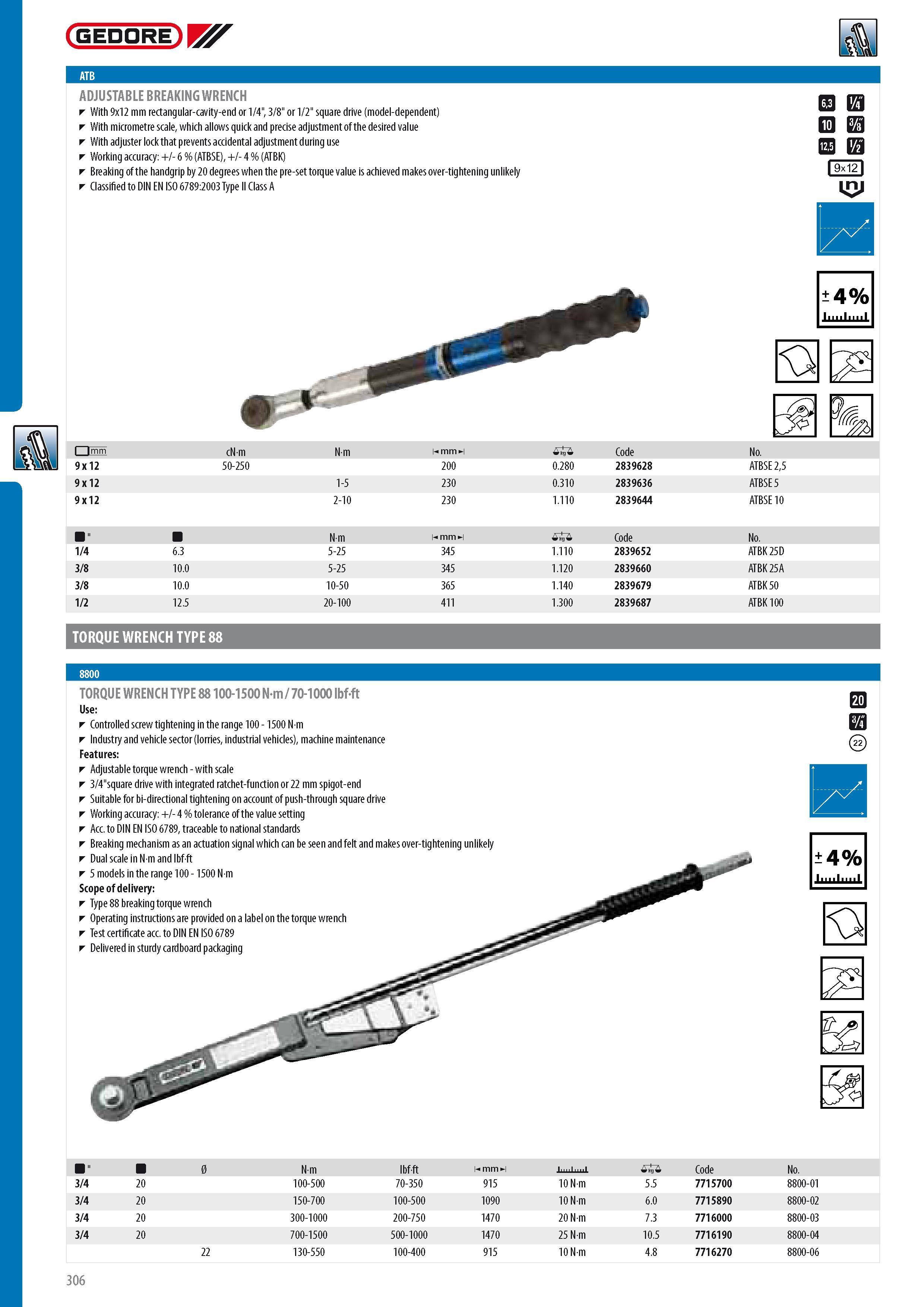

GEDORE ADJUSTABLE BREAKING WRENCH With 9x12 mm rectangular-cavity-end or 1 4" 3 8" or 1 2" square drive (model-dependent) With micrometre scale which allows quick and precise adjustment of the desired value With adjuster lock that prevents accidental adjustment during use Working accuracy + - 6 % (ATBSE) + - 4 % (ATBK) Breaking of the handgrip by 20 degrees when the pre-set torque value is achieved makes over-tightening unlikely Classified to DIN EN ISO 6789:2003 Type II Class A m b n c 0 d 1 9x12 G 4% 1 Imm cNm Nm m mm ml 0 Code No. 9 x 12 50-250 200 0.280 2839628 ATBSE 25 9 x 12 1-5 230 0.310 2839636 ATBSE 5 9 x 12 2-10 230 1.110 2839644 ATBSE 10 " Nm m mm ml 0 Code No. 1 4 .3 6. 5-25 345 1.110 2839652 ATBK 25D 3 8 10.0 5-25 345 1.120 2839660 ATBK 25A 3 8 10.0 10-50 365 1.140 2839679 ATBK 50 1 2 12.5 20-100 411 1.300 2839687 ATBK 100 TORQUE WRENCH TYPE 88 TORQUE WRENCH TYPE 88 100-1500 Nm 70-1000 lbfft Use Controlled screw tightening in the range 100 - 1500 N m Industry and vehicle sector (lorries industrial vehicles) machine maintenance Features Adjustable torque wrench - with scale 3 4"square drive with integrated ratchet-function or 22 mm spigot-end Suitable for bi-directional tightening on account of push-through square drive Working accuracy + - 4 % tolerance of the value setting Acc. to DIN EN ISO 6789 traceable to national standards Breaking mechanism as an actuation signal which can be seen and felt and makes over-tightening unlikely Dual scale in N m and lbf ft 5 models in the range 100 - 1500 N m Scope of delivery Type 88 breaking torque wrench Operating instructions are provided on a label on the torque wrench Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging 4% & % " 0 Nm lbfft m mm ml 0 Code No. 3 4 20 100-500 70-350 915 10 Nm 5.5 7715700 8800-01 3 4 20 150-700 100-500 1090 10 Nm 6.0 7715890 8800-02 3 4 20 300-1000 200-750 1470 20 Nm 7.3 7716000 8800-03 3 4 20 700-1500 500-1000 1470 25 Nm 10.5 7716190 8800-04 22 130-550 100-400 915 10 Nm 4.8 7716270 8800-06 8800 306
