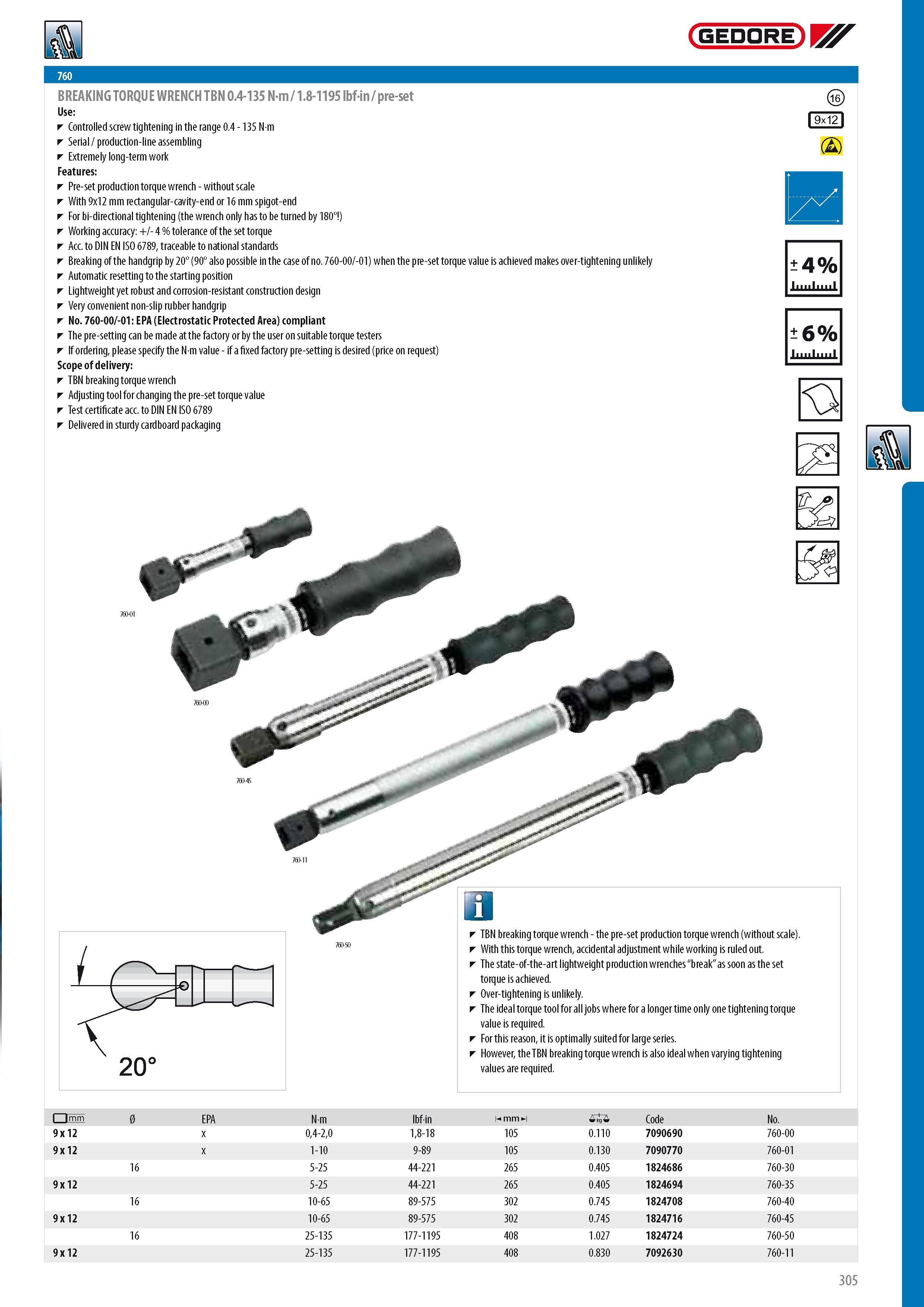

GEDORE BREAKING TORQUE WRENCH TBN 0.4-135 N-m 1.8-1195 lbf-in pre-set Use Controlled screw tightening in the range 0.4 - 135 N m Serial production-line assembling Extremely long-term work Features Pre-set production torque wrench - without scale With 9x12 mm rectangular-cavity-end or 16 mm spigot-end For bi-directional tightening (the wrench only has to be turned by 180 ) Working accuracy + - 4 % tolerance of the set torque Acc. to DIN EN ISO 6789 traceable to national standards Breaking of the handgrip by 20 (90 also possible in the case of no. 760-00 -01) when the pre-set torque value is achieved makes over-tightening unlikely Automatic resetting to the starting position Lightweight yet robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip No. 760-00 -01 EPA (Electrostatic Protected Area) compliant The pre-setting can be made at the factory or by the user on suitable torque testers If ordering please specify the N m value - if a fixed factory pre-setting is desired (price on request) Scope of delivery TBN breaking torque wrench Adjusting tool for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging j I 9x121 (2) 4% 6% & TBN breaking torque wrench - the pre-set production torque wrench (without scale). With this torque wrench accidental adjustment while working is ruled out. The state-of-the-art lightweight production wrenches "break" as soon as the set torque is achieved. Over-tightening is unlikely. The ideal torque tool for all jobs where for a longer time only one tightening torque value is required. For this reason it is optimally suited for large series. However the TBN breaking torque wrench is also ideal when varying tightening values are required. 1 Imm 0 EPA Nm lbfin m mm ml 0 Code No. 9 x 12 x 04-20 18-18 105 0.110 7090690 760-00 9 x 12 x 1-10 9-89 105 0.130 7090770 760-01 16 5-25 44-221 265 0.405 1824686 760-30 9 x 12 5-25 44-221 265 0.405 1824694 760-35 16 10-65 89-575 302 0.745 1824708 760-40 9 x 12 10-65 89-575 302 0.745 1824716 760-45 16 25-135 177-1195 408 1.027 1824724 760-50 9 x 12 25-135 177-1195 408 0.830 7092630 760-11 760 760-01 760-50 305
