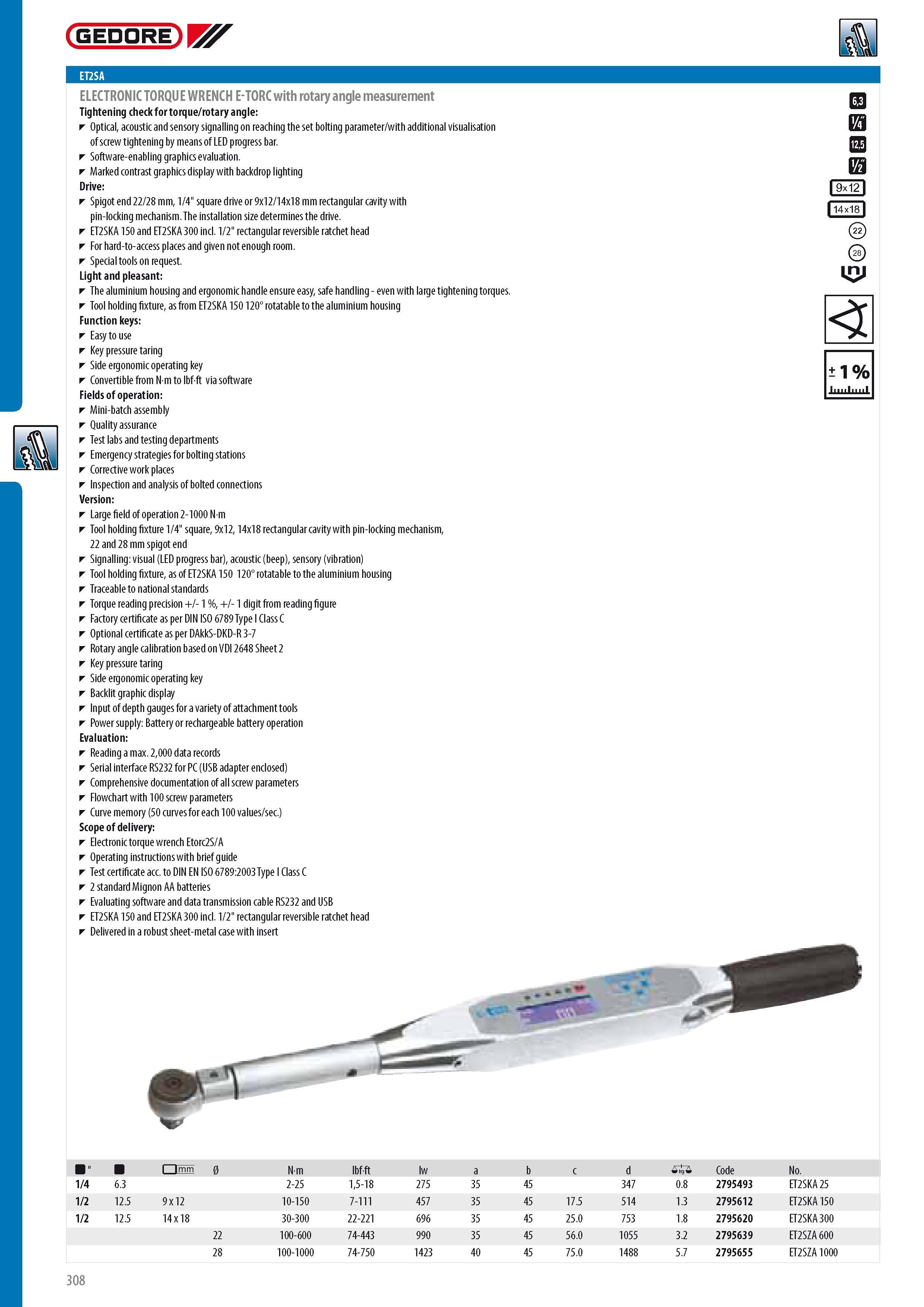

GEDORE ELECTRONIC TORQUE WRENCH E-TORC with rotary angle measurement Tightening check for torque rotary angle Optical acoustic and sensory signalling on reaching the set bolting parameter with additional visualisation of screw tightening by means of LED progress bar. Software-enabling graphics evaluation. Marked contrast graphics display with backdrop lighting Drive Spigot end 22 28 mm 1 4" square drive or 9x12 14x18 mm rectangular cavity with pin-locking mechanism. The installation size determines the drive. ET2SKA 150 and ET2SKA 300 incl. 1 2" rectangular reversible ratchet head For hard-to-access places and given not enough room. Special tools on request. Light and pleasant The aluminium housing and ergonomic handle ensure easy safe handling - even with large tightening torques. Tool holding fixture as from ET2SKA 150 120 rotatable to the aluminium housing Function keys Easy to use Key pressure taring Side ergonomic operating key Convertible from N m to lbf-ft via software Fields of operation Mini-batch assembly Quality assurance Test labs and testing departments Emergency strategies for bolting stations Corrective work places Inspection and analysis of bolted connections Version Large field of operation 2-1000 N m Tool holding fixture 1 4" square 9x12 14x18 rectangular cavity with pin-locking mechanism 22 and 28 mm spigot end Signalling visual (LED progress bar) acoustic (beep) sensory (vibration) Tool holding fixture as of ET2SKA 150 120 rotatable to the aluminium housing Traceable to national standards Torque reading precision + - 1 % + - 1 digit from reading figure Factory certificate as per DIN ISO 6789 Type I Class C Optional certificate as per DAkkS-DKD-R 3-7 Rotary angle calibration based on VDI 2648 Sheet 2 Key pressure taring Side ergonomic operating key Backlit graphic display Input of depth gauges for a variety of attachment tools Power supply Battery or rechargeable battery operation Evaluation Reading a max. 2000 data records Serial interface RS232 for PC (USB adapter enclosed) Comprehensive documentation of all screw parameters Flowchart with 100 screw parameters Curve memory (50 curves for each 100 values sec.) Scope of delivery Electronic torque wrench Etorc2S A Operating instructions with brief guide Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C 2 standard Mignon AA batteries Evaluating software and data transmission cable RS232 and USB ET2SKA 150 and ET2SKA 300 incl. 1 2" rectangular reversible ratchet head Delivered in a robust sheet-metal case with insert ill m b o d 9x12 114x18 k Y G V 1% " 1 Imm 0 Nm lbf-ft lw a b c d 0 Code No. 1 4 6.3 2-25 15-18 275 35 45 347 0.8 2795493 ET2SKA 25 1 2 12.5 9 x 12 10-150 7-111 457 35 45 17.5 514 1.3 2795612 ET2SKA150 1 2 12.5 14 x 18 30-300 22-221 696 35 45 25.0 753 1.8 2795620 ET2SKA300 22 100-600 74-443 990 35 45 56.0 1055 3.2 2795639 ET2SZA600 28 100-1000 74-750 1423 40 45 75.0 1488 5.7 2795655 ET2SZA 1000 308
