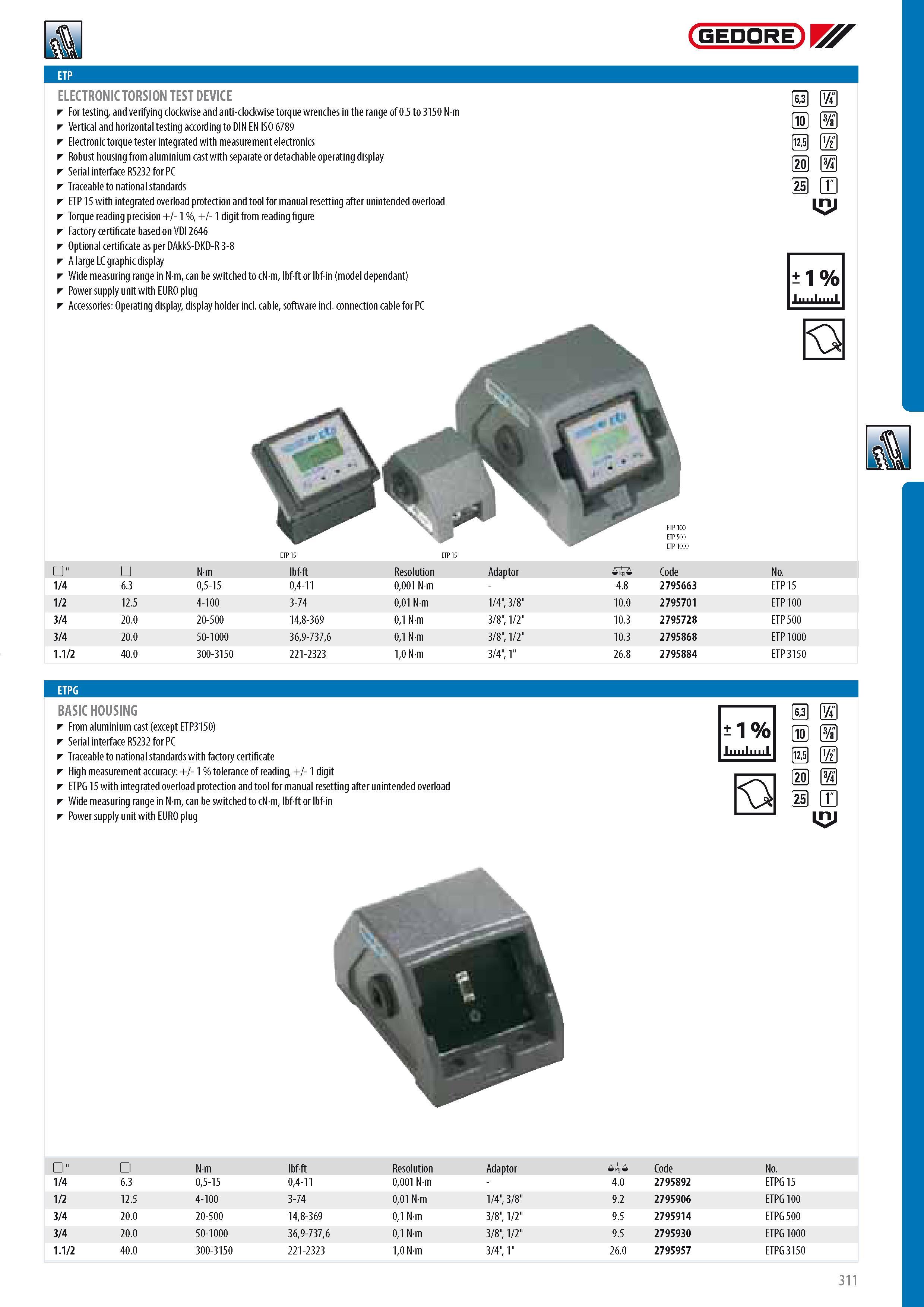

GEDORE ELECTRONIC TORSION TEST DEVICE For testing and verifying clockwise and anti-clockwise torque wrenches in the range of 0.5 to 3150 N m Vertical and horizontal testing according to DIN EN ISO 6789 Electronic torque tester integrated with measurement electronics Robust housing from aluminium cast with separate or detachable operating display Serial interface RS232 for PC Traceable to national standards ETP 15 with integrated overload protection and tool for manual resetting after unintended overload Torque reading precision + - 1 % + - 1 digit from reading figure Factory certificate based on VDI 2646 Optional certificate as per DAkkS-DKD-R 3-8 A large LC graphic display Wide measuring range in N m can be switched to cN m lbf-ft or lbf in (model dependant) Power supply unit with EURO plug Accessories Operating display display holder incl. cable software incl. connection cable for PC IE ETP 100 ETP 500 ETP 1000 BASIC HOUSING From aluminium cast (except ETP3150) Serial interface RS232 for PC Traceable to national standards with factory certificate High measurement accuracy + - 1 % tolerance of reading + - 1 digit ETPG 15 with integrated overload protection and tool for manual resetting after unintended overload Wide measuring range in N m can be switched to cN m lbf-ft or lbf in Power supply unit with EURO plug M R N S O T P U R V G 1% 1% M R N S O T P U R V G " Nm lbf-ft Resolution Adaptor -0 Code No. 1 4 6.3 05-15 04-11 0001 Nm - 4.8 2795663 ETP 15 1 2 12.5 4-100 3-74 001 Nm 1 4" 3 8" 10.0 2795701 ETP100 3 4 20.0 20-500 148-369 01 Nm 3 8" 1 2" 10.3 2795728 ETP 500 3 4 20.0 50-1000 369-7376 01 Nm 3 8" 1 2" 10.3 2795868 ETP 1000 1.1 2 40.0 300-3150 221-2323 10 Nm 3 4" 1" 26.8 2795884 ETP 3150 ETPG " Nm lbf-ft Resolution Adaptor -0 Code No. 1 4 6.3 05-15 04-11 0001 Nm - 4.0 2795892 ETPG 15 1 2 12.5 4-100 3-74 001 Nm 1 4" 3 8" 9.2 2795906 ETPG100 3 4 20.0 20-500 148-369 01 Nm 3 8" 1 2" 9.5 2795914 ETPG 500 3 4 20.0 50-1000 369-7376 01 Nm 3 8" 1 2" 9.5 2795930 ETPG1000 1.1 2 40.0 300-3150 221-2323 10 Nm 3 4" 1" 26.0 2795957 ETPG 3150 ETP ETP 15 ETP 15 311
