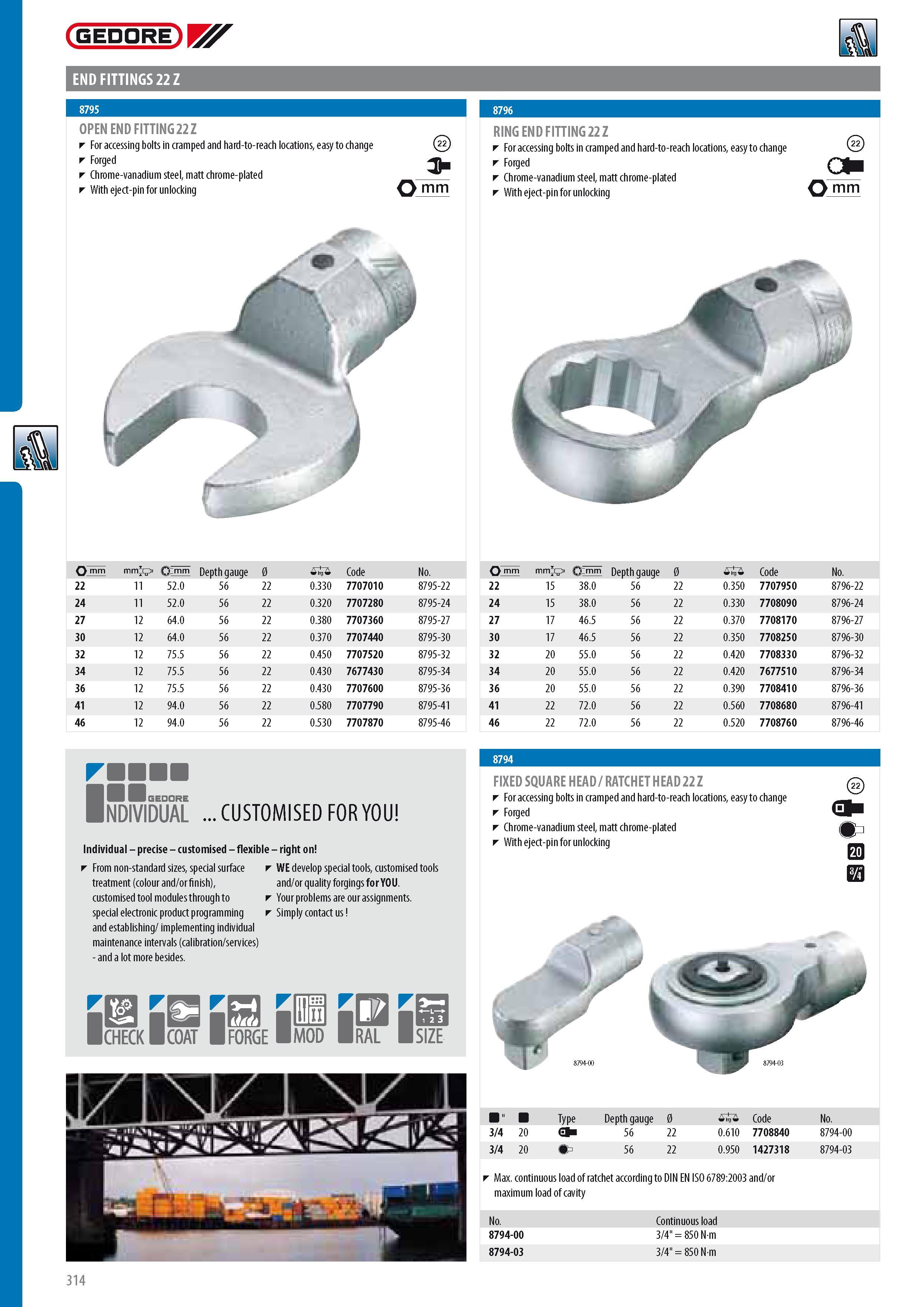

GEDORE END FITTINGS 22 Z OPEN END FITTING 22 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated r With eject-pin for unlocking mm 0 1 RING END FITTING 22 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged r Chrome-vanadium steel matt chrome-plated - r With eject-pin for unlocking W FPim 0 4 mm 4 &mm Depth gauge 0 0 Code No. m 4 &mm Depth gauge 0 0 Code No. 22 11 52.0 56 22 0.330 7707010 8795-22 22 15 38.0 56 22 0.350 7707950 8796-22 24 11 52.0 56 22 0.320 7707280 8795-24 24 15 38.0 56 22 0.330 7708090 8796-24 27 12 64.0 56 22 0.380 7707360 8795-27 27 17 46.5 56 22 0.370 7708170 8796-27 30 12 64.0 56 22 0.370 7707440 8795-30 30 17 46.5 56 22 0.350 7708250 8796-30 32 12 75.5 56 22 0.450 7707520 8795-32 32 20 55.0 56 22 0.420 7708330 8796-32 34 12 75.5 56 22 0.430 7677430 8795-34 34 20 55.0 56 22 0.420 7677510 8796-34 36 12 75.5 56 22 0.430 7707600 8795-36 36 20 55.0 56 22 0.390 7708410 8796-36 41 12 94.0 56 22 0.580 7707790 8795-41 41 22 72.0 56 22 0.560 7708680 8796-41 46 12 94.0 56 22 0.530 7707870 8795-46 46 22 72.0 56 22 0.520 7708760 8796-46 rmmmm I NDIVIDUAL CUSTOMISED FOR YOU Individual - precise - customised - flexible - right on From non-standard sizes special surface treatment (colour and or finish) customised tool modules through to special electronic product programming and establishing implementing individual maintenance intervals (calibration services) - and a lot more besides. WE develop special tools customised tools and or quality forgings for YOU. Your problems are our assignments. Simply contact us rn v IcHECK IcOAT FORGE I nj VIOD r Iral r I SIZE FIXED SQUARE HEAD RATCHET HEAD 22 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking % 0 5 2 p e " Type Depth gauge 0 0 Code No. 3 4 20 5 56 22 0.610 7708840 8794-00 3 4 20 2 56 22 0.950 1427318 8794-03 Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load of cavity No. Continuous load 8794-00 3 4" 850 Nm 8794-03 3 4" 850 Nm 8795 8796 8794 8794-00 314
