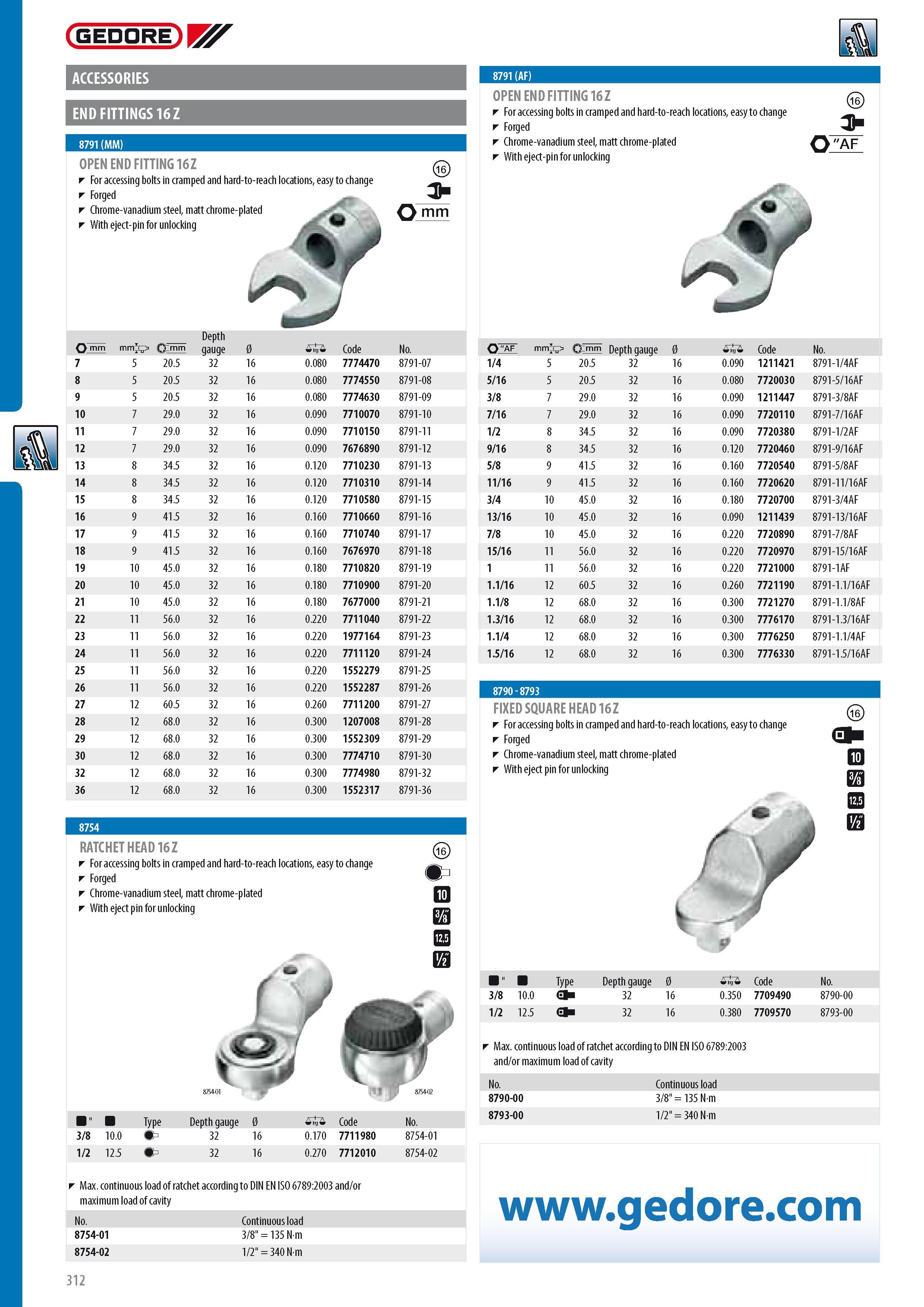

GEDORE ACCESSORIES END FITTINGS 16 Z 8791 (MM) OPEN END FITTING 16 Z r For accessing bolts in cramped and hard-to-reach locations easy to change r Forged r Chrome-vanadium steel matt chrome-plated mm r With eject-pin for unlocking N V mm 4 &mm Depth gauge 0 0 Code No. 7 5 20.5 32 16 0.080 7774470 8791-07 8 5 20.5 32 16 0.080 7774550 8791-08 9 5 20.5 32 16 0.080 7774630 8791-09 10 7 29.0 32 16 0.090 7710070 8791-10 11 7 29.0 32 16 0.090 7710150 8791-11 12 7 29.0 32 16 0.090 7676890 8791-12 13 8 34.5 32 16 0.120 7710230 8791-13 14 8 34.5 32 16 0.120 7710310 8791-14 15 8 34.5 32 16 0.120 7710580 8791-15 16 9 41.5 32 16 0.160 7710660 8791-16 17 9 41.5 32 16 0.160 7710740 8791-17 18 9 41.5 32 16 0.160 7676970 8791-18 19 10 45.0 32 16 0.180 7710820 8791-19 20 10 45.0 32 16 0.180 7710900 8791-20 21 10 45.0 32 16 0.180 7677000 8791-21 22 11 56.0 32 16 0.220 7711040 8791-22 23 11 56.0 32 16 0.220 1977164 8791-23 24 11 56.0 32 16 0.220 7711120 8791-24 25 11 56.0 32 16 0.220 1552279 8791-25 26 11 56.0 32 16 0.220 1552287 8791-26 27 12 60.5 32 16 0.260 7711200 8791-27 28 12 68.0 32 16 0.300 1207008 8791-28 29 12 68.0 32 16 0.300 1552309 8791-29 30 12 68.0 32 16 0.300 7774710 8791-30 32 12 68.0 32 16 0.300 7774980 8791-32 36 12 68.0 32 16 0.300 1552317 8791-36 RATCHET HEAD 16 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject pin for unlocking 2 n c o d 4 8754-02 " Type Depth gauge 0 0 Code No. 3 8 10.0 2 32 16 0.170 7711980 8754-01 1 2 12.5 2 32 16 0.270 7712010 8754-02 Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load of cavity No. Continuous load 8754-01 3 8" 135 Nm 8754-02 1 2" 340 Nm OPEN END FITTING 16 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking 1 Q"af Q"af 4 &mm Depth gauge 0 0 Code No. 1 4 5 20.5 32 16 0.090 1211421 8791-1 4AF 5 16 5 20.5 32 16 0.080 7720030 8791-5 16AF 3 8 7 29.0 32 16 0.090 1211447 8791-3 8AF 7 16 7 29.0 32 16 0.090 7720110 8791-7 16AF 1 2 8 34.5 32 16 0.090 7720380 8791-1 2AF 9 16 8 34.5 32 16 0.120 7720460 8791-9 16AF 5 8 9 41.5 32 16 0.160 7720540 8791-5 8AF 11 16 9 41.5 32 16 0.160 7720620 8791-11 16AF 3 4 10 45.0 32 16 0.180 7720700 8791-3 4AF 13 16 10 45.0 32 16 0.090 1211439 8791-13 16AF 7 8 10 45.0 32 16 0.220 7720890 8791-7 8AF 15 16 11 56.0 32 16 0.220 7720970 8791-15 16AF 1 11 56.0 32 16 0.220 7721000 8791-1AF 1.1 16 12 60.5 32 16 0.260 7721190 8791-1.1 16AF 1.1 8 12 68.0 32 16 0.300 7721270 8791-1.1 8AF 1.3 16 12 68.0 32 16 0.300 7776170 8791-1.3 16AF 1.1 4 12 68.0 32 16 0.300 7776250 8791-1.1 4AF 1.5 16 12 68.0 32 16 0.300 7776330 8791-1.5 16AF FIXED SQUARE HEAD 16 Z For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject pin for unlocking 5 n c o d " Type Depth gauge 0 0 Code No. 3 8 10.0 5 32 16 0.350 7709490 8790-00 1 2 12.5 5 32 16 0.380 7709570 8793-00 Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load of cavity No. Continuous load 8790-00 3 8" 135 Nm 8793-00 1 2" 340 Nm GEDORE 8791(AF) 8754 5754-01 312
