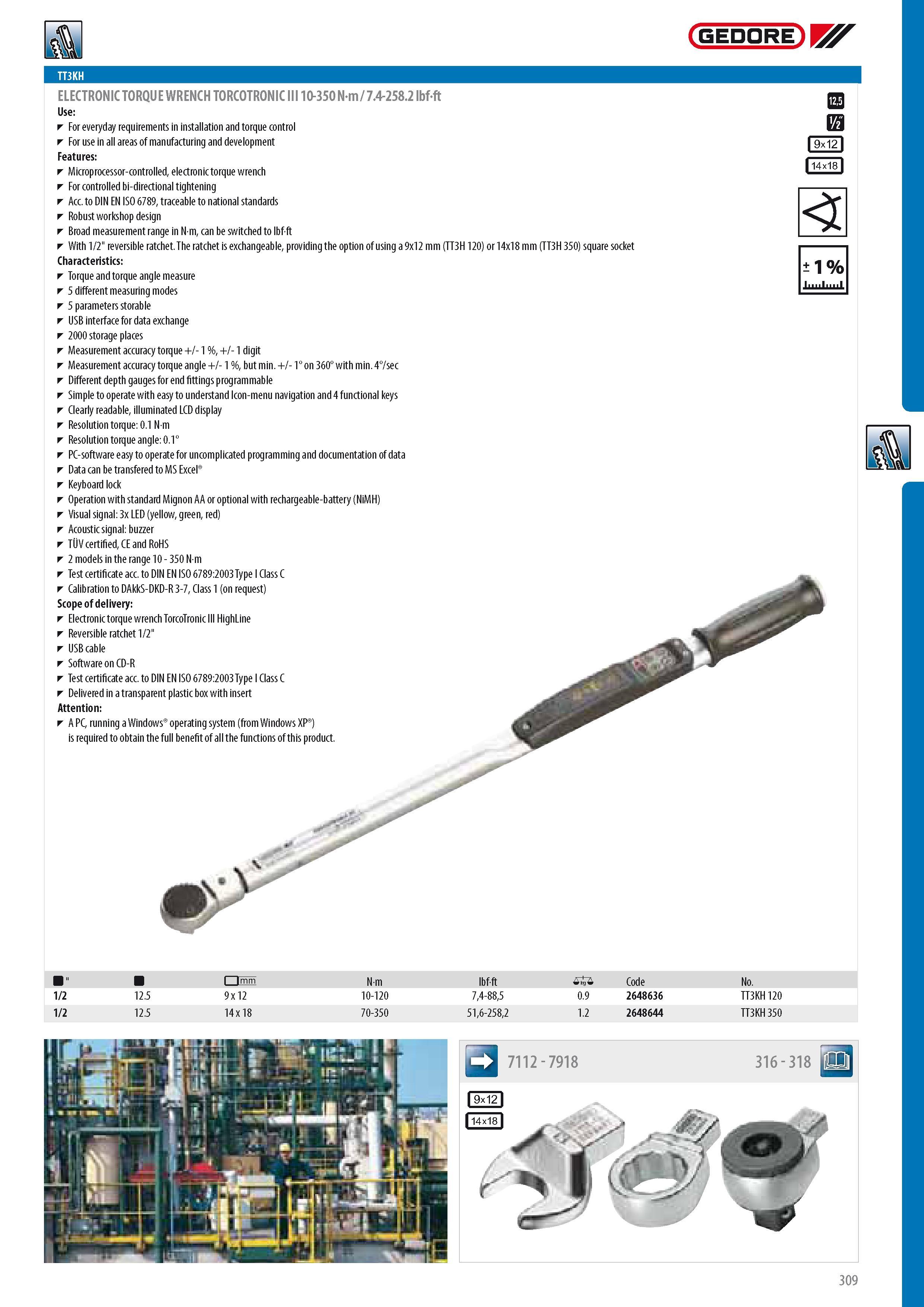

GEDORE ELECTRONIC TORQUE WRENCH TORCOTRONIC III 10-350 Nm 7.4-258.2 lbfft Use For everyday requirements in installation and torque control For use in all areas of manufacturing and development Features Microprocessor-controlled electronic torque wrench For controlled bi-directional tightening Acc. to DIN EN ISO 6789 traceable to national standards Robust workshop design Broad measurement range in N m can be switched to lbf ft With 1 2" reversible ratchet. The ratchet is exchangeable providing the option of using a 9x12 mm (TT3H 120) Characteristics Torque and torque angle measure 5 different measuring modes 5 parameters storable USB interface for data exchange 2000 storage places Measurement accuracy torque + - 1 % + - 1 digit Measurement accuracy torque angle + - 1 % but min. + - 1 on 360 with min. 4 sec Different depth gauges for end fittings programmable Simple to operate with easy to understand Icon-menu navigation and 4 functional keys Clearly readable illuminated LCD display Resolution torque 0.1 N m Resolution torque angle 0.1 PC-software easy to operate for uncomplicated programming and documentation of data Data can be transfered to MS Excel Keyboard lock Operation with standard Mignon AA or optional with rechargeable-battery (NiMH) Visual signal 3x LED (yellow green red) Acoustic signal buzzer TUV certified CE and RoHS 2 models in the range 10 - 350 N m Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C Calibration to DAkkS-DKD-R 3-7 Class 1 (on request) Scope of delivery Electronic torque wrench TorcoTronic III HighLine Reversible ratchet 1 2" USB cable Software on CD-R Test certificate acc. to DIN EN ISO 6789:2003 Type I Class C Delivered in a transparent plastic box with insert Attention A PC running a Windows operating system (from Windows XP ) is required to obtain the full benefit of all the functions of this product. or 14x18 mm (TT3H 350) square socket o d I 114x18 1% 11111 & " 1 Imm Nm lbfft 0 Code No. 1 2 12.5 9 x 12 10-120 74-885 0.9 2648636 TT3KH120 1 2 12.5 14 x 18 70-350 516-2582 1.2 2648644 TT3KH 350 H H 1 fli.1 ( T1 L llilJfc 111 J 7112 - 7918 I 9x12 114x18 309
