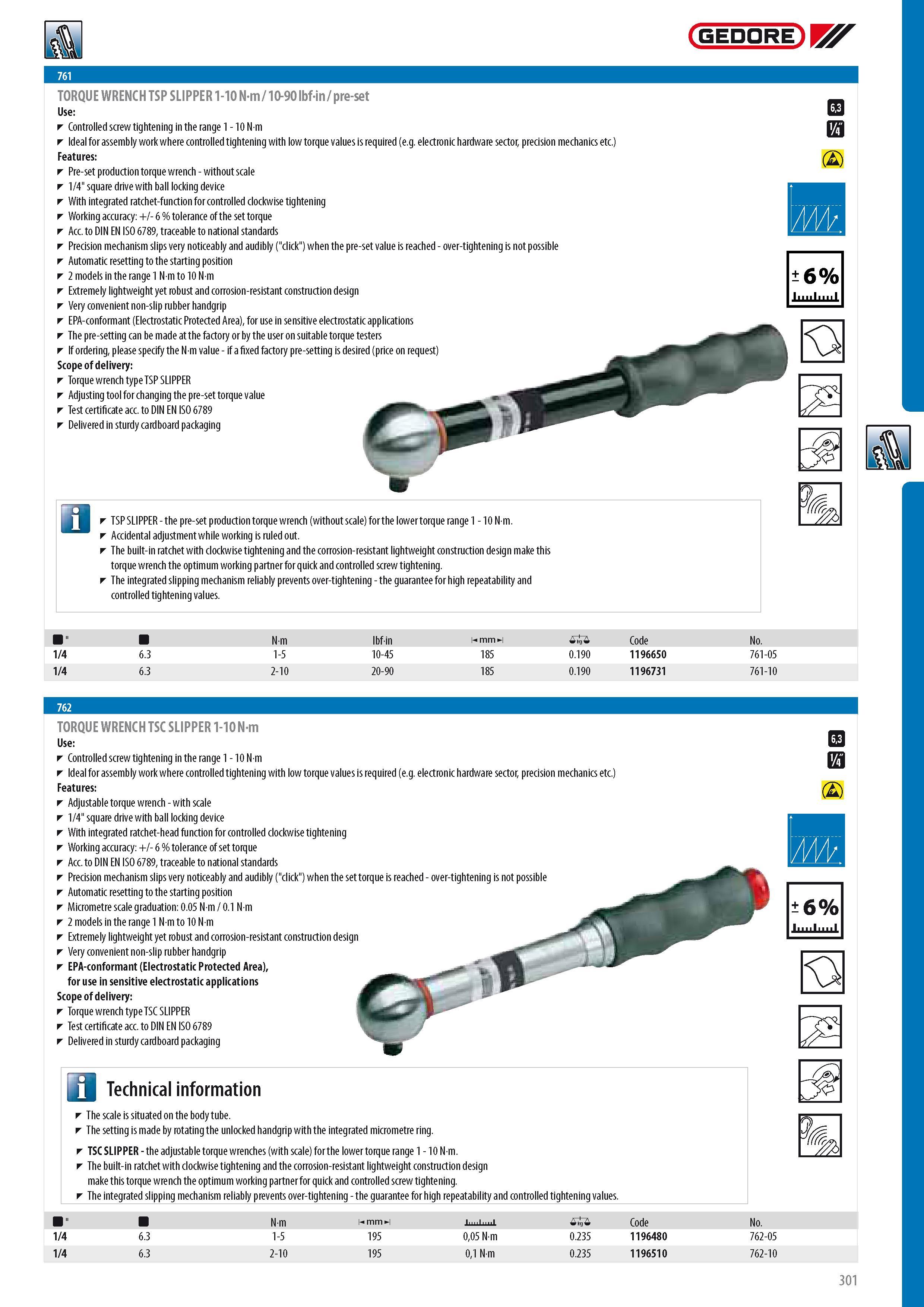

303 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.301

Каталог GEDORE 2014 Слесарный инструмент Стр. 301 0303 ENG Lab2u

GEDORE TORQUE WRENCH TSP SLIPPER 1-10 N-m 10-90 lbf-in pre-set Use Controlled screw tightening in the range 1 - 10 N m Ideal for assembly work where controlled tightening with low torque values is required (e.g. electronic hardware sector precision mechanics etc.) Features Pre-set production torque wrench - without scale 1 4" square drive with ball locking device With integrated ratchet-function for controlled clockwise tightening Working accuracy + - 6 % tolerance of the set torque Acc. to DIN EN ISO 6789 traceable to national standards Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is reached - over-tightening is not possible Automatic resetting to the starting position 2 models in the range 1 N m to 10 N m Extremely lightweight yet robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip EPA-conformant (Electrostatic Protected Area) for use in sensitive electrostatic applications The pre-setting can be made at the factory or by the user on suitable torque testers If ordering please specify the N m value - if a fixed factory pre-setting is desired (price on request) Scope of delivery Torque wrench type TSP SLIPPER Adjusting tool for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging a TSP SLIPPER - the pre-set production torque wrench (without scale) for the lower torque range 1 - 10 N m. Accidental adjustment while working is ruled out. The built-in ratchet with clockwise tightening and the corrosion-resistant lightweight construction design make this torque wrench the optimum working partner for quick and controlled screw tightening. The integrated slipping mechanism reliably prevents over-tightening - the guarantee for high repeatability and controlled tightening values. m b " Nm lbfin m mm ml 0 Code No. 1 4 .3 6. 1-5 10-45 185 0.190 1196650 761-05 1 4 6.3 2-10 20-90 185 0.190 1196731 761-10 TORQUE WRENCH TSC SLIPPER 1-10 Nm Use Controlled screw tightening in the range 1 - 10 N m Ideal for assembly work where controlled tightening with low torque values is required (e.g. electronic hardware sector precision mechanics etc.) Features Adjustable torque wrench - with scale 1 4" square drive with ball locking device With integrated ratchet-head function for controlled clockwise tightening Working accuracy + - 6 % tolerance of set torque Acc. to DIN EN ISO 6789 traceable to national standards Precision mechanism slips very noticeably and audibly ("click") when the set torque is reached - over-tightening is not possible Automatic resetting to the starting position Micrometre scale graduation 0.05 N m 0.1 N m 2 models in the range 1 N m to 10 N m Extremely lightweight yet robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip EPA-conformant (Electrostatic Protected Area) for use in sensitive electrostatic applications Scope of delivery Torque wrench type TSC SLIPPER Test certificate acc. to DIN EN ISO 6789 Delivered in sturdy cardboard packaging a Technical information The scale is situated on the body tube. The setting is made by rotating the unlocked handgrip with the integrated micrometre ring. TSC SLIPPER - the adjustable torque wrenches (with scale) for the lower torque range 1 - 10 N m. The built-in ratchet with clockwise tightening and the corrosion-resistant lightweight construction design make this torque wrench the optimum working partner for quick and controlled screw tightening. The integrated slipping mechanism reliably prevents over-tightening - the guarantee for high repeatability and controlled tightening values. m b (2) 6% 11111 & " Nm m mm ml 0 Code No. 1 4 6.3 1-5 195 005 Nm 0.235 1196480 762-05 1 4 .3 6. 2-10 195 01 Nm 0.235 1196510 762-10 761 762 301
