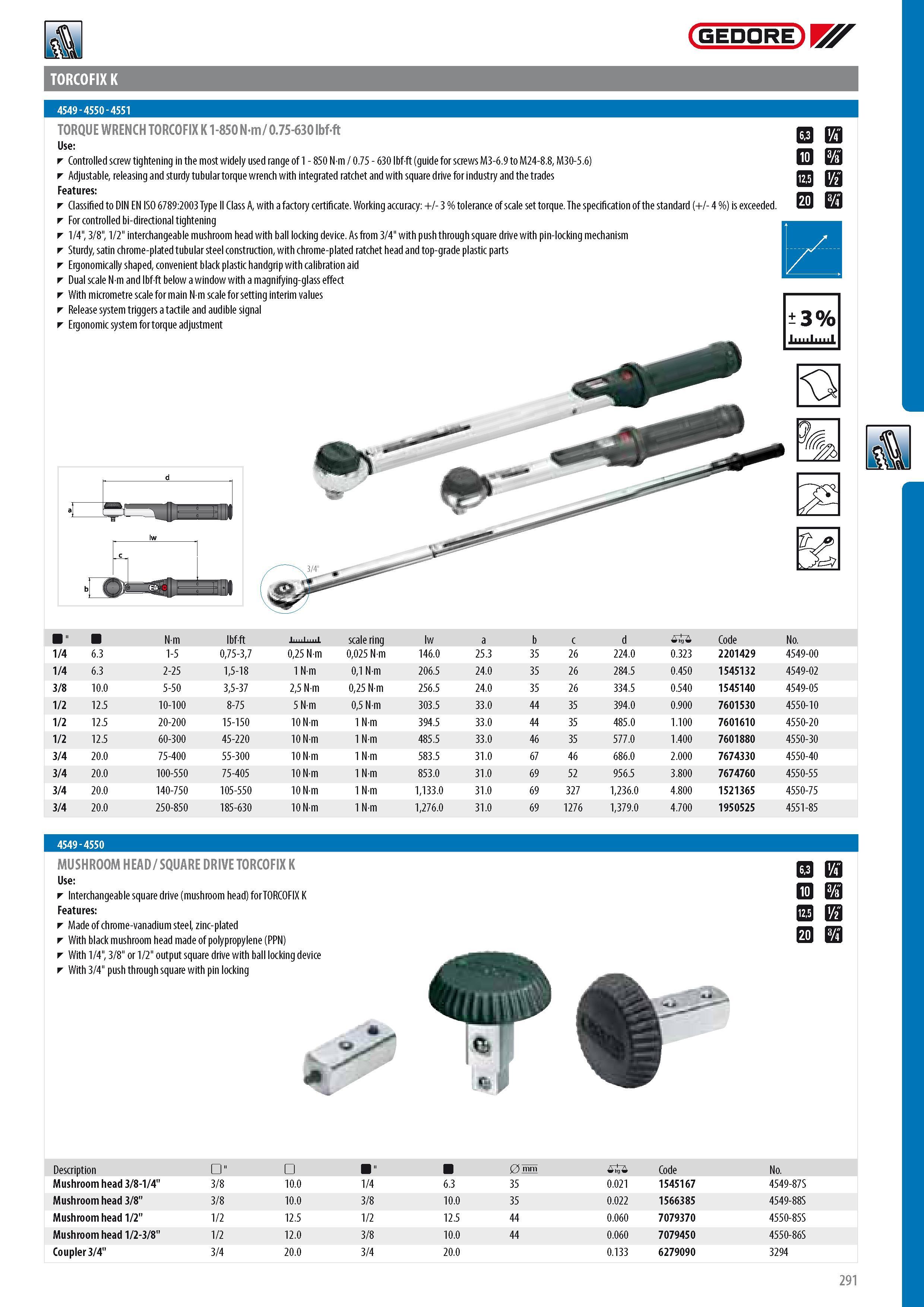

GEDORE TORCOFIX K 4549 - 4550 - 4551 TORQUE WRENCH TORCOFIX K 1-850 Nm 0.75-630 lbf-ft Controlled screw tightening in the most widely used range of 1 - 850 N m 0.75 - 630 lbf-ft (guide for screws M3-6.9 to M24-8.8 M30-5.6) Adjustable releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. For controlled bi-directional tightening 1 4" 3 8" 1 2" interchangeable mushroom head with ball locking device. As from 3 4" with push through square drive with pin-locking mechanism Sturdy satin chrome-plated tubular steel construction with chrome-plated ratchet head and top-grade plastic parts Ergonomically shaped convenient black plastic handgrip with calibration aid Dual scale N m and lbf-ft below a window with a magnifying-glass effect With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment m b n c o d p e m " Nm lbf-ft scale ring lw a b c d -0 Code No. 1 4 6.3 1-5 075-37 025 Nm 0025 Nm 146.0 25.3 35 26 224.0 0.323 2201429 4549-00 1 4 6.3 2-25 15-18 1 Nm 01 Nm 206.5 24.0 35 26 284.5 0.450 1545132 4549-02 3 8 10.0 5-50 35-37 25 Nm 025 Nm 256.5 24.0 35 26 334.5 0.540 1545140 4549-05 1 2 12.5 10-100 8-75 5 Nm 05 Nm 303.5 33.0 44 35 394.0 0.900 7601530 4550-10 1 2 12.5 20-200 15-150 10 Nm 1 Nm 394.5 33.0 44 35 485.0 1.100 7601610 4550-20 1 2 12.5 60-300 45-220 10 Nm 1 Nm 485.5 33.0 46 35 577.0 1.400 7601880 4550-30 3 4 20.0 75-400 55-300 10 Nm 1 Nm 583.5 31.0 67 46 686.0 2.000 7674330 4550-40 3 4 20.0 100-550 75-405 10 Nm 1 Nm 853.0 31.0 69 52 956.5 3.800 7674760 4550-55 3 4 20.0 140-750 105-550 10 Nm 1 Nm 1133.0 31.0 69 327 1236.0 4.800 1521365 4550-75 3 4 20.0 250-850 185-630 10 Nm 1 Nm 1276.0 31.0 69 1276 1379.0 4.700 1950525 4551-85 MUSHROOM HEAD SQUARE DRIVE TORCOFIX K Use Interchangeable square drive (mushroom head) for TORCOFIX K Features Made of chrome-vanadium steel zinc-plated With black mushroom head made of polypropylene (PPN) With 1 4" 3 8" or 1 2" output square drive with ball locking device With 3 4" push through square with pin locking m b n c o d p e Description " " 0 mm 0 Code No. Mushroom head 3 8-1 4" 3 8 10.0 1 4 6.3 35 0.021 1545167 4549-87S Mushroom head 3 8" 3 8 10.0 3 8 10.0 35 0.022 1566385 4549-88S Mushroom head 1 2" 1 2 12.5 1 2 12.5 44 0.060 7079370 4550-85S Mushroom head 1 2-3 8" 1 2 12.0 3 8 10.0 44 0.060 7079450 4550-86S Coupler 3 4" 3 4 20.0 3 4 20.0 0.133 6279090 3294 291
