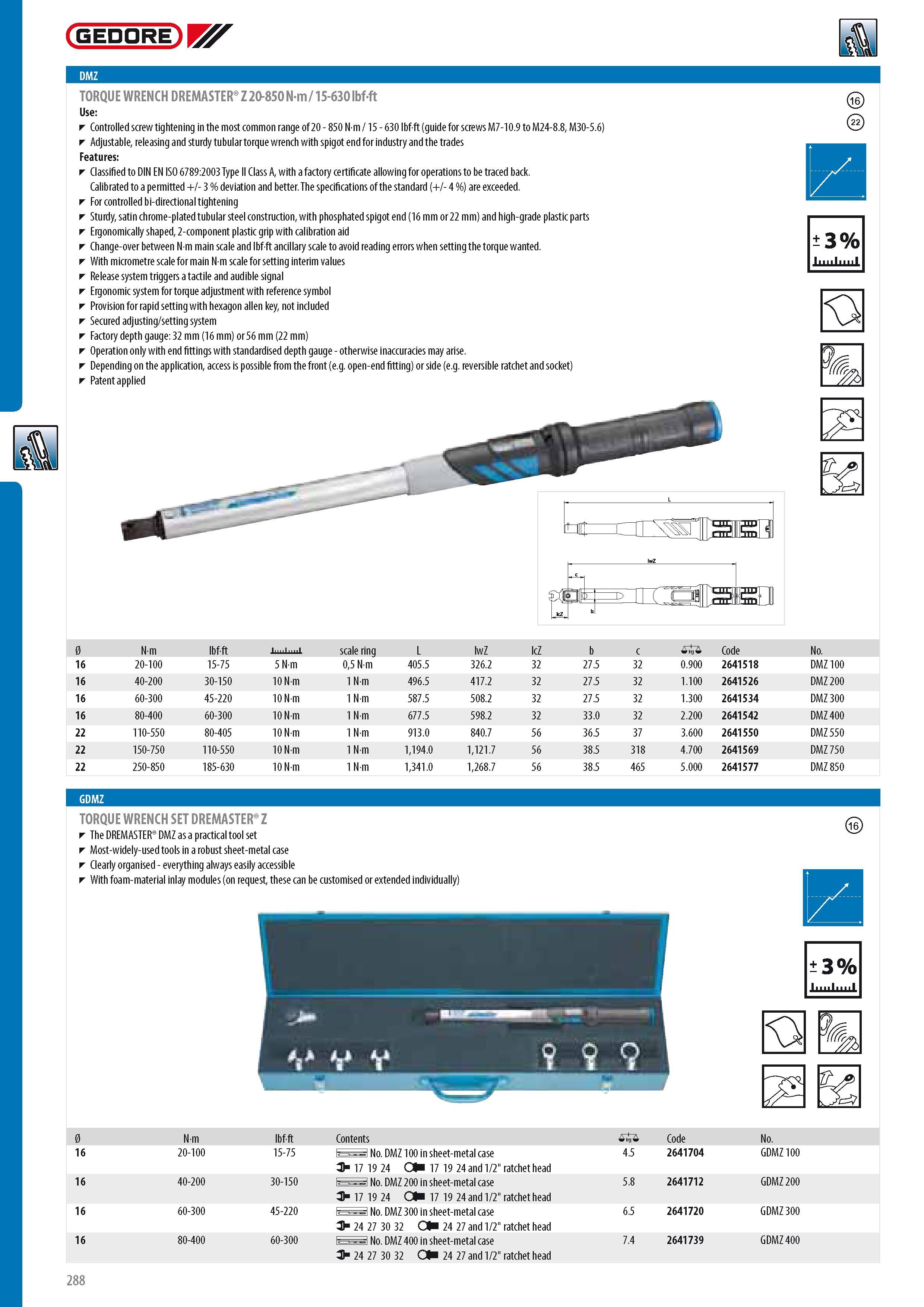

GEDORE TORQUE WRENCH DREMASTER Z 20-850 Nm 15-630 lbf-ft Controlled screw tightening in the most common range of 20 - 850 N m 15 - 630 lbf-ft (guide for screws M7-10.9 to M24-8.8 M30-5.6) Adjustable releasing and sturdy tubular torque wrench with spigot end for industry and the trades Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate allowing for operations to be traced back. Calibrated to a permitted + - 3 % deviation and better. The specifications of the standard (+ - 4 %) are exceeded. For controlled bi-directional tightening Sturdy satin chrome-plated tubular steel construction with phosphated spigot end (16 mm or 22 mm) and high-grade plastic parts Ergonomically shaped 2-component plastic grip with calibration aid Change-over between N m main scale and lbf-ft ancillary scale to avoid reading errors when setting the torque wanted. With micrometre scale for main N m scale for setting interim values Release system triggers a tactile and audible signal Ergonomic system for torque adjustment with reference symbol Provision for rapid setting with hexagon allen key not included Secured adjusting setting system Factory depth gauge 32 mm (16 mm) or 56 mm (22 mm) Operation only with end fittings with standardised depth gauge - otherwise inaccuracies may arise. Depending on the application access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket) Patent applied ( JOB 0 3% & 0 Nm lbf-ft scale ring L lwZ lcZ b c 0 Code No. 16 20-100 15-75 5 Nm 05 Nm 405.5 326.2 32 27.5 32 0.900 2641518 DMZ100 16 40-200 30-150 10 Nm 1 Nm 496.5 417.2 32 27.5 32 1.100 2641526 DMZ 200 16 60-300 45-220 10 Nm 1 Nm 587.5 508.2 32 27.5 32 1.300 2641534 DMZ 300 16 80-400 60-300 10 Nm 1 Nm 677.5 598.2 32 33.0 32 2.200 2641542 DMZ 400 22 110-550 80-405 10 Nm 1 Nm 913.0 840.7 56 36.5 37 3.600 2641550 DMZ 550 22 150-750 110-550 10 Nm 1 Nm 1194.0 1121.7 56 38.5 318 4.700 2641569 DMZ 750 22 250-850 185-630 10 Nm 1 Nm 1341.0 1268.7 56 38.5 465 5.000 2641577 DMZ 850 TORQUE WRENCH SET DREMASTER Z The DREMASTER DMZ as a practical tool set Most-widely-used tools in a robust sheet-metal case Clearly organised - everything always easily accessible With foam-material inlay modules (on request these can be customised or extended individually) 3% 11111 0 Nm lbf-ft Contents 0 Code No. 16 20-100 15-75 i No. DM 100 in sheet-metal case 1 17 19 24 4 17 19 24 and 1 2" ratchet head 4.5 2641704 GDMZ100 16 40-200 30-150 i No. DMZ 200 in sheet-metal case 1 17 19 24 4 17 19 24 and 1 2" ratchet head 5.8 2641712 GDMZ200 16 60-300 45-220 i No. DMZ 300 in sheet-metal case 1 24 27 30 32 4 24 27 and 1 2" ratchet head 6.5 2641720 GDMZ 300 16 288 80-400 60-300 i No. DMZ 400 in sheet-metal case 1 24 27 30 32 4 24 27 and 1 2" ratchet head 7.4 2641739 GDMZ400
