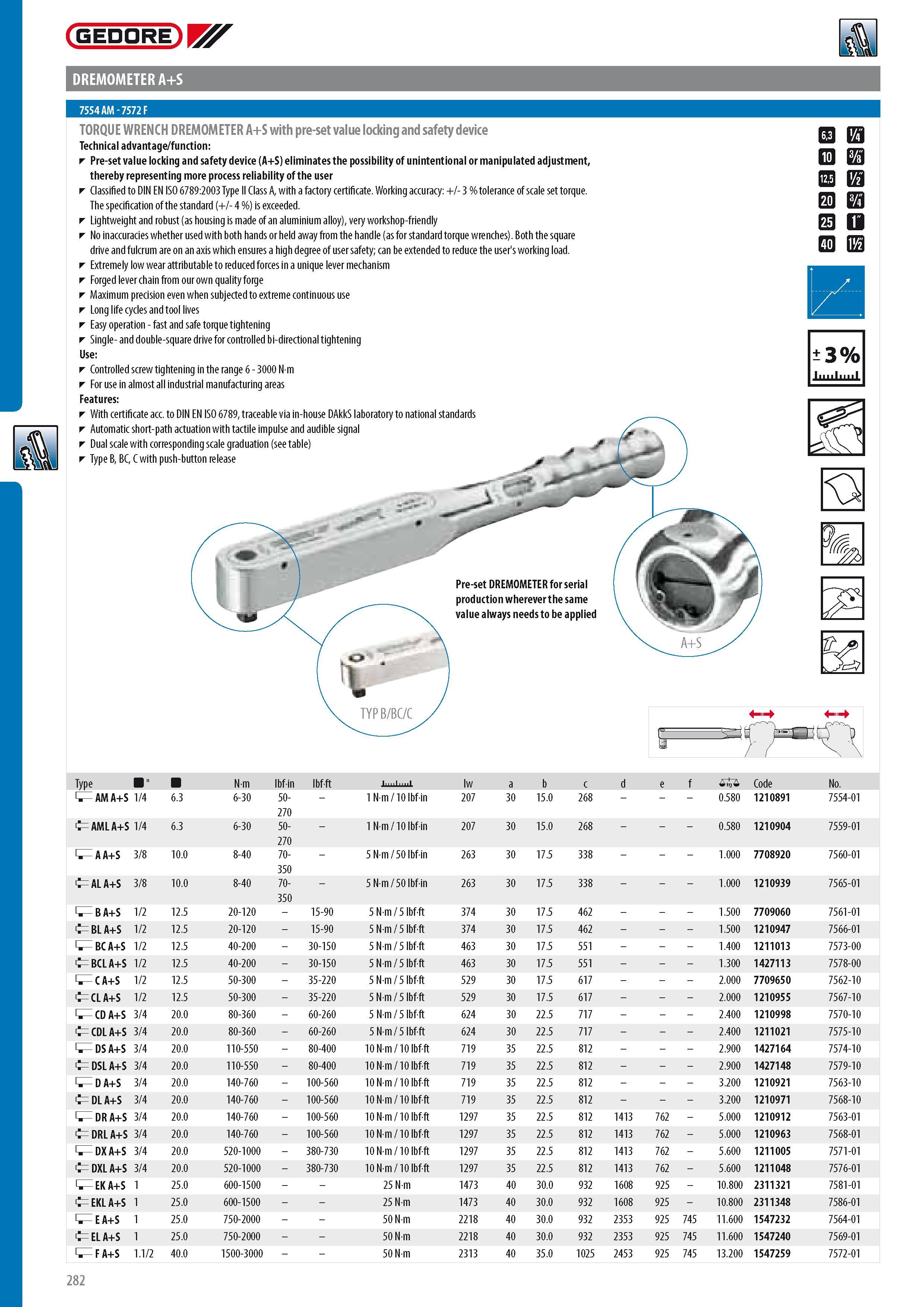

GEDORE DREMOMETER A+S 7554 AM - 7572 F TORQUE WRENCH DREMOMETER A+S with pre-set value locking and safety device Technical advantage function Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment thereby representing more process reliability of the user Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Single- and double-square drive for controlled bi-directional tightening Use Controlled screw tightening in the range 6 - 3000 N m For use in almost all industrial manufacturing areas Features With certificate acc. to DIN EN ISO 6789 traceable via in-house DAkkS laboratory to national standards Automatic short-path actuation with tactile impulse and audible signal Dual scale with corresponding scale graduation (see table) Type B BC C with push-button release Pre-set DREMOMETER for serial production wherever the same value always needs to be applied m b n c o d p e r a v g 3% & Type " Nm lbfin lbfft lw a b c d e f 0 Code No. s AM A+S 1 4 6.3 6-30 50- 270 - 1 Nm 10 lbfin 207 30 15.0 268 - 0.580 1210891 7554-01 AML A+S 1 4 6.3 6-30 50- 270 - 1 Nm 10 lbfin 207 30 15.0 268 - 0.580 1210904 7559-01 s A A+S 3 8 10.0 8-40 70- 350 - 5 Nm 50 lbfin 263 30 17.5 338 - 1.000 7708920 7560-01 AL A+S 3 8 10.0 8-40 70- 350 - 5 Nm 50 lbfin 263 30 17.5 338 - 1.000 1210939 7565-01 S B A+S 1 2 12.5 20-120 - 15-90 5 Nm 5 lbfft 374 30 17.5 462 - 1.500 7709060 7561-01 tBLA+S 1 2 12.5 20-120 - 15-90 5 Nm 5 lbfft 374 30 17.5 462 - 1.500 1210947 7566-01 S + A C B Bs 1 2 12.5 40-200 - 30-150 5 Nm 5 lbfft 463 30 17.5 551 - 1.400 1211013 7573-00 S + A L C B 1 2 12.5 40-200 - 30-150 5 Nm 5 lbfft 463 30 17.5 551 - 1.300 1427113 7578-00 s C A+S 1 2 12.5 50-300 - 35-220 5 Nm 5 lbfft 529 30 17.5 617 - 2.000 7709650 7562-10 tCLA+S 1 2 12.5 50-300 - 35-220 5 Nm 5 lbfft 529 30 17.5 617 - 2.000 1210955 7567-10 s CD A+S 3 4 20.0 80-360 - 60-260 5 Nm 5 lbfft 624 30 22.5 717 - 2.400 1210998 7570-10 CDL A+S 3 4 20.0 80-360 - 60-260 5 Nm 5 lbfft 624 30 22.5 717 - 2.400 1211021 7575-10 s DS A+S 3 4 20.0 110-550 - 80-400 10 Nm 10 lbfft 719 35 22.5 812 - 2.900 1427164 7574-10 DSL A+S 3 4 20.0 110-550 - 80-400 10 Nm 10 lbfft 719 35 22.5 812 - 2.900 1427148 7579-10 S D A+S 3 4 20.0 140-760 - 100-560 10 Nm 10 lbfft 719 35 22.5 812 - 3.200 1210921 7563-10 DL A+S 3 4 20.0 140-760 - 100-560 10 Nm 10 lbfft 719 35 22.5 812 - 3.200 1210971 7568-10 s DR A+S 3 4 20.0 140-760 - 100-560 10 Nm 10 lbfft 1297 35 22.5 812 1413 762 - 5.000 1210912 7563-01 DRL A+S 3 4 20.0 140-760 - 100-560 10 Nm 10 lbfft 1297 35 22.5 812 1413 762 - 5.000 1210963 7568-01 SDXA+S 3 4 20.0 520-1000 - 380-730 10 Nm 10 lbfft 1297 35 22.5 812 1413 762 - 5.600 1211005 7571-01 tDXLA+S 3 4 20.0 520-1000 - 380-730 10 Nm 10 lbfft 1297 35 22.5 812 1413 762 - 5.600 1211048 7576-01 S EK A+S 1 25.0 600-1500 25 Nm 1473 40 30.0 932 1608 925 - 10.800 2311321 7581-01 EKL A+S 1 25.0 600-1500 25 Nm 1473 40 30.0 932 1608 925 - 10.800 2311348 7586-01 s E A+S 1 25.0 750-2000 50 Nm 2218 40 30.0 932 2353 925 745 11.600 1547232 7564-01 EL A+S 1 25.0 750-2000 50 Nm 2218 40 30.0 932 2353 925 745 11.600 1547240 7569-01 S F A+S 1.1 2 40.0 1500-3000 50 Nm 2313 40 35.0 1025 2453 925 745 13.200 1547259 7572-01 282
