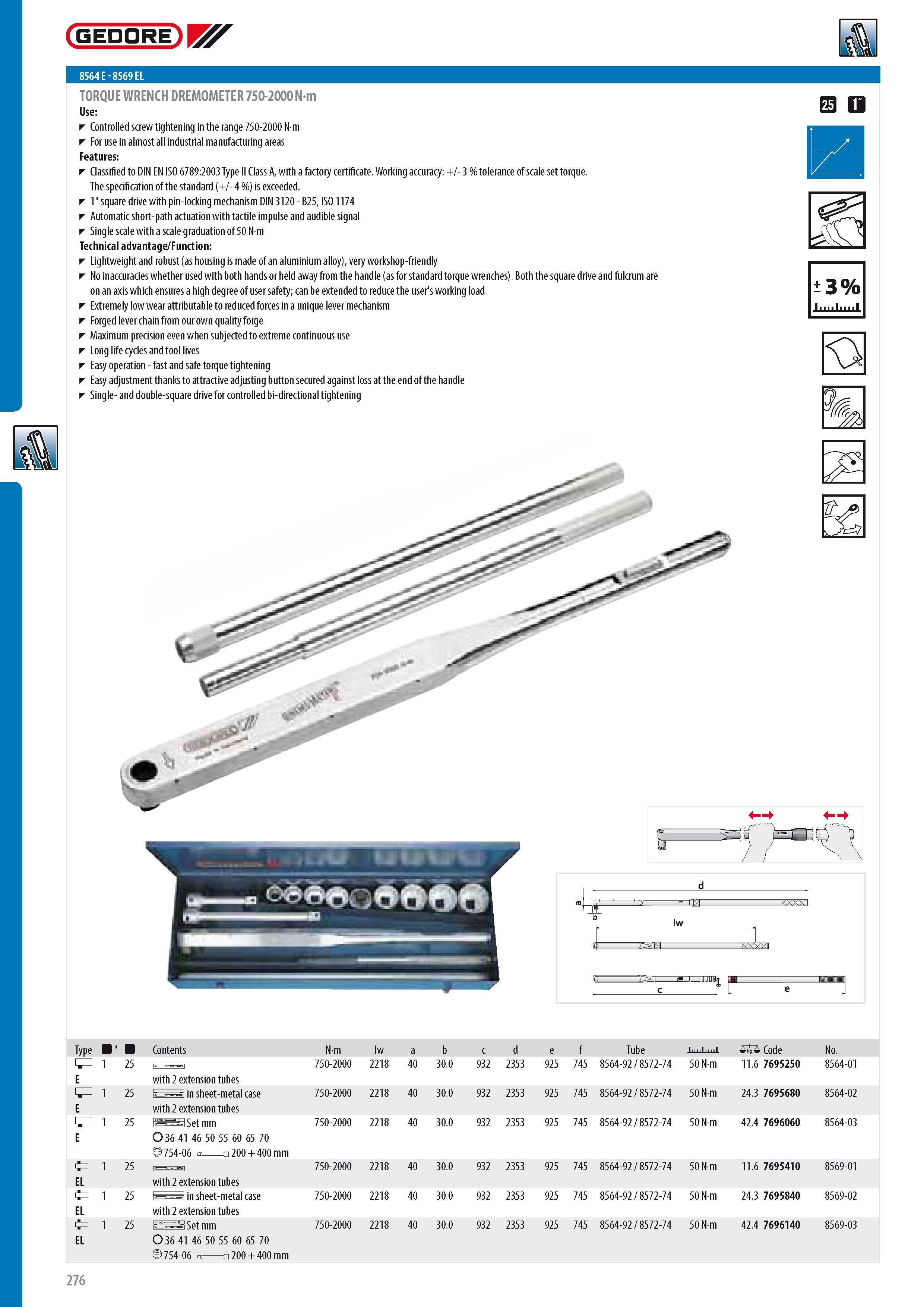

GEDORE 8564 E - 8569 EL TORQUE WRENCH DREMOMETER 750-2000 Nm Controlled screw tightening in the range 750-2000 N m For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1" square drive with pin-locking mechanism DIN 3120 - B25 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Single scale with a scale graduation of 50 N m Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening it V mi r a 3% 11111 & Type " Contents S 1 25 E S 1 25 E s 1 25 E 1 25 EL 1 25 EL 1 25 EL with 2 extension tubes i in sheet-metal case with 2 extension tubes Set mm O36 41 46 50 55 60 65 70 754-06 200 + 400 mm with 2 extension tubes i in sheet-metal case with 2 extension tubes Set mm O 36 41 46 50 55 60 65 70 754-06 200 + 400 mm Nm lw a b c d e f Tube 0 Code No. 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 11.6 7695250 8564-01 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 24.3 7695680 8564-02 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 42.4 7696060 8564-03 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 11.6 7695410 8569-01 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 24.3 7695840 8569-02 750-2000 2218 40 30.0 932 2353 925 745 8564-92 8572-74 50 Nm 42.4 7696140 8569-03 276
