276 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.274

Каталог GEDORE 2014 Слесарный инструмент Стр. 274 0276 ENG Lab2u

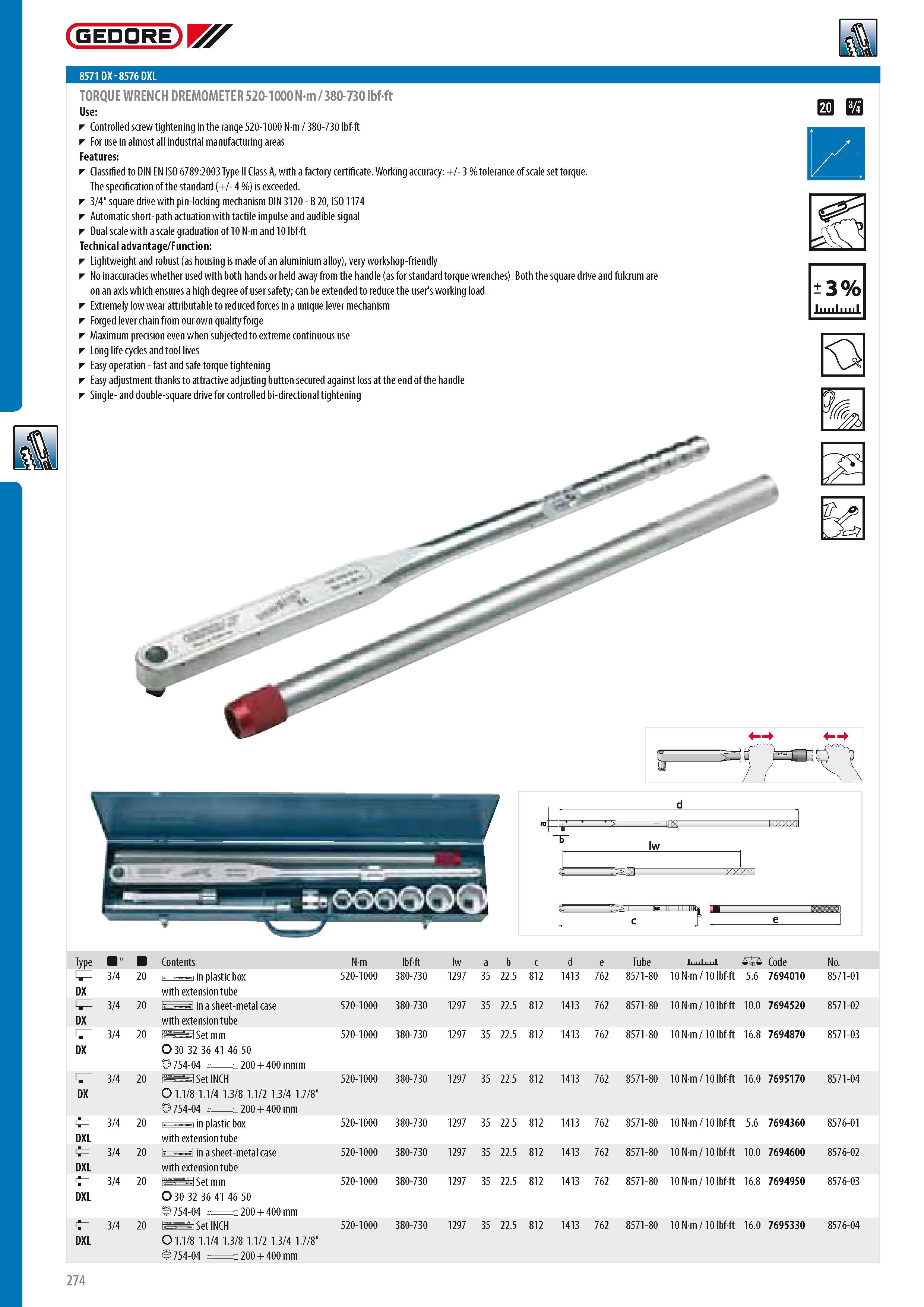

GEDORE 8571 DX - 8576 DXL TORQUE WRENCH DREMOMETER 520-1000 Nm 380-730 lbfft Controlled screw tightening in the range 520-1000 N m 380-730 lbf ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 3 4" square drive with pin-locking mechanism DIN 3120 - B 20 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 10 N m and 10 lbf ft Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening MM p e 3% & Type " Contents Nm lbfft lw a b c d e Tube . 0 Code No. s 3 4 20 . i 520-1000 380-730 1297 35 22.5 812 1413 762 857 -80 10 Nm 10 lbfft 5.6 7694010 8571-01 i" in plastic box DX with extension tube s 3 4 20 520-1000 380-730 1297 35 22.5 812 1413 762 857 10 Nm 10 lbfft 10.0 7694520 8571-02 i in a sheet-metal case 1-80 DX with extension tube s 3 4 20 520-1000 380-730 1297 35 22.5 812 1413 762 857 10 Nm 10 lbfft 16.8 7694870 8571-03 Set mm 1-80 DX O 30 32 36 41 46 50 754-04 - 200 + 400 mmm s 3 4 20 o 0 a 6 If .i III -i 1 520-1000 380-730 1297 35 22.5 812 1413 762 857 10 Nm 10 lbfft 16.0 7695170 8571-04 Set INtH 1-80 DX O 1.1 8 1.1 4 1.3 8 1.1 2 1.3 4 1.7 8" 754-04 200 + 400 mm 3 4 20 i 520-1000 380-730 1297 35 22.5 812 1413 762 857 1-80 10 Nm 10 lbfft 5.6 7694360 8576-01 i" " "i in plastic box DXL with extension tube 3 4 20 520-1000 380-730 1297 35 22.5 812 1413 762 857 10 Nm 10 lbfft 10.0 7694600 8576-02 i in a sheet-metal case 1-80 DXL with extension tube 3 4 20 520-1000 380-730 1297 35 22.5 812 1413 762 857 10 Nm 10 lbfft 16.8 7694950 8576-03 Set mm 1-80 DXL O 30 32 36 41 46 50 754-04 200 + 400 mm 3 4 20 o o .6 If .i IH -II 520-1000 380-730 1297 35 22.5 812 1413 762 857 1-80 10 Nm 10 lbfft 16.0 7695330 8576-04 i Set INCH DXL O1.1 8 1.1 4 1.3 8 1.1 2 1.3 4 1.7 8" 754-04 . 200 + 400 mm 274
