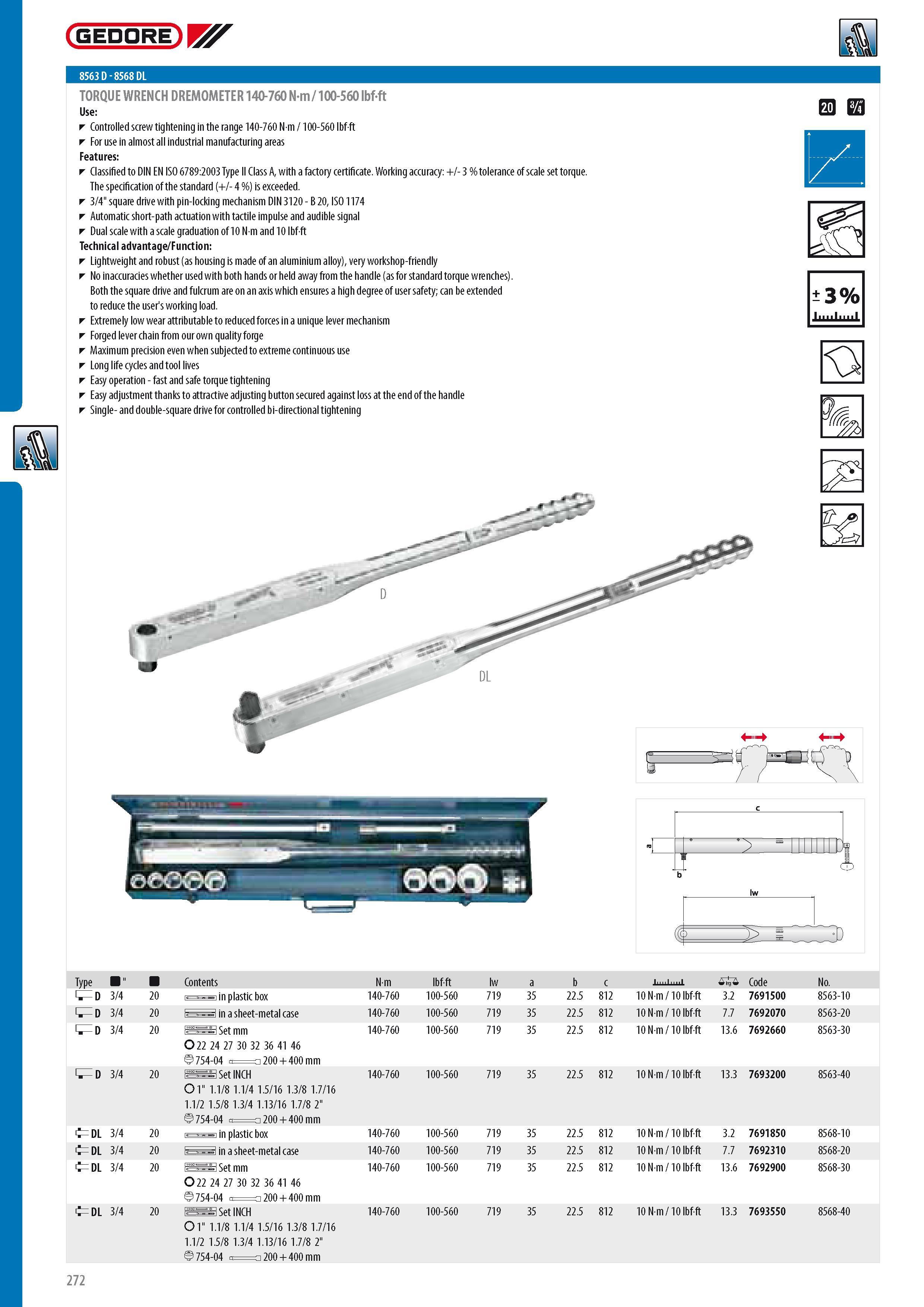

GEDORE 8563 D - 8568 DL TORQUE WRENCH DREMOMETER 140-760 N-m 100-560 lbf-ft Controlled screw tightening in the range 140-760 N m 100-560 lbf-ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 3 4" square drive with pin-locking mechanism DIN 3120 - B 20 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 10 N m and 10 lbf-ft Technical advantage Functlon Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening MM p e Is 3% & Type S D S D S D " 3 4 3 4 3 4 Contents S D 3 4 DL 3 4 DL 3 4 DL 3 4 DL 3 4 20 in plastic box 20 i i in a sheet-metal case 20 Set mm O 22 24 27 30 32 36 41 46 754-04 200 + 400 mm 20 Set INCH O1" 1.1 8 1.1 4 1.5 16 1.3 8 1.7 16 1.1 2 1.5 8 1.3 4 1.13 16 1.7 8 2" 754-04 200 + 400 mm 20 in plastic box 20 i in a sheet-metal case 20 Set mm O 22 24 27 30 32 36 41 46 754-04 200 + 400 mm 20 Set INCH O 1" 1.1 8 1.1 4 1.5 16 1.3 8 1.7 16 1.1 2 1.5 8 1.3 4 1.13 16 1.7 8 2" 754-04 200 + 400 mm Nm lbf-ft lw a b c 0 Code No. 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 3.2 7691500 8563-10 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 7.7 7692070 8563-20 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 13.6 7692660 8563-30 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 13.3 7693200 8563-40 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 3.2 7691850 8568-10 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 7.7 7692310 8568-20 140-760 100-560 719 35 22.5 812 10 Nm 10 lbf-ft 13.6 7692900 8568-30 140-760 100-560 719 22.5 812 10 Nm 10 lbf-ft 13.3 7693550 8568-40 35 272
