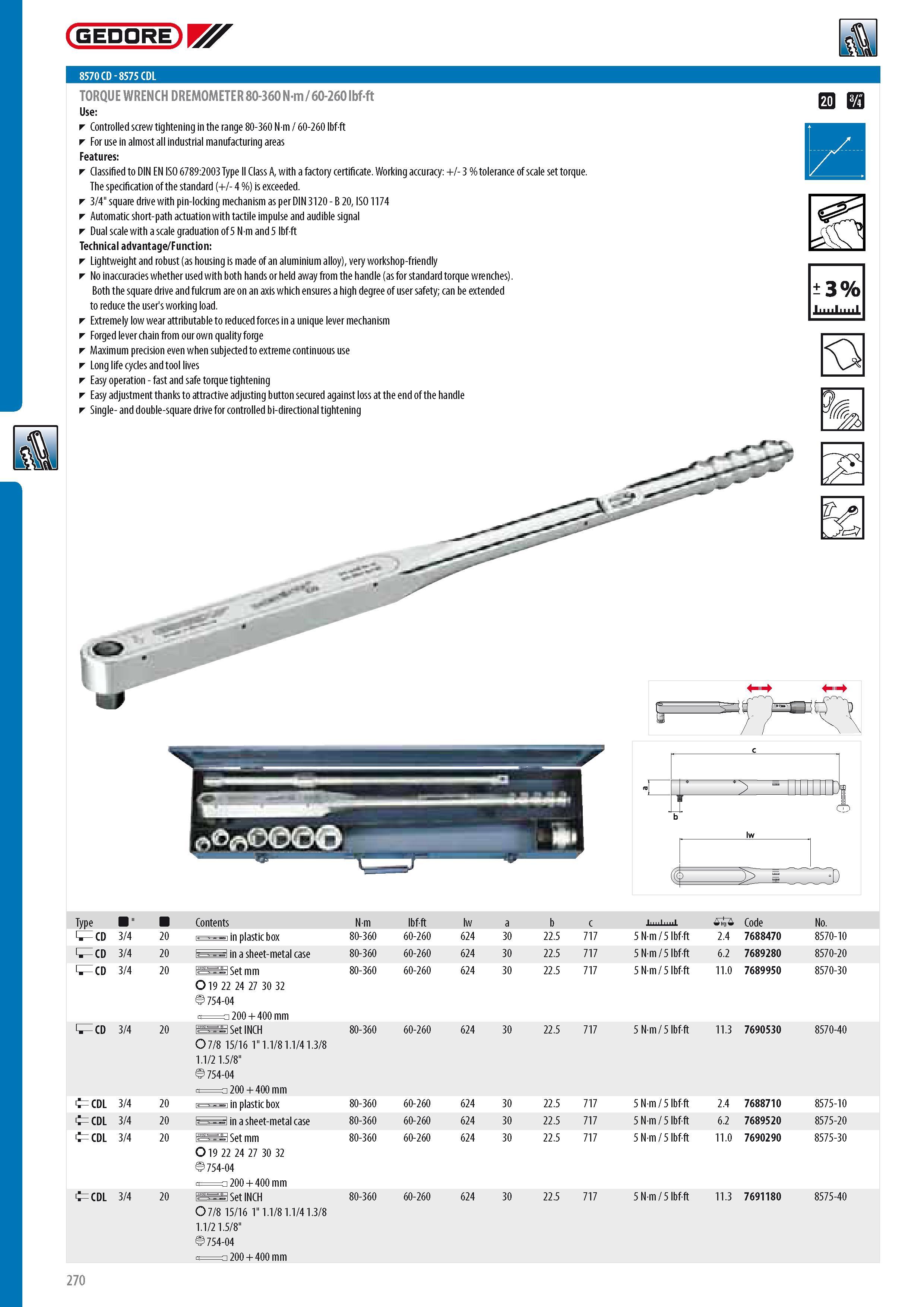

GEDORE 8570 CD - 8575 CDL TORQUE WRENCH DREMOMETER 80-360 N-m 60-260 lbf-ft Controlled screw tightening in the range 80-360 N m 60-260 lbf-ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 3 4" square drive with pin-locking mechanism as per DIN 3120 - B 20 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 5 lbf-ft Technical advantage Functlon Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening p e 3% ImmImmI & i Type " S CD 3 4 S CD 3 4 S CD 3 4 S CD 3 4 Contents CDL CDL CDL 3 4 3 4 3 4 CDL 3 4 20 in plastic box 20 i i in a sheet-metal case 20 Set mm O19 22 24 27 30 32 754-04 q - 200 + 400 mm 20 Set INCH O7 8 15 16 1"1.1 81.1 4 1.3 8 1.1 2 1.5 8" 754-04 200 + 400 mm 20 in plastic box 20 i i in a sheet-metal case 20 Set mm O 19 22 24 27 30 32 754-04 q 200 + 400 mm 20 Set INCH O7 8 15 16 1" 1.1 8 1.1 4 1.3 8 1.1 2 1.5 8" 754-04 q 200 + 400 mm Nm lbf-ft lw a b c 0 Code No. 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 2.4 7688470 8570-10 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 6.2 7689280 8570-20 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 11.0 7689950 8570-30 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 11.3 7690530 8570-40 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 2.4 7688710 8575-10 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft .2 6. 7689520 8575-20 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 11.0 7690290 8575-30 80-360 60-260 624 30 22.5 717 5 Nm 5 lbf-ft 11.3 7691180 8575-40 270
