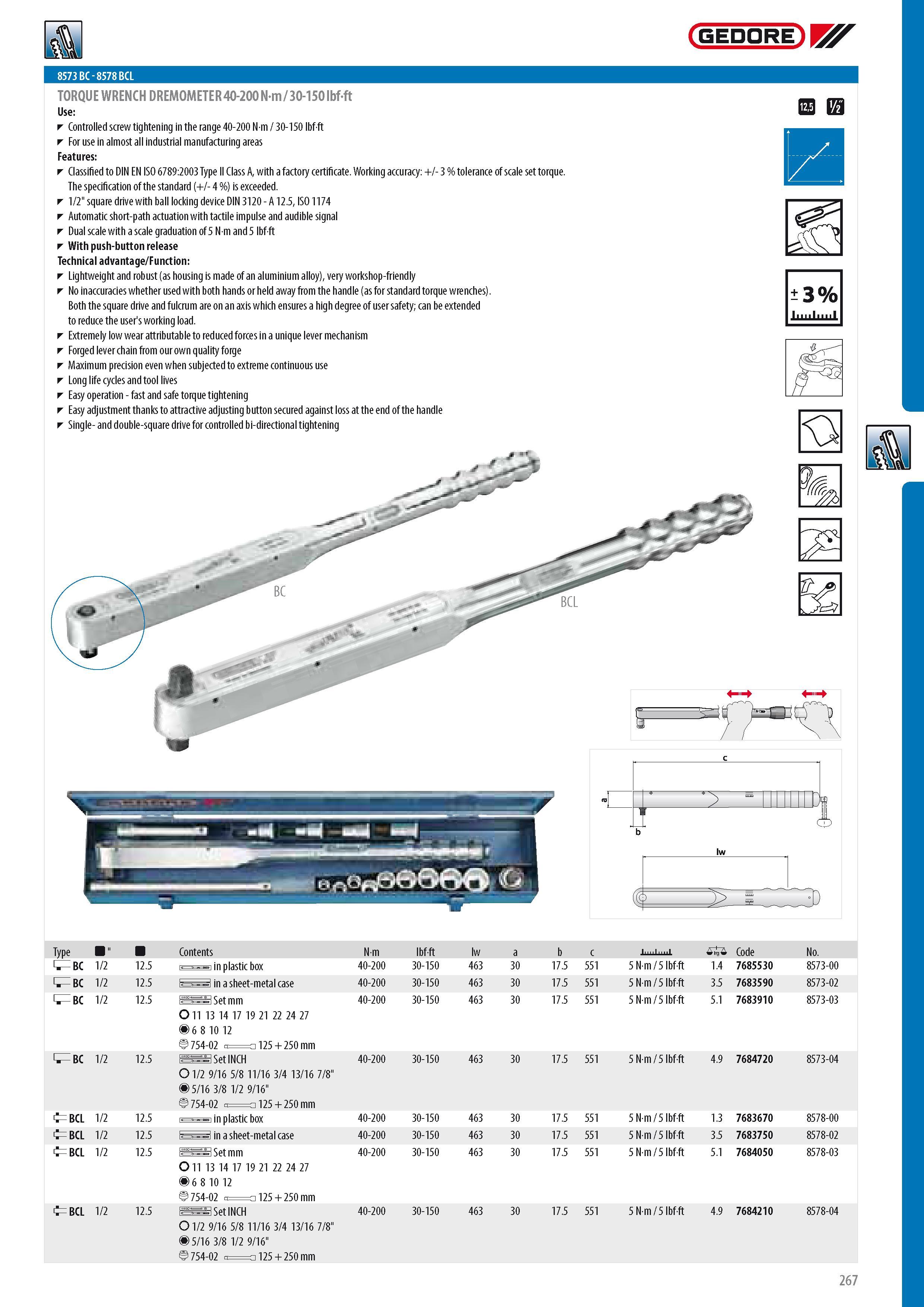

8573 BC - 8578 BCL TORQUE WRENCH DREMOMETER 40-200 N-m 30-150 lbf-ft Controlled screw tightening in the range 40-200 N m 30-150 lbf-ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1 2" square drive with ball locking device DIN 3120 - A 12.5 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 5 lbf-ft With push-button release Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening 1 ' GEDORE o d Is 3% & J i P i Type " S BC 1 2 S BC 1 2 S BC 1 2 S BC 1 2 BCL 1 2 BCL 1 2 BCL 1 2 BCL 1 2 Contents 12.5 in plastic box 12.5 i i in a sheet-metal case 12.5 Set mm O11 13 14 17 19 21 22 24 27 5 6 8 10 12 754-02 125 + 250 mm 12.5 Set INCH O1 2 9 16 5 8 11 16 3 4 13 16 7 8" 55 16 3 8 1 2 9 16" 754-02 125 + 250 mm 12.5 in plastic box 12.5 i in a sheet-metal case 12.5 Set mm O11 13 14 17 19 21 22 24 27 5 6 8 10 12 754-02 125 + 250 mm 12.5 Set INCH O 1 2 9 16 5 8 11 16 3 4 13 16 7 8" 5 5 16 3 8 1 2 9 16" 754-02 125 + 250 mm Nm lbf-ft lw a b c 0 Code No. 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 1.4 7685530 8573-00 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 3.5 7683590 8573-02 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 5.1 7683910 8573-03 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 4.9 7684720 8573-04 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 1.3 7683670 8578-00 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 3.5 7683750 8578-02 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 5.1 7684050 8578-03 40-200 30-150 463 30 17.5 551 5 Nm 5 lbf-ft 4.9 7684210 8578-04 267
