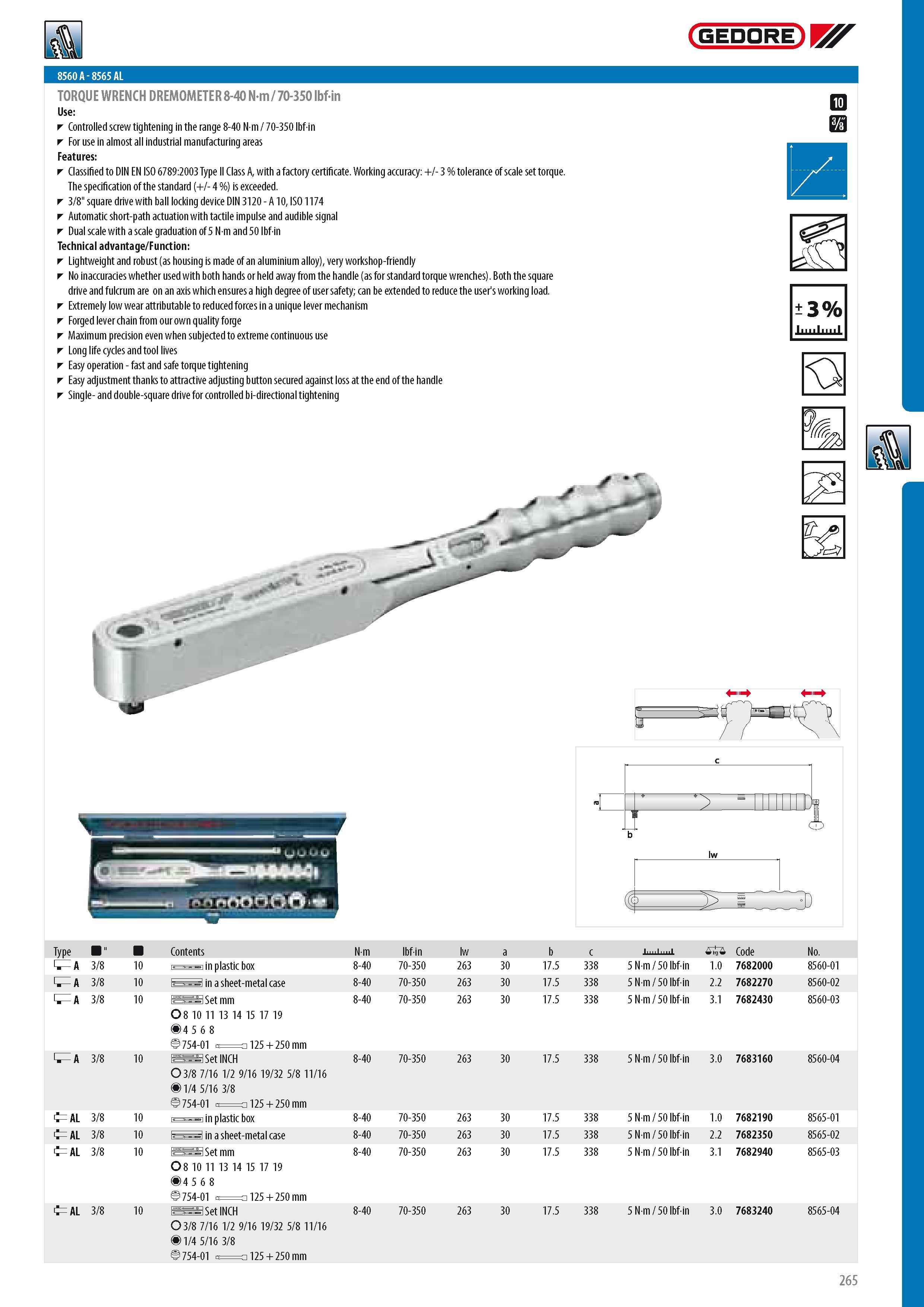

GEDORE 8560 A - 8565 AL TORQUE WRENCH DREMOMETER 8-40 N-m 70-350 ibfin Controlled screw tightening in the range 8-40 N m 70-350 lbfin For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 3 8" square drive with ball locking device DIN 3120 - A 10 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 50 lbfin Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening n c 3% ImmImmI & f Type ' S A 3 8 S A 3 8 S A 3 8 AL AL AL 3 8 3 8 3 8 AL 3 8 10 10 10 10 10 in plastic box in a sheet-metal case Set mm O8 10 11 13 14 15 17 19 5 4 5 6 8 754-01 125 + 250 mm Set INCH O3 8 7 16 1 2 9 16 19 32 5 8 11 16 5 1 4 5 16 3 8 754-01 125 + 250 mm in plastic box i in a sheet-metal case Set mm O 8 10 11 13 14 15 17 19 5 4 5 6 8 754-01 125 + 250 mm Set INCH O 3 8 7 16 1 2 9 16 19 32 5 8 11 16 5 1 4 5 16 3 8 754-01 125 + 250 mm If Nm lbfin lw a b c 0 Code No. 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 1.0 7682000 8560-01 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 2.2 7682270 8560-02 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 3.1 7682430 8560-03 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 3.0 7683160 8560-04 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 1.0 7682190 8565-01 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 2.2 7682350 8565-02 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 3.1 7682940 8565-03 8-40 70-350 263 30 17.5 338 5 Nm 50 lbfin 3.0 7683240 8565-04 265
